700 DB - Paramount Edger, Electric BRUSH ASSEMBLY Parts Diagram

Edger, Electric

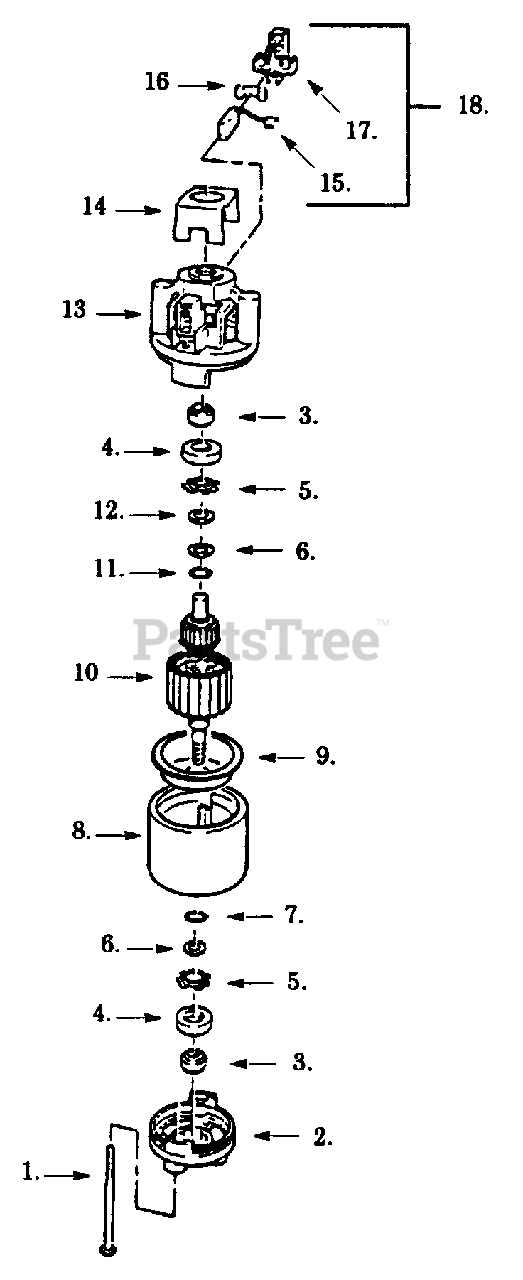

BRUSH ASSEMBLY Parts Diagram

  • Title

1

Poulan 534228700

Screw

$

$

Not available

2

Poulan 534227600

Endbell Output

$

$

Not available

3

Poulan 534227001

Field Ass'y.

$

$

Not available

4

Poulan 534213700

Bearing

$

$

Not available

5

Poulan 534228600

Oiler

$

$

Not available

6

Poulan 534228500

Bearing Retainer

$

$

Not available

7

Poulan 534228800

Washer

$

$

Not available

8

Poulan 534747002

Retaining Ring

$

$

Not available

9

Poulan 534298700

Air Deflector

$

$

Not available

10

Poulan 534225120

Armature

$

$

Not available

11

Poulan 534246700

Retainer Ring

$

$

Not available

12

Poulan 534238903

Washer

$

$

Not available

13

Poulan 534227501

Endbell (Brush)

$

$

Not available

14

Poulan 534226000

Insulator

$

$

Not available

15

Poulan 534227800

Brush

$

$

Not available

16

Poulan 534228000

Spring

$

$

Not available

17

Poulan 534227700

Brush Holder

$

$

Not available

18

Poulan 534450400

Brush Kit (Incl. 15,16,17)

$

$

Not available
