700 DRT (960930005-02) - Husqvarna Rear-Tine Tiller, CARB (2009-01) Mainframe, Right Side Parts Diagram

Rear-Tine Tiller, CARB

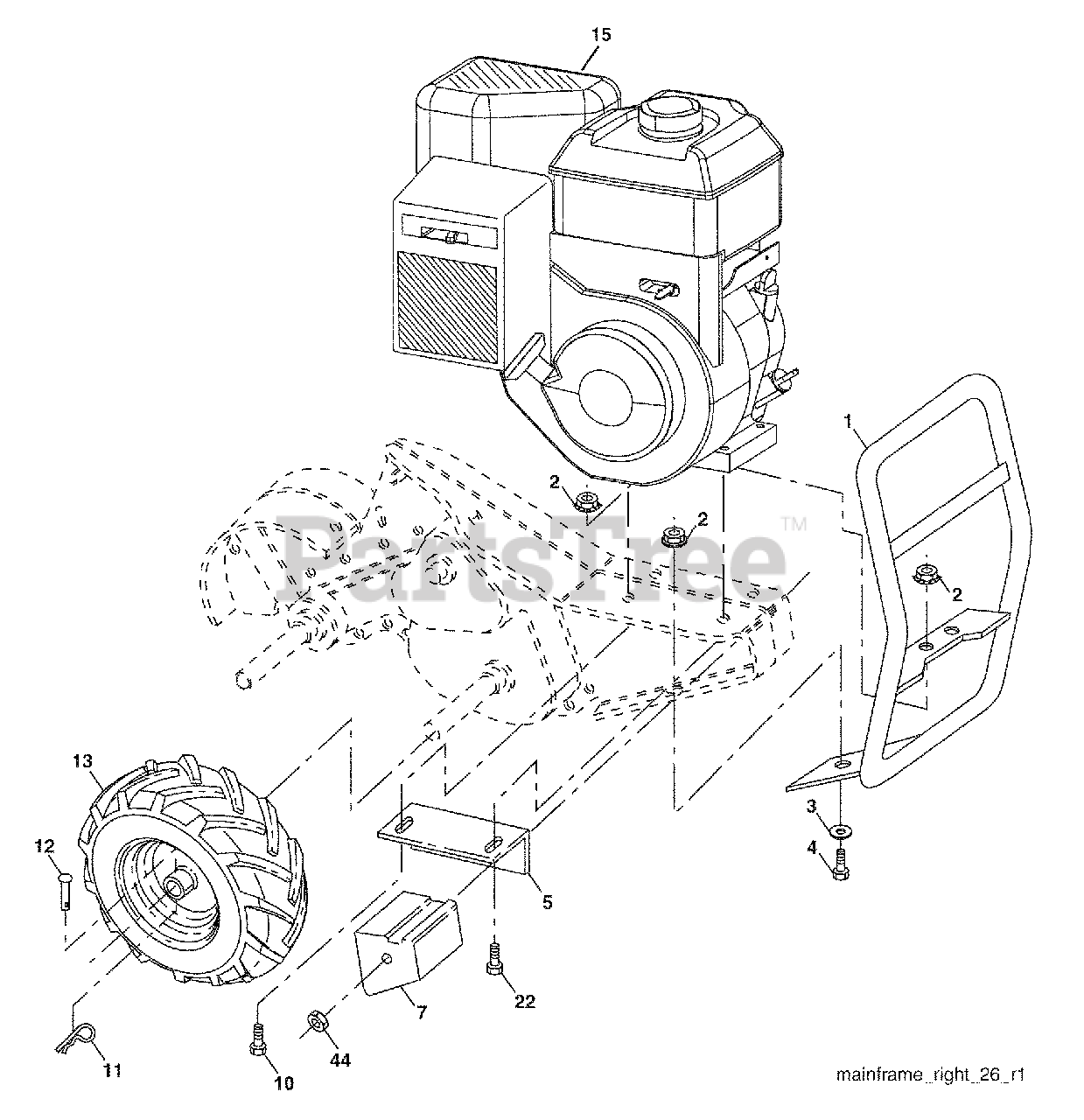

Mainframe, Right Side Parts Diagram

  • Title

1

Husqvarna 532185190

Bumper Asm.
(Superseded to 583879301)

$

$

Not available

2

Husqvarna 873970500

Locknut, Hex, Flange 5/16-
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

Washer 11/32 x 11/16 x 16
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

Bolt 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532102332

Bracket, Reinforcement
(Superseded to 581864701)

$

$

Not available

7

Husqvarna 532102173

Counter Weight, RH

$42.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874760524

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

12

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 532102190

Tire

$93.99

$

Usually ships in 3-10 days

0

Husqvarna 532150740

Rim

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

15

Engine, Briggs & Stratton Model No. 157202

Note: (Order parts from Engine Manufacturer)

$

$

Not available

22

Husqvarna 874760528

Bolt 5/16-18 x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873510600

Nut, Keps, Hex 3/8-16 unc

$6.49

$

Usually ships in 3-10 days

0
