70041 (8-25) - Toro Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

Rear-Engine Riding Mower

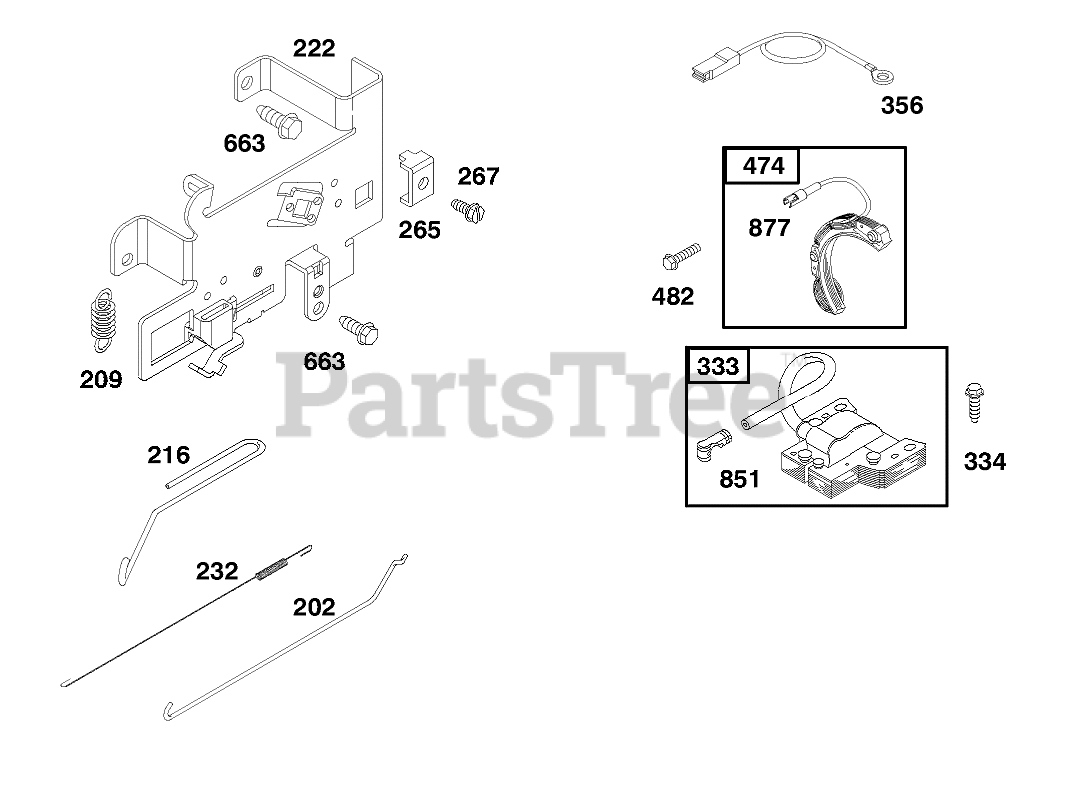

ENGINE BRIGGS & STRATTON MODEL 195707-0421-E1 Parts Diagram

  • Title

202

Briggs & Stratton 262769

Link-Governor
(Superseded to 693663)

$

$

Not available

209

Briggs & Stratton 260871

Spring-Governor
(Superseded to 792602)

$3.99

$

In Stock, Qty 10

0

216

Briggs & Stratton 262768

Link-Choke
(Superseded to 690573)

$9.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 495611

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 8

0

232

Briggs & Stratton 262787

Spring-Link
(Superseded to 693663)

$

$

Not available

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 94906

Screw-Sem
(Superseded to 690804)

$

$

Not available

333

Briggs & Stratton 398811

Armature Group

$66.99

$

In Stock, Qty 5

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$12.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$137.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 94929

Screw
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393814

Diode Assy.

$19.99

$

In Stock, only 2 left!

0
