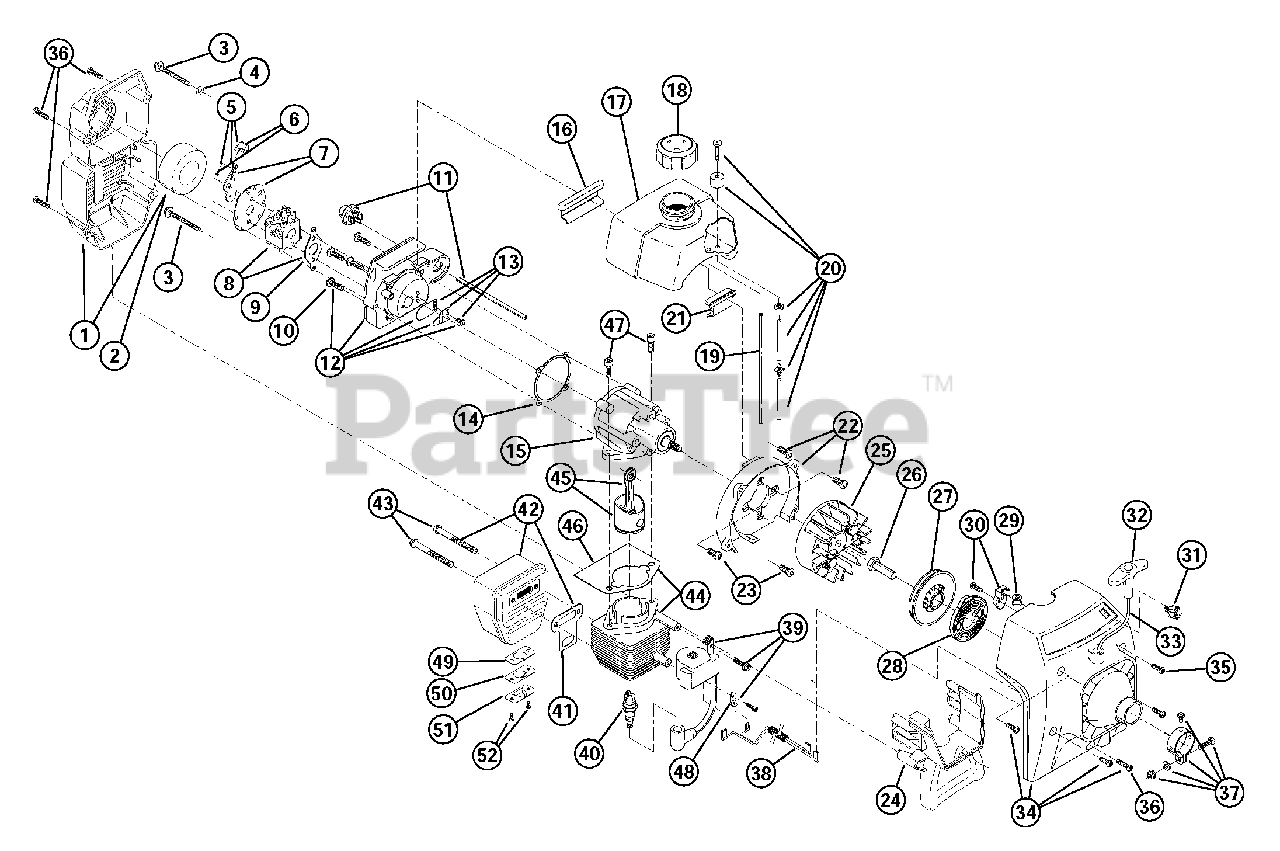

700r (41AD700G734) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04105

Air Cleaner/Muffler Cover Assembly

Note: (Includes 2 & 36)

$

$

Not available

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182061

Choke Lever Assembly
(Superseded to 753-04418)

Note: (Includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182060

Choke Lever and Plate
(Superseded to 753-04419)

Note: (Includes 5 & 6)

$

$

Not available

8

MTD 753-04106

Carburetor Assembly

Note: (Includes 9 & 20)

$69.99

$

In Stock, only 3 left!

0

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (Includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 791-181865

Crank Case Service Assembly
(Superseded to 753-04272)

$

$

Not available

MTD 753-04319

No Longer Available CRCASE ASM:W/PSHF:

Note: Includes 10 & 23

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181152

Fuel Tank Assembly

Note: (Includes 18 & 20)

$

$

Not available

18

MTD 791-181795

Fuel Cap Assembly

$

$

Not available

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

Note: (Includes 23)

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

26

MTD 791-610303

Square Nut Drive

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

31

MTD 753-04241

Switch Assembly

Note: (Includes 38)

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

34

MTD 753-04300

Starter Housing Assembly

Note: (Includes 27-33, 35 & 36)

$

$

Not available

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

37

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

38

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$8.49

$

Usually ships in 3-6 days

0

39

MTD 753-04109

Module Assembly

$

$

Not available

40

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

41

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

42

MTD 753-04110

Muffler Assembly

Note: (Includes 41 & 43)

$

$

Not available

43

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

44

MTD 753-04111

Cylinder Assembly
(Superseded to 753-04814)

Note: (Includes 46 & 47)

$78.99

$

In Stock, only 1 left!

0

45

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

46

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

48

MTD 791-611063

Ground Tab

$

$

Not available

49

MTD 753-04312

Spark Arrestor Screen
(Superseded to 797-00006)

$

$

Not available

50

MTD 753-04313

Inner Hood
(Superseded to 753-04110)

$

$

Not available

51

MTD 753-04314

Hood
(Superseded to 753-04110)

$

$

Not available

52

MTD 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

MTD 753-04183

Engine Gasket Kit
(Superseded to 753-04134)

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit

Note: Not Shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04146

Short Block Assembly

Note: (Includes 14, 16, 41, 44-47);

$

$

Not available
