700r (41ADL01G034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

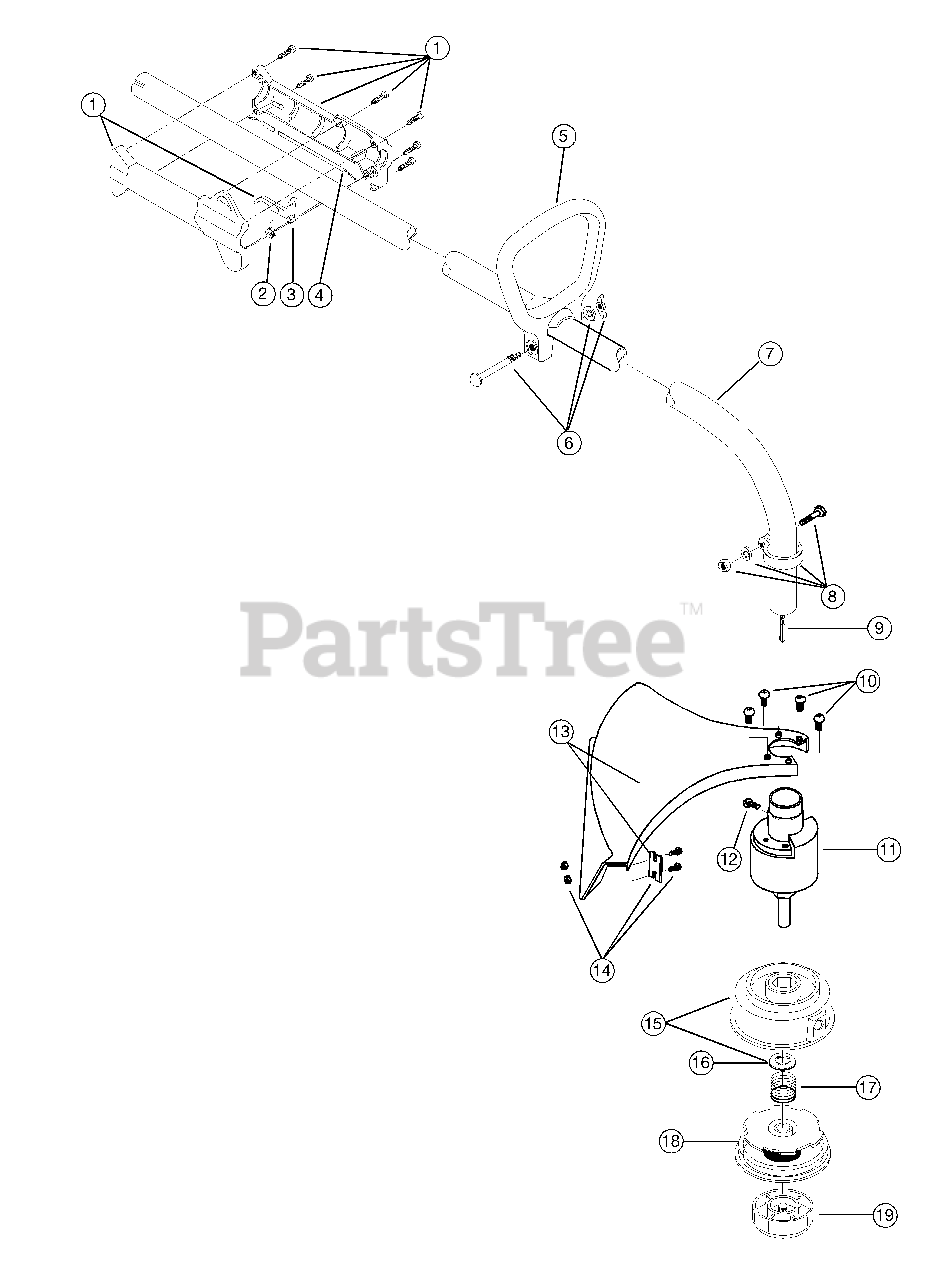

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04279

Throttle Housing & Trigger Assembly

Note: (Incl. Ref No. 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-181807

Throttle Trigger

$9.49

$

In Stock, Qty 9

0

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle Assembly

Note: (Incl. Ref No. 6)

$

$

Not available

6

MTD 791-181587

D-Handle Hardware

$18.99

$

In Stock, only 1 left!

0

7

MTD 791-181893

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

9

MTD 753-04280

Flexible Drive Shaft

$75.99

$

Usually ships in 3-6 days

0

10

MTD 791-181858

Shield Mounting Screw

$

$

Not available

11

MTD 791-181784

Bushing Housing Assembly with Spool Shaft

$

$

Not available

12

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

13

MTD 791-683274

Shield and Blade Assembly

Note: (Incl. Ref No. 14)

$36.99

$

In Stock, only 4 left!

0

14

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

15

MTD 791-153619

Outer Spool Assembly

Note: (Incl. Ref No. 16)

$26.99

$

In Stock, only 1 left!

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

18

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

Replacement Line, 0.80 Diameter

Note: (Optional Accessory;Not Shown)

$

$

Not available

MTD 791-153577B

Reel and Line Assembly

Note: (Optional Accessory;Not Shown)

$26.99

$

In Stock, only 4 left!

0

MTD 791-180897B

Bump Head Assembly

Note: (Optional Accessory;Not Shown)

$69.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: (Optional Accessory;Not Shown)

$36.99

$

Usually ships in 3-6 days

0

MTD 690-000-0001

2-Cycle Oil

Note: (Optional Accessory;Not Shown)

$

$

Not available
