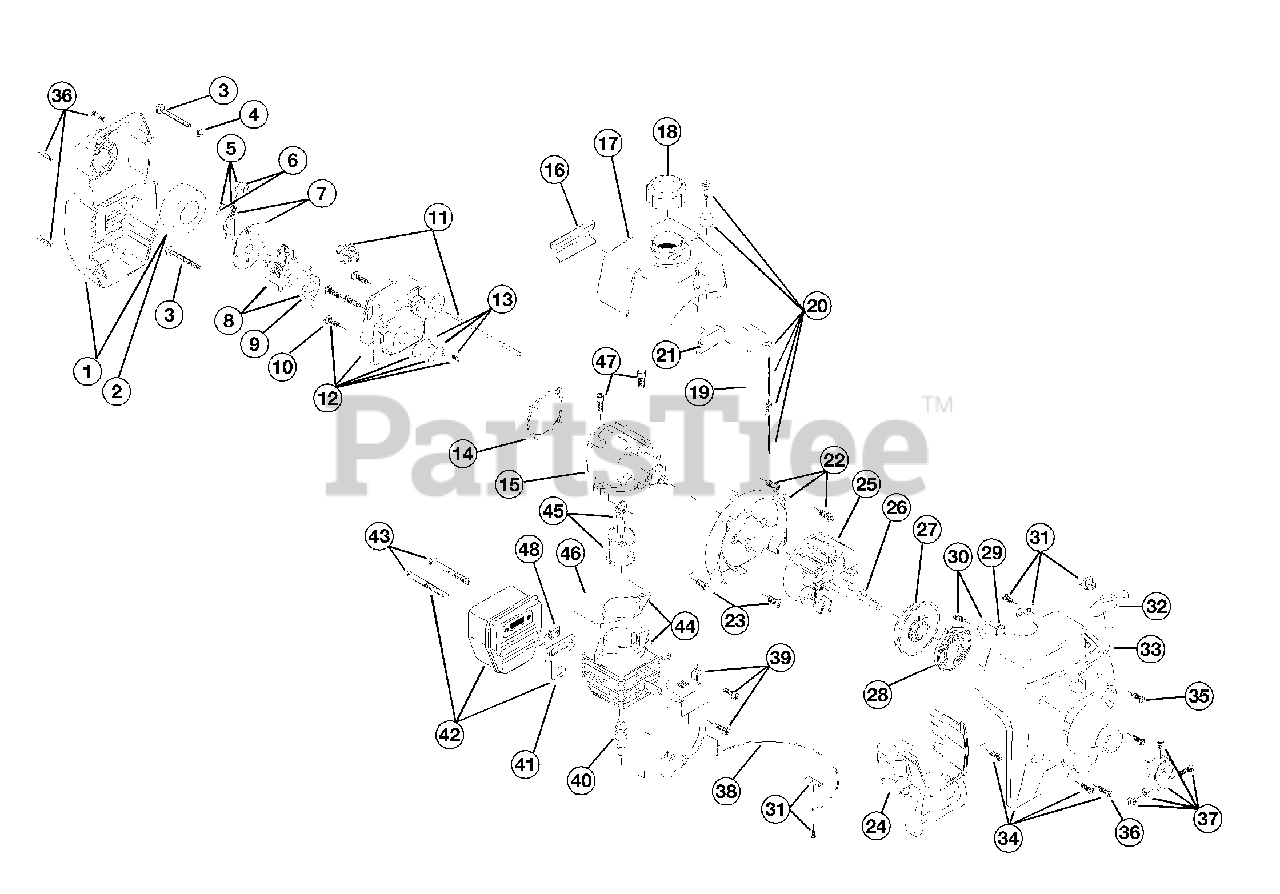

700r (41ADL01G034) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 36)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 13

0

5

MTD 753-04418

Choke Lever Assembly

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182202

Choke Knob and Screw

$14.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Lever and Plate

Note: (includes 5)

$

$

Not available

8

MTD 791-182875

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 753-04272

Crank Case Service Assembly

Note: (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-182767

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$18.99

$

In Stock, Qty 18

0

19

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 753-04611

Shroud Extension and Stand

$

$

Not available

25

MTD 753-05240

Flywheel Assembly

$71.99

$

In Stock, only 3 left!

0

26

MTD 791-610303

Square Nut Drive

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

31

MTD 791-180035

Switch Assembly

Note: NLA

$

$

Not available

32

MTD 631-04164B

Pull Handle

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

34

MTD 791-181927

Starter Housing Assembly

Note: (includes 27-33 & 35) NLA

$

$

Not available

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

37

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

38

MTD 791-180036

Wire Lead

$

$

Not available

39

MTD 753-04125

Module Assembly

$

$

Not available

40

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

41

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

42

MTD 753-05752

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 43 & 48)

$104.99

$

Usually ships in 3-6 days

0

43

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

44

MTD 753-04814

Cylinder Assembly

$78.99

$

In Stock, only 1 left!

0

45

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

46

MTD 791-610674

Cylinder Gasket

$3.99

$

Usually ships in 3-6 days

0

47

MTD 791-181870

Cylinder Bolt

$

$

Not available

48

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

MTD 753-04134

Engine Gasket Kit

Note: (Not Shown)

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: (Not Shown)

$66.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit (Walbro)

Note: (Not Shown)

$36.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: (Not Shown)

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04173

Short Block Assembly

Note: (includes 10, 15, 23, 44-47); Not Shown)

$

$

Not available
