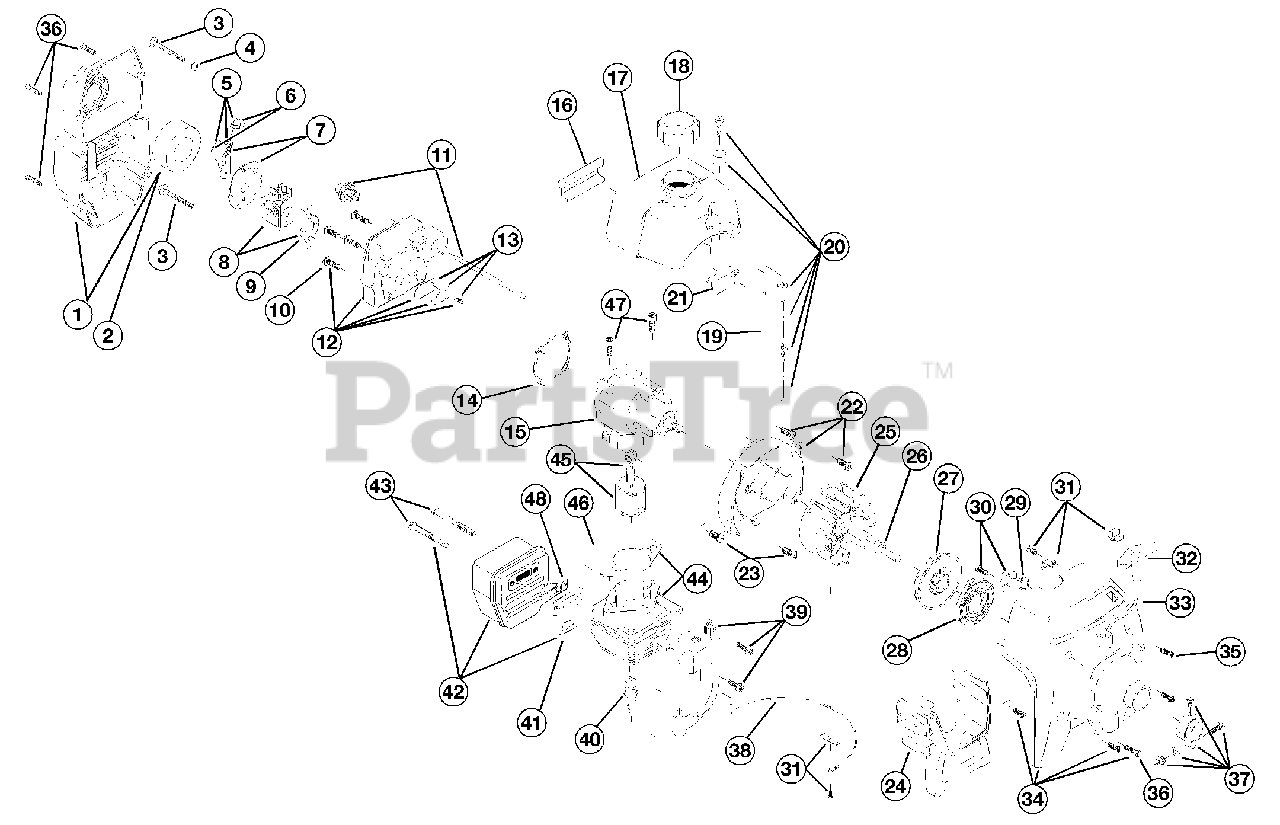

700r (41BD700G034) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 36)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182201

Choke Lever Assembly

Note: (includes 6)

$

$

Currently unavailable

6

MTD 791-182202

Choke Knob and Screw

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182203

Choke Lever and Plate

Note: (includes 5)

$

$

Currently unavailable

8

MTD 791-182875

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 791-612115

Carburetor Mount Gasket
(Superseded to 753-1208)

$15.99

$

In Stock, only 3 left!

0

15

MTD 791-181865

Crank Case Service Assembly
(Superseded to 753-04272)

Note: (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-182767

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$18.99

$

In Stock, Qty 18

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

26

MTD 791-610303

Square Nut Drive

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

31

MTD 791-180035

Switch Assembly

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

34

MTD 791-181927

Starter Housing Assembly

Note: (includes 27-33 & 35)

$

$

Not available

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

37

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

38

MTD 791-180036

Wire Lead

$

$

Not available

39

MTD 791-181937

Module Assembly
(Superseded to 753-04125)

$

$

Not available

40

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

41

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

42

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 43 & 48)

$104.99

$

Usually ships in 3-6 days

0

43

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

44

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

$78.99

$

In Stock, only 1 left!

0

45

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

46

MTD 791-610674

Cylinder Gasket

$3.99

$

Usually ships in 3-6 days

0

47

MTD 791-181870

Cylinder Bolt

$

$

Not available

48

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

MTD 791-182067

Engine Gasket Kit
(Superseded to 753-04134)

Note: Item Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Item Not Shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit (Walbro)

Note: Item Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Item Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04173

Short Block Assembly

Note: (includes 10, 15, 23, 44-47); Item Not Shown

$

$

Not available
