70120 (12-32) - Toro Recycler Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) Briggs Stratton Model No. 286707-0119-01 Parts Diagram

Recycler Rear-Engine Riding Mower

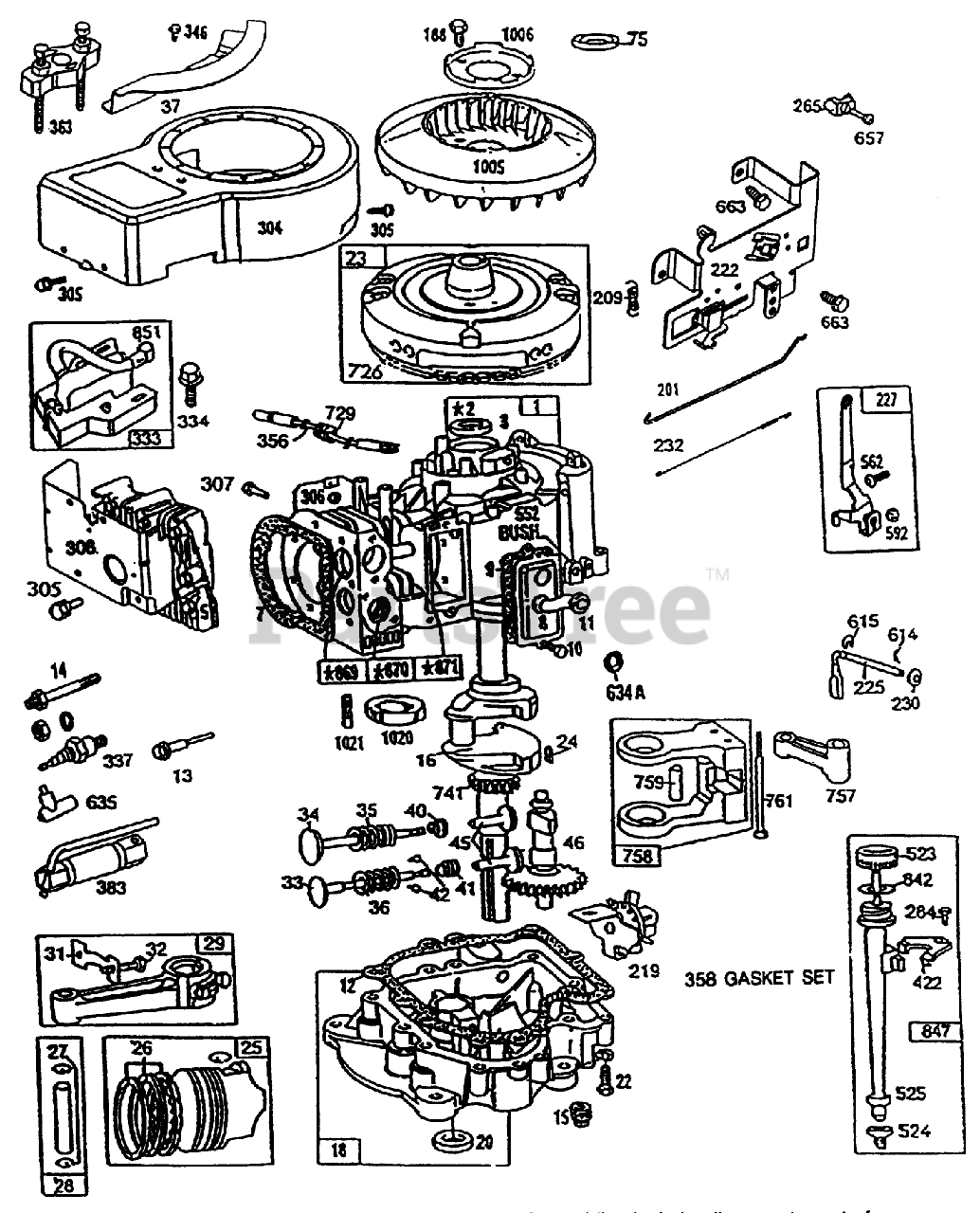

Briggs Stratton Model No. 286707-0119-01 Parts Diagram

  • Title

1

Toro 490450

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

Note: SPECIAL TOOLS REQUIRED TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

$

$

Currently unavailable

5

Toro 494240

Head-Cylinder

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

$

$

Currently unavailable

8

Toro 391406

Assembly-Breather

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 280100

Tube-Breather

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: PISTON RING SETS (Note: For Chrome Ring Set Standard Size, Order No. 392331)

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: PISTON RING SETS (Note: For Chrome Ring Set Standard Size, Order No. 392331)

$

$

Currently unavailable

13

Toro 94622

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93781

Stud

$

$

Currently unavailable

Toro 90366

Lockwasher

Note: Used in Ref. No. 14

$

$

Currently unavailable

Toro 93203

Nut

Note: Used in Ref. No. 14

$

$

Currently unavailable

Toro 231109

Spacer

Note: Used in Ref. No. 14

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

16

Toro 490466

Crankshaft

$

$

Currently unavailable

Toro 94196

Key-Timing

$

$

Currently unavailable

18

Toro 494238

Base-Engine

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

$

$

Currently unavailable

22

Toro 94624

Screw-Sem

$

$

Currently unavailable

23

Toro 492326

Flywheel

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 394661

Piston Assy-Std.

$

$

Currently unavailable

Toro 394662

Piston Assy-.010" O.S.

$

$

Currently unavailable

Toro 394663

Piston Assy-.020" O.S.

$

$

Currently unavailable

Toro 394664

Piston Assy-.030" O.S.

$

$

Currently unavailable

26

Toro 391780

Ring Set (Std.)

Note: PISTON RING SETS (Note: For Chrome Ring Set Standard Size, Order No. 392331)

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

$

$

Currently unavailable

Toro 391783

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 490348

Rod-Connecting

$

$

Currently unavailable

31

Toro 222299

Lock-Screw
(Superseded to 147567)

$

$

Not available

32

Toro 92909

Screw-Conn. Rod

$

$

Currently unavailable

33

Toro 262246

Valve-Exhaust

$

$

Currently unavailable

34

Toro 262247

Valve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

37

Toro 223752

Guard-Flywheel

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 262248

Tappet

$

$

Currently unavailable

46

Toro 212897

Gear-Cam

$

$

Currently unavailable

75

Toro 224061

Washer

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

201

Toro 262767

Choke Link

$

$

Currently unavailable

209

Toro 260871

Spring-Governor

$

$

Currently unavailable

219

Toro 490815

Gear-Governor

$

$

Currently unavailable

222

Toro 493896

Plate-Gov. Plate

$

$

Currently unavailable

225

Toro 231058

Crank-Governor

$

$

Currently unavailable

227

Toro 493935

Lever-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

232

Toro 262785

Spring-Link

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

284

Toro 94419

Screw

$

$

Currently unavailable

304

Toro 494269

Housing-Blower

$

$

Currently unavailable

305

Toro 94619

Screw-Sem

$

$

Currently unavailable

306

Toro 224545

Shield-Cylinder

$

$

Currently unavailable

307

Toro 94623

Screw-Self Tap

$

$

Currently unavailable

308

Toro 491490

Cover-Cylinder Head

$

$

Currently unavailable

333

Toro 492341

Armature-Magneto

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

356

Toro 494328

Wire-Stop

$

$

Currently unavailable

358

Toro 494241

Gasket Set (Incl. Ref. #537 883)

$

$

Currently unavailable

363

Toro 19203

Puller-Flywheel

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

422

Toro 224390

Clamp-Oil Fill

$

$

Currently unavailable

523

Toro 490327

Dipstick

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 280741

Tube-Oil Filler

$

$

Currently unavailable

552

Toro 231597

Nut-Hex.

$

$

Not available

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

634A

Toro 491323

Seal-Oil

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

663

Toro 94620

Screw

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

729

Toro 281159

Clip-Wire

$

$

Currently unavailable

741

Toro 262135

Gear-Timing

$

$

Currently unavailable

757

Toro 212359

Link-Counterweight

$

$

Currently unavailable

758

Toro 399891

Counterweight

$

$

Currently unavailable

759

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

761

Toro 93875

Screw

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 490474

Cam-Dog

$

$

Currently unavailable

8 51

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

Note: SPECIAL TOOLS REQUIRED TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Currently unavailable

870

Toro 213316

CG7024 TWO WHEEL TR

Note: SPECIAL TOOLS REQUIRED TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$3.23

$

Usually ships in 3-6 days

0

871

Toro 261961

Manual-Owner's

Note: SPECIAL TOOLS REQUIRED TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Currently unavailable

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

1005

Toro 280687

Retainer

$

$

Currently unavailable

1006

Toro 223726

Screw

$

$

Currently unavailable

1020

Toro 262243

Eccentric

$

$

Currently unavailable

1021

Toro 94160

Pin-Ecentric

$

$

Currently unavailable

Toro 494241

Gasket Set (Incl. Ref. #537 883)

Note: Not illustrated

$

$
