70122 (8-25) - Toro Rear-Engine Riding Mower (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 195707-0421-E1 8 Parts Diagram

Rear-Engine Riding Mower

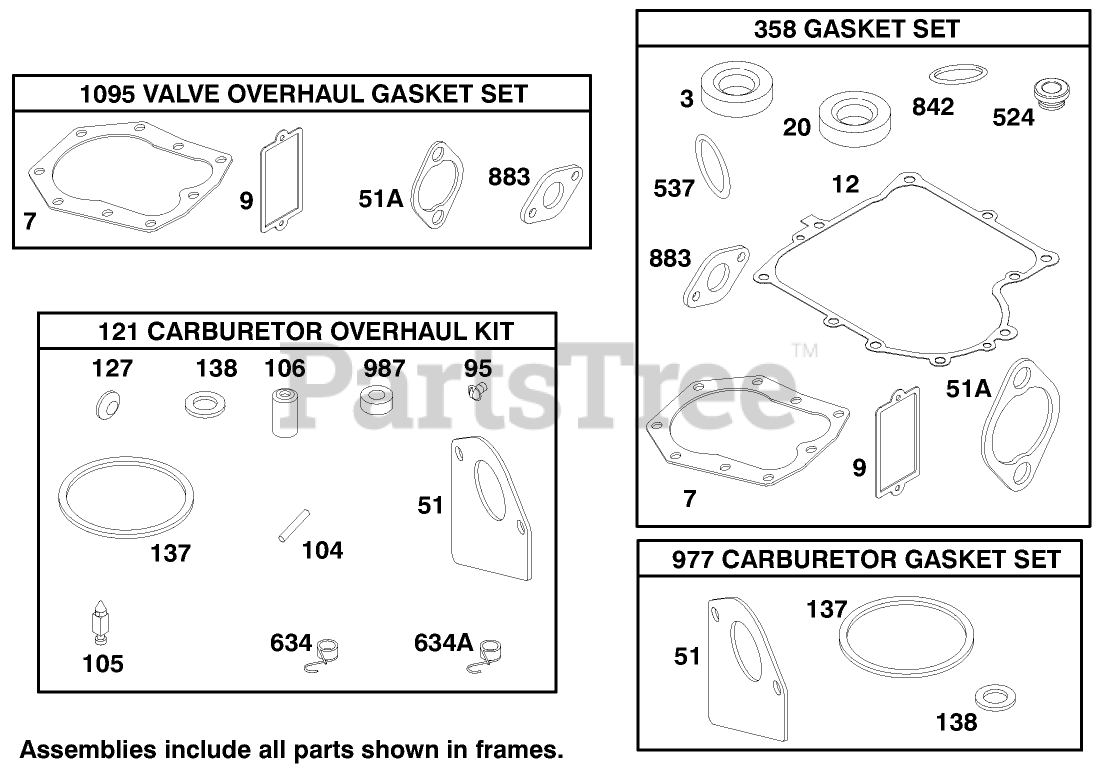

Engine Briggs Stratton Model 195707-0421-E1 8 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

7

Toro 272163

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

7

Toro 272163

Gasket-Cylinder Hd.

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

12

Toro 271701

Gasket-Crankcase Cover 1/64" thick

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

Toro 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

Toro 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577.

$3.23

$

Usually ships in 3-6 days

0

20

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

121

Toro 497535

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch Note: Sold in Kit Only.

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

358

Toro 299577

Gasket Set

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

537

Toro 281106

O-Ring

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

634

Toro 494453

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

634A

Toro 494455

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No. 497535.

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

883

Toro 272309

Gasket-Exhaust

Note: Included in Valve Overhaul Gasket Set-Part No. 498536.

$

$

Currently unavailable

883

Toro 272309

Gasket-Exhaust

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

1095

Toro 498536

Gasket Set-Valve Overhaul

$

$

Currently unavailable
