70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

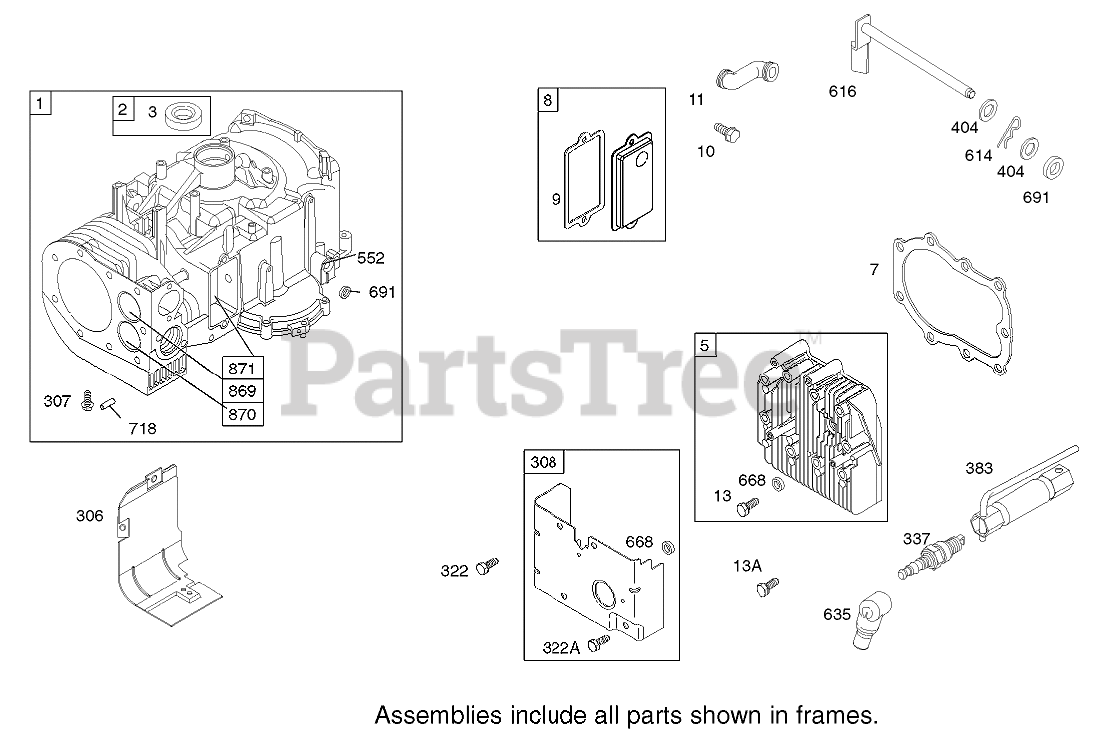

CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

  • Title

1

Briggs & Stratton 496413

Cylinder Assembly

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

In Stock, Qty 18

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Valve Gasket Set-Ref. 1095.

$9.49

$

In Stock, Qty 18

0

8

Briggs & Stratton 495735

Breather ASM

$63.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw-Hex.

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691328

Breather Tube

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 691681

Screw (Cylinder Head Cover)

$8.49

$

In Stock, only 1 left!

0

13A

Briggs & Stratton 690904

Screw (Cylinder Head)

$11.99

$

In Stock, Qty 6

0

306

Briggs & Stratton 690459

Cylinder Shield
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 491490

Cover-Cylinder Head
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

322

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

322A

Briggs & Stratton 691681

Screw (Cylinder Head Cover)

$8.49

$

In Stock, only 1 left!

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

404

Briggs & Stratton 691691

Washer

$3.99

$

In Stock, Qty 5

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

$

$

Not available

614

Briggs & Stratton 691620

Pin-Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

$13.99

$

In Stock, only 4 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 13

0

668

Briggs & Stratton 690510

Spacer

$6.49

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 11

0

718

Briggs & Stratton 690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 691802

Valve Seat (Intake)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 691844

Valve Seat (Exhaust)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 231218

Guide-Valve

$14.99

$

In Stock, only 2 left!

0
