70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) Gasket Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

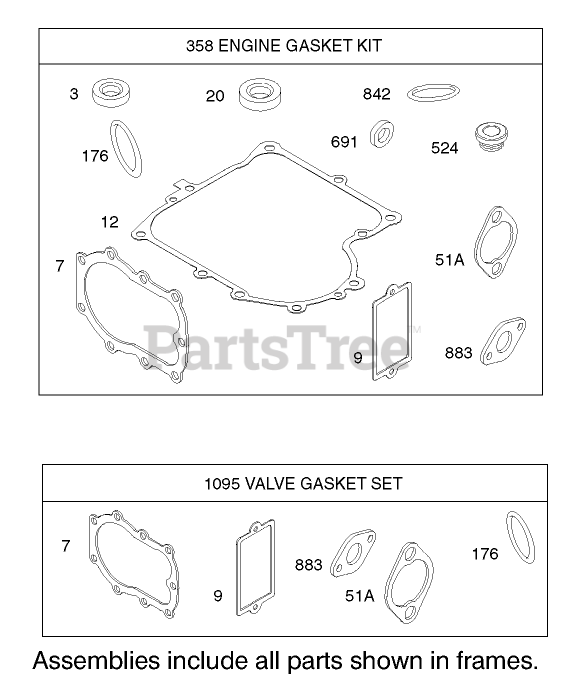

Gasket Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

12

Toro 692226

Crankcase Gasket (.015 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 692406

Crankcase Gasket (.005 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 692405

Crankcase Gasket (.009 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

176

Toro 691917

Seal-O Ring

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

176

Toro 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

358

Toro 494241

Gasket Set (Incl. Ref. #537 883)

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

691

Toro 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

842

Toro 691870

O Ring Seal (Dipstick Tube)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

883

Toro 692236

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

883

Toro 692236

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

1095

Toro 498539

Valve Gasket Set

$

$

Currently unavailable
