70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) Carburetor Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

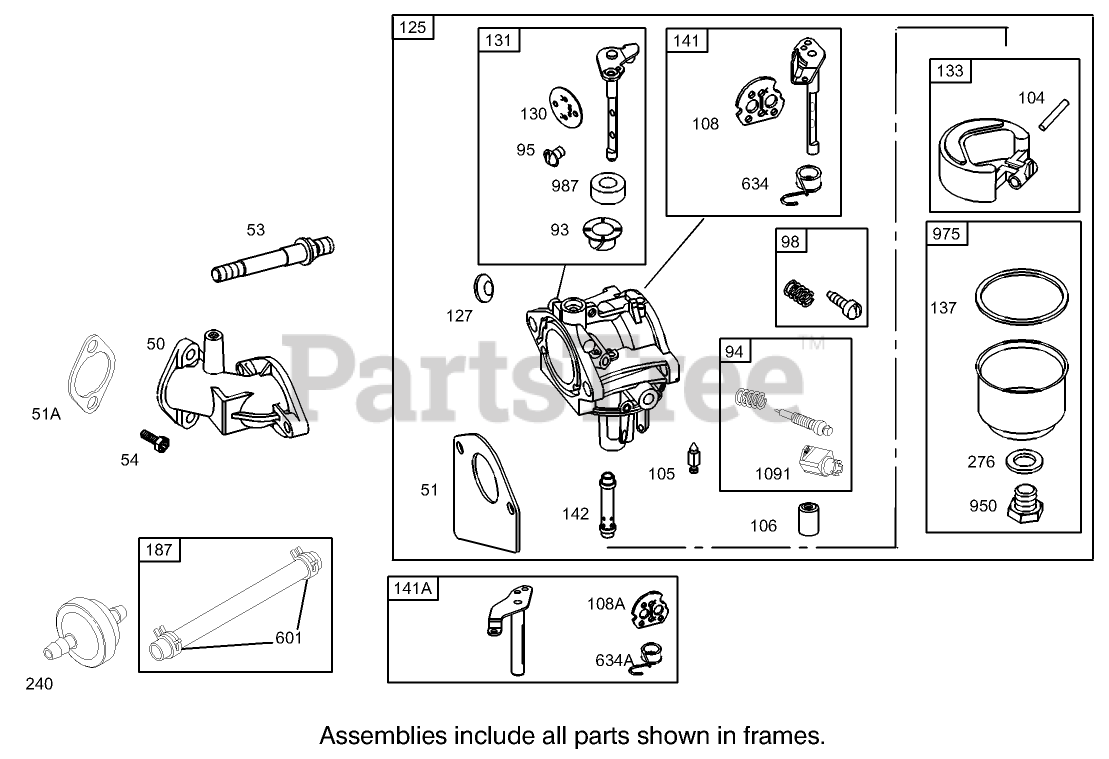

Carburetor Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

  • Title

50

Toro 691711

Intake Manifold

$

$

Currently unavailable

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

53

Toro 691098

Stud (Carburetor)

$

$

Currently unavailable

54

Toro 690953

Screw (Intake Manifold)

$

$

Currently unavailable

93

Toro 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

94

Toro 498030

Idle Mixture Kit

$

$

Currently unavailable

95

Toro 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

98

Toro 495800

Idle Speed Kit

$

$

Currently unavailable

104

Toro 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

106

Toro 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

108

Toro 692344

Valve-Choke

$

$

Currently unavailable

108A

Toro 690467

Valve-Choke (Choke A Matic)

$

$

Currently unavailable

125

Toro 697594

Carburetor

$

$

Currently unavailable

127

Toro 694524

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

130

Toro 691750

Valve-Throttle

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

141

Toro 495097

Choke Shaft Kit

$

$

Currently unavailable

141A

Toro 495931

Choke Shaft Kit

$

$

Currently unavailable

142

Toro 697592

Carburetor Nozzle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

187

Toro 691050

Line-Fuel (Cut to Required Length)

$

$

Currently unavailable

240

Toro 298090

Filter

$

$

Currently unavailable

276

Toro 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276

Toro 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

601

Toro 95162

Clamp-Hose

$

$

Currently unavailable

634

Toro 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634A

Toro 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

950

Toro 691657

Screw

$

$

Currently unavailable

975

Toro 495933

Bowl-Float

$

$

Currently unavailable

987

Toro 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

1091

Toro 691333

Cap-Limiter

$

$

Currently unavailable
