7013 H (1690184) - Simplicity Baron Lawn Tractor, 13hp Hydrostatic Pump - SERVICE PARTS Parts Diagram

Baron Lawn Tractor, 13hp

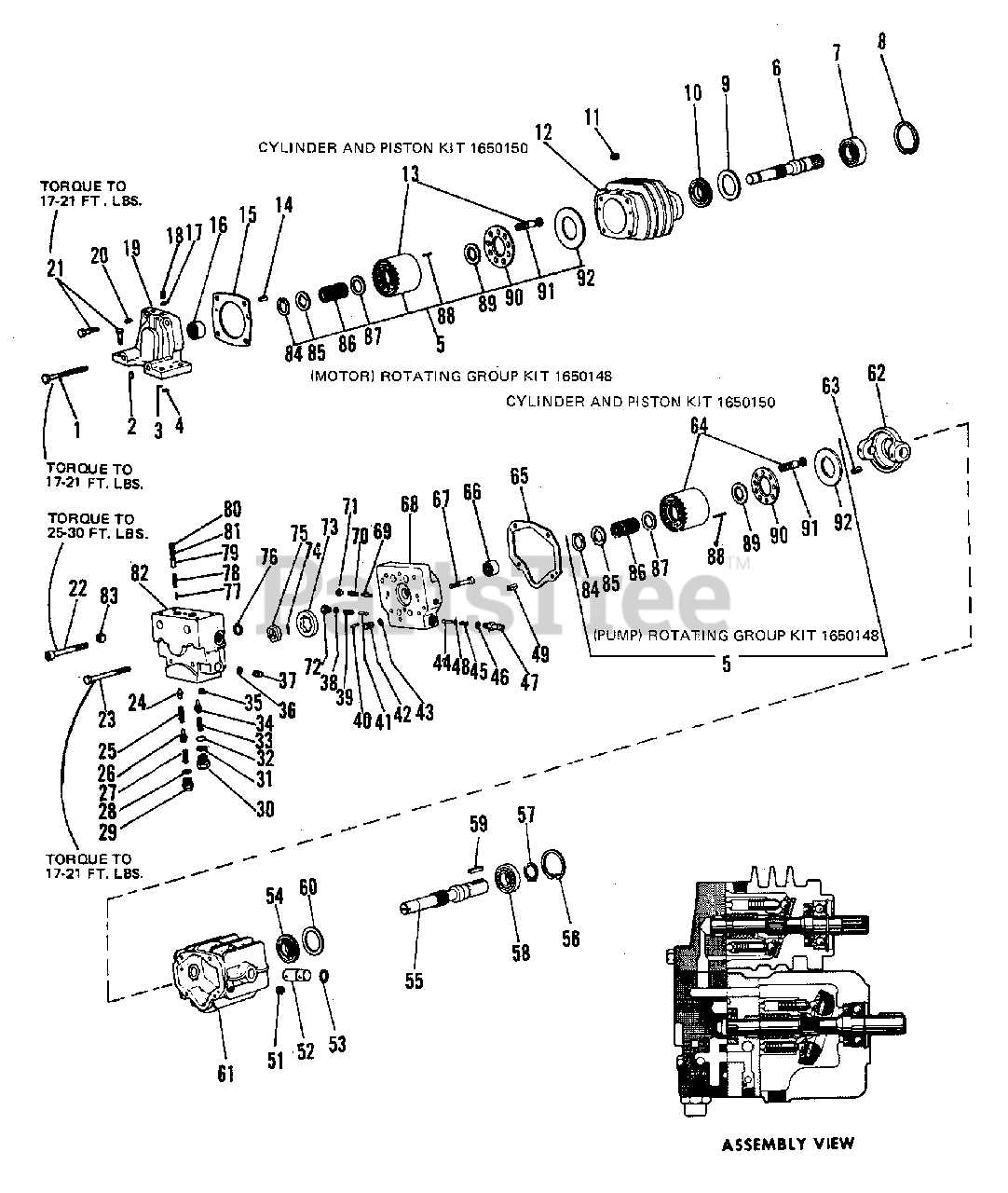

Hydrostatic Pump - SERVICE PARTS Parts Diagram

  • Title

1

Simplicity 1923141SM

Screw
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1650064

Pin

$

$

Not available

3

Simplicity 1650065

O-RING

$

$

Not available

4

Simplicity 1650066

O-RING

$

$

Not available

5

Simplicity 1650148

Motor Rotating Group Kit

Note: Includes Ref. Nos. (84, 85, 86, 87, 88, 89, 90, 91 & 92)

$

$

Not available

6

Simplicity 1650067

Shaft

$

$

Not available

7

Simplicity 1650068

Bearing

$

$

Not available

8

Simplicity 1650069

Snap Ring

$

$

Not available

9

Simplicity 1650070

Spacer

$

$

Not available

10

Simplicity 1650071SM

Shaft Seal

$23.99

$

Usually ships in 2-12 days

0

11

Simplicity 1650072

Plug

$

$

Not available

12

Simplicity 1650073

Motor Housing

$

$

Not available

13

Simplicity 1650150

Cylinder Block & Piston Kit

$

$

Not available

14

Simplicity 1650074

Pin

$

$

Not available

15

Simplicity 1650075

Gasket

$

$

Not available

16

Simplicity 1650096

Bearing

$

$

Not available

17

Simplicity 1650065

O-RING

$

$

Not available

18

Simplicity 1650076

Plug

$

$

Not available

19

Simplicity 1650077

Valve Plate (Inludes Bearings 16)

$

$

Not available

20

Simplicity 1650078

Pin

$

$

Not available

21

Simplicity 1921977SM

Screw
(Superseded to 703570)

$4.99

$

In Stock, Qty 9

0

22

Simplicity 1650080

Screw

$

$

Not available

23

Simplicity 1650081

Screw

$

$

Not available

24

Simplicity 1650082

Poppet Sub-assembly

$

$

Not available

25

Simplicity 1650083

Spring

$

$

Not available

26

Simplicity 1650084

Pin Sub-assembly

$

$

Not available

27

Simplicity 1650085

Spring

$

$

Not available

28

Simplicity 2821349SM

O-RING

$3.49

$

In Stock, only 1 left!

0

29

Simplicity 1650087

Cap

$

$

Not available

30

Simplicity 1650088

Cap

$

$

Not available

31

Simplicity 1650089

O-RING

$

$

Not available

32

Simplicity 1650090

Shim

$

$

Not available

33

Simplicity 1650091

Spring

$

$

Not available

34

Simplicity 1650092

Poppet

$

$

Not available

35

Simplicity 1650072

Plug

$

$

Not available

36

Simplicity 1650065

O-RING

$

$

Not available

37

Simplicity 1650093

Plug

$

$

Not available

38

Simplicity 2821349SM

O-RING

$3.49

$

In Stock, only 1 left!

0

39

Simplicity 1650094

Spring

$

$

Not available

40

Simplicity 1650064

Pin

$

$

Not available

41

Simplicity 1650095

Valve

$

$

Not available

42

Simplicity 1650076

Plug

$

$

Not available

43

Simplicity 1650065

O-RING

$

$

Not available

44

Simplicity 1650095

Poppet

$

$

Not available

45

Simplicity 1650094

Spring

$

$

Not available

46

Simplicity 2821349SM

O-RING

$3.49

$

In Stock, only 1 left!

0

47

Simplicity 1650097

Connector

$

$

Not available

48

Simplicity 1650098

Spacer

$

$

Not available

49

Simplicity 1650099

Pin

$

$

Not available

50

Simplicity 1650148

Pump Rotating Group Kit

Note: Includes Ref. Nos. (84, 85, 86, 87, 88, 89, 90, 91 & 92)

$

$

Not available

51

Simplicity 1650100

Plug

$

$

Not available

52

Simplicity 1650101

Pintle

$

$

Not available

53

Simplicity 2824003SM

O-RING

$3.99

$

Usually ships in 2-12 days

0

54

Simplicity 1650071SM

Shaft Seal

$23.99

$

Usually ships in 2-12 days

0

55

Simplicity 1650103

Shaft

$

$

Not available

56

Simplicity 1650104

Snap Ring

$

$

Not available

57

Simplicity 2827732SM

Snap Ring
(Superseded to 703979)

$4.49

$

In Stock, only 2 left!

0

58

Simplicity 1650106

Bearing

$

$

Not available

59

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

60

Simplicity 1650108

Spacer

$

$

Not available

61

Simplicity 1650109

Pump Housing

$

$

Not available

62

Simplicity 1650110

Yoke

$

$

Not available

63

Simplicity 1650111

Pin

$

$

Not available

64

Simplicity 1650150

Cylinder Block & Piston Kit

$

$

Not available

65

Simplicity 1650112SM

Gasket

$11.99

$

Usually ships in 2-12 days

0

66

Simplicity 1650142

Bearing

$

$

Not available

67

Simplicity 1650113

Screw

$

$

Not available

68

Simplicity 1650114

Valve Plate

$

$

Not available

69

Simplicity 1650115

Valve

$

$

Not available

70

Simplicity 1650116

Spring

$

$

Not available

71

Simplicity 1650072

Plug

$

$

Not available

72

Simplicity 1650117

Plug

$

$

Not available

73

Outer Rotor

$

$

Not available

74

Simplicity 1650118

Key

$

$

Not available

75

Inner Rotor

$

$

Not available

76

Simplicity 1650066

O-RING

$

$

Not available

77

Simplicity 1650119

Pin

$

$

Not available

78

Simplicity 1650122

Spring

$

$

Not available

79

Simplicity 1650123

Valve

$

$

Not available

80

Simplicity 1650124

Plug

$

$

Not available

81

Simplicity 1650125

Guide

$

$

Not available

82

Simplicity 1650126

Transfer Block

$

$

Not available

83

Simplicity 1650072

Plug

$

$

Not available

84

Simplicity 1656081

Snap Ring

$

$

Not available

85

Simplicity 1656079

Washer

$

$

Not available

86

Simplicity 1656080

Spring

$

$

Not available

87

Simplicity 1656079

Washer

$

$

Not available

88

Simplicity 1656078

Pin

$

$

Not available

89

Simplicity 1656077

Spherical Washer

$

$

Not available

90

Simplicity 1656076

Shoe Plate

$

$

Not available

91

Simplicity 1656075

Pistons

Note: (Comes in set of 9)

$

$

Not available

92

Simplicity 1656074

Swash Plate

$

$

Not available

93

Simplicity 1653773

Transfer Block & Valve Assembly

Note: Not Shown, Includes Ref. Nos. (3, 4, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82 & 83

$

$

Not available

94

Simplicity 1650153

Repair Kit

Note: Not Shown, Includes Ref. Nos. (3, 4, 28, 31, 36, 38, 43, 46, 65, 73, 74, 75, 76, 77, 78, 79, 80 & 81)

$

$

Not available

95

Simplicity 1650152

Charge Pump Kit

Note: Not Shown, Includes Ref. Nos. (3, 4, 28, 31, 36, 38, 43, 46, 65, 73, 74 & 75)

$

$

Not available

96

Simplicity 1650154

Seal Kit

Note: Not Shown, Includes Ref. Nos. (3, 4, 10, 15, 17, 28, 31, 36, 38, 43, 46, 53, 54, 65 & 76)

$

$

Not available
