70131 (13-32) - Toro Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) Engine Briggs Stratton Model 28m707-0127-01 Parts Diagram

Rear-Engine Riding Mower

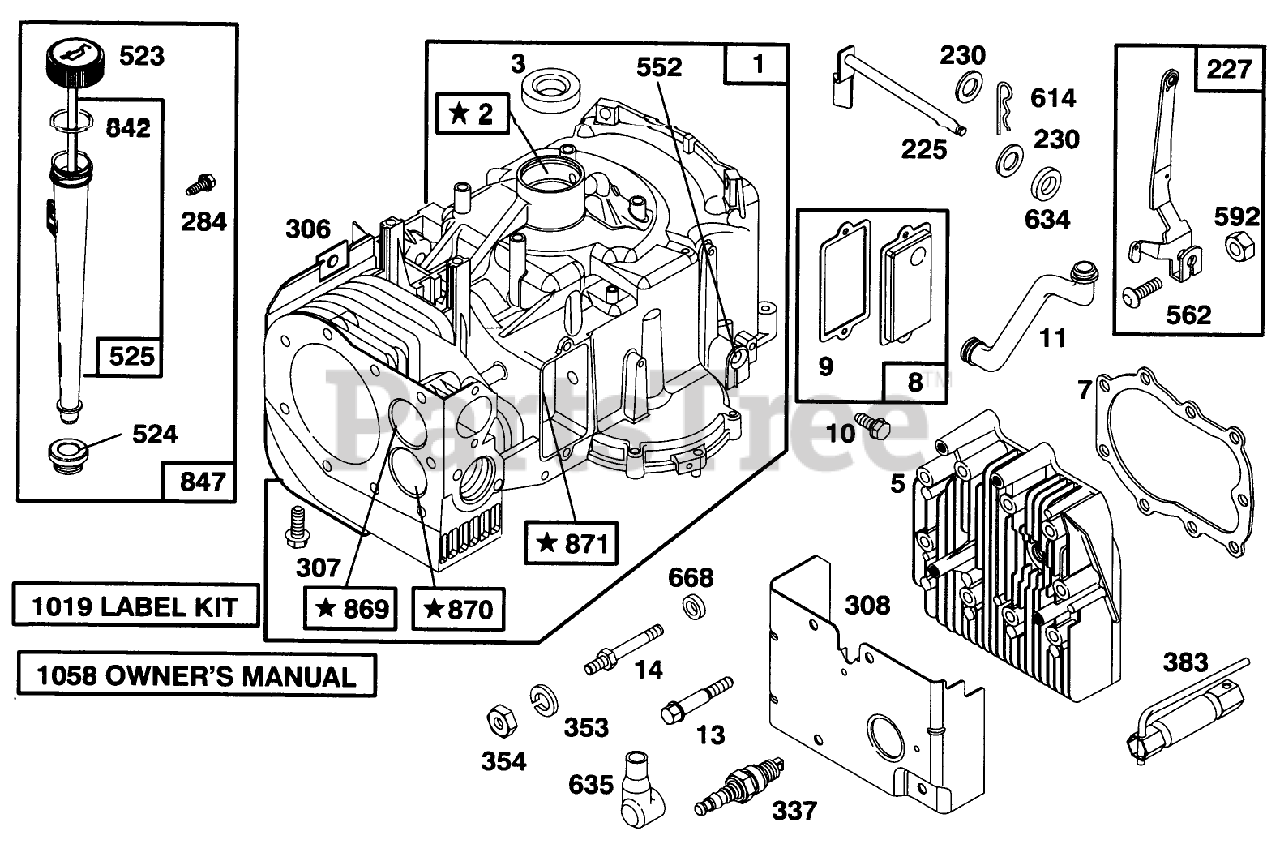

Engine Briggs Stratton Model 28m707-0127-01 Parts Diagram

  • Title

1

Toro 496413

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

5

Toro 494240

Head-Cylinder

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

8

Toro 495735

Breather ASM

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 281246

Tube-Breather

$

$

Currently unavailable

13

Toro 94622

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 94776

Stud-Cyl. Head

$

$

Currently unavailable

225

Toro 495157

Crank-Governor

$

$

Currently unavailable

227

Toro 493935

Lever-Governor

$

$

Currently unavailable

230

Toro 94742

Washer-Flat

$

$

Currently unavailable

284

Toro 94073

Screw-Sem

$

$

Currently unavailable

306

Toro 224545

Shield-Cylinder

$

$

Currently unavailable

307

Toro 94623

Screw-Self Tap

$

$

Currently unavailable

308

Toro 491490

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

353

Toro 94315

Lockwasher

$

$

Currently unavailable

354

Toro 94314

Nut

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

523

Toro 495230

Dipstick

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

525

Toro 496113

Tube-Oil Fill

$

$

Currently unavailable

552

Toro 231597

Nut-Hex.

$

$

Not available

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

668

Toro 231109

Spacer

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

847

Toro 496415

Fill Group-Oil

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 213316

CG7024 TWO WHEEL TR

$3.23

$

Usually ships in 3-6 days

0

871

Toro 261961

Manual-Owner's

$

$

Currently unavailable

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

1019

Toro 491255

Decal Kit

$

$

Currently unavailable

1058

Toro 272697

Owner-s Manual

$

$

Currently unavailable
