70142 (12-32) - Toro Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Engine Briggs Stratton Model 28d707-0124-01 8 Parts Diagram

Rear-Engine Riding Mower

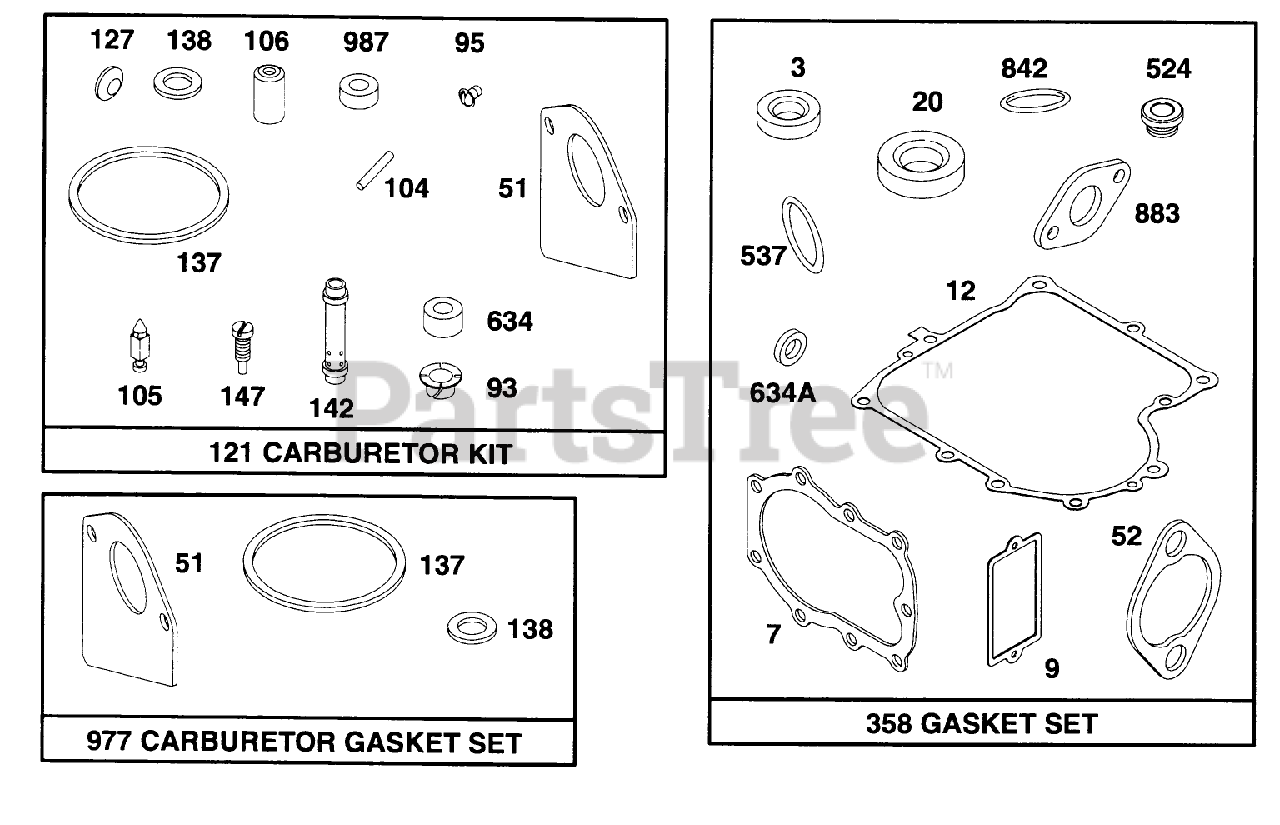

Engine Briggs Stratton Model 28d707-0124-01 8 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

52

Toro 272554

Gasket-Intake

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

93

Toro 281346

Bushing-Throttle

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

121

Toro 497481

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No 497481

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

142

Toro 496519

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

147

Toro 497472

Jet-Pilot

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

358

Toro 494241

Gasket Set (Incl. Ref. #537 883)

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

537

Toro 281106

O-Ring

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

634

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable

634A

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Gasket Set-Part No 494241

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Part No 497481

$

$

Currently unavailable
