7016 H (1690202) - Simplicity Garden Tractor, 16hp P.T.O. Control Group Parts Diagram

Garden Tractor, 16hp

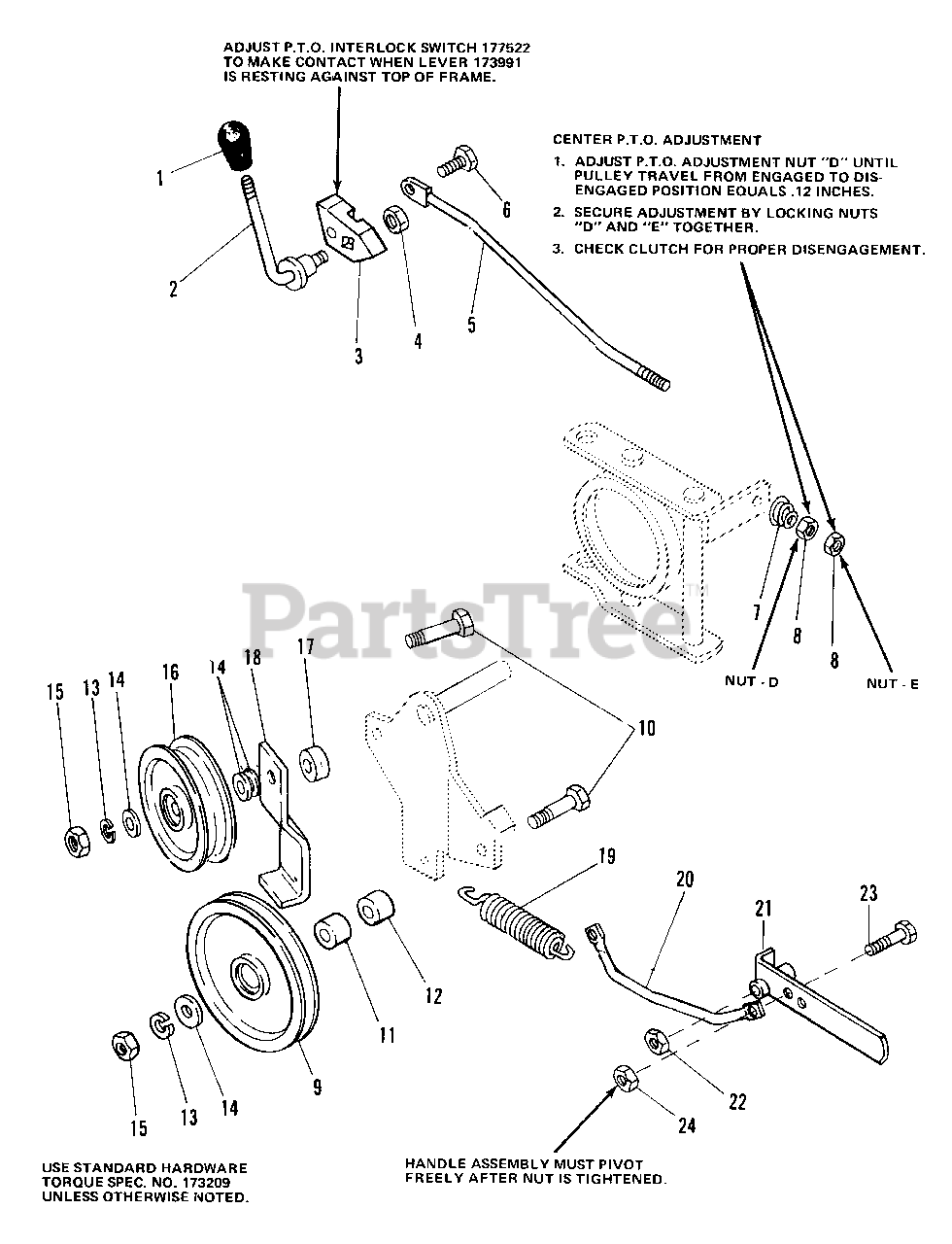

P.T.O. Control Group Parts Diagram

  • Title

1

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$20.99

$

In Stock, only 2 left!

0

2

Simplicity 2174664

HANDLE, Clutch P.T.O.

$

$

Not available

3

Simplicity 2173991SM

LEVER

$37.99

$

Usually ships in 2-12 days

0

4

Simplicity 2823428

LOCKNUTS, Hex, 3/8-16

$

$

Not available

5

Simplicity 173988

CONTROL ROD ASSEMBLY

$

$

Not available

6

Simplicity 2174686

CAPSCREW, Special

$

$

Not available

7

Simplicity 2175316

SPRING

$

$

Not available

8

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 2 left!

0

9

Simplicity 2173982

PULLEY

$

$

Not available

10

Simplicity 2817402

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

11

Simplicity 2170291

SPACER

$

$

Not available

12

Simplicity 2172329SM

SPACER

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

14

Simplicity 2817642

WASHER, 5/16

$

$

Not available

15

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 2105306

PULLEY

$

$

Not available

17

Simplicity 2157081SM

SPACER

$9.49

$

In Stock, only 4 left!

0

18

Simplicity 170289

STOP, Belt

$

$

Not available

19

Simplicity 2157262SM

SPRING, Tension

$48.99

$

Usually ships in 2-12 days

0

20

Simplicity 2164047

ROD, Tension

$

$

Not available

21

Simplicity 2164155SM

HANDLE ASSEMBLY

$102.99

$

Usually ships in 2-12 days

0

22

Simplicity 924053

LOCKNUT, Hex, 7/16-14

$

$

Not available

23

Simplicity 2817397

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

24

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available
