7016 RT (1695767) - Simplicity Tiller, 9hp Wheel & Tiller Shaft Group Parts Diagram

Tiller, 9hp

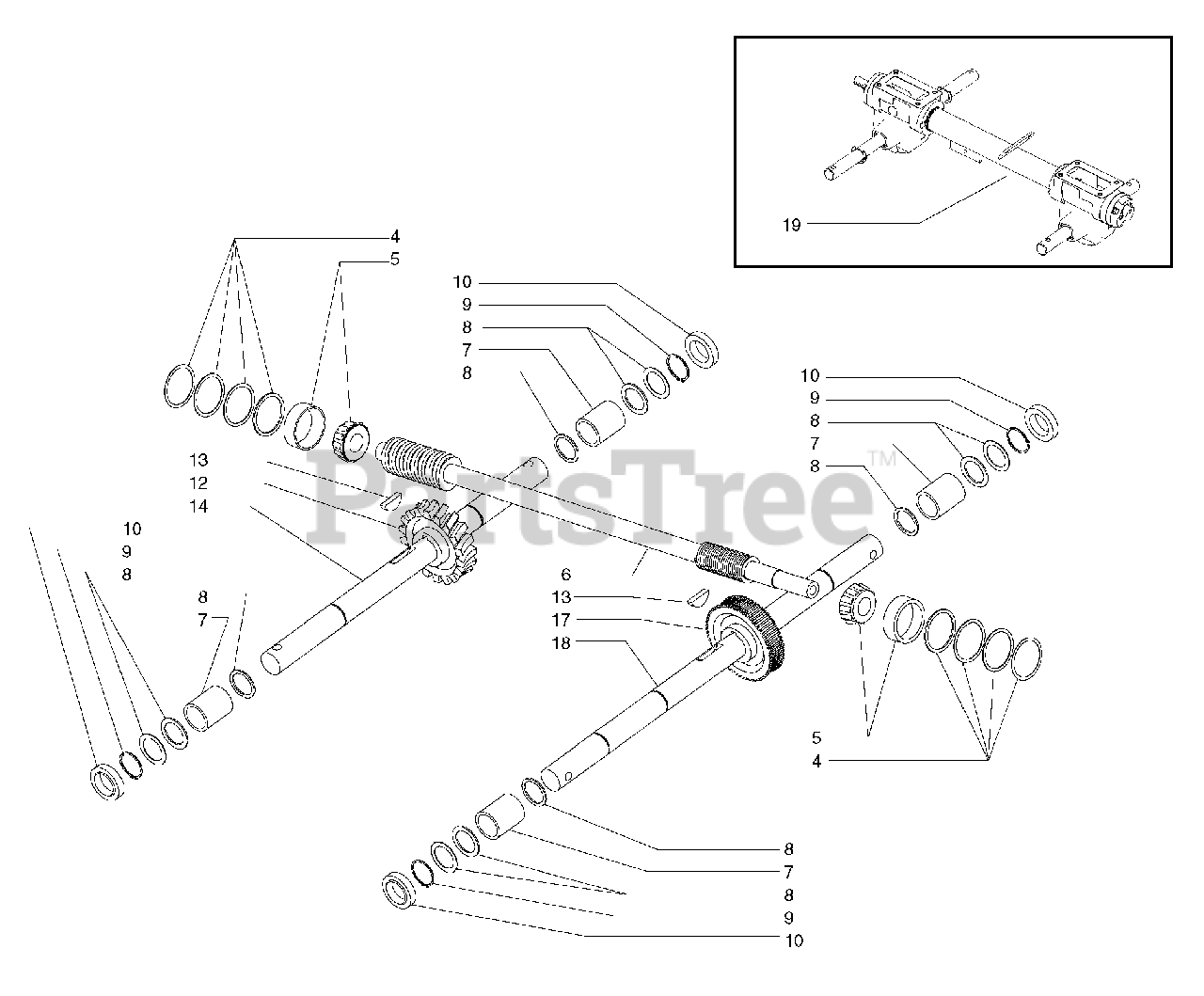

Wheel & Tiller Shaft Group Parts Diagram

  • Title

4

* SHIM, Drive shaft

$

$

Not available

5

* BEARING, Tapered Roll

$

$

Not available

6

* SHAFT, Drive SRT

$

$

Not available

7

* BUSHING

$

$

Not available

8

* SPACER, 1" ID x 1-1/4 OD

$

$

Not available

9

Simplicity 1716830

RING, Retainer Shaft
(Superseded to 1716830SM)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1716791

SEAL, Oil, Housing
(Superseded to 1716791SM)

$53.99

$

In Stock, only 4 left!

0

12

* GEAR, Tine, SRT

$

$

Not available

13

* KEY, Woodruff, 6 x 25

$

$

Not available

14

* SHAFT, Tine

$

$

Not available

17

* GEAR WHEEL

$

$

Not available

18

* SHAFT, WHEEL, Long

$

$

Not available

19

Simplicity 1738764

TRANSMISSION ASSEMBLY
(Superseded to 1738764YP)

$1691.99

$

Usually ships in 2-12 days

0
