70171 (12-32) - Toro Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) SEAT BODY & SIDE PANEL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

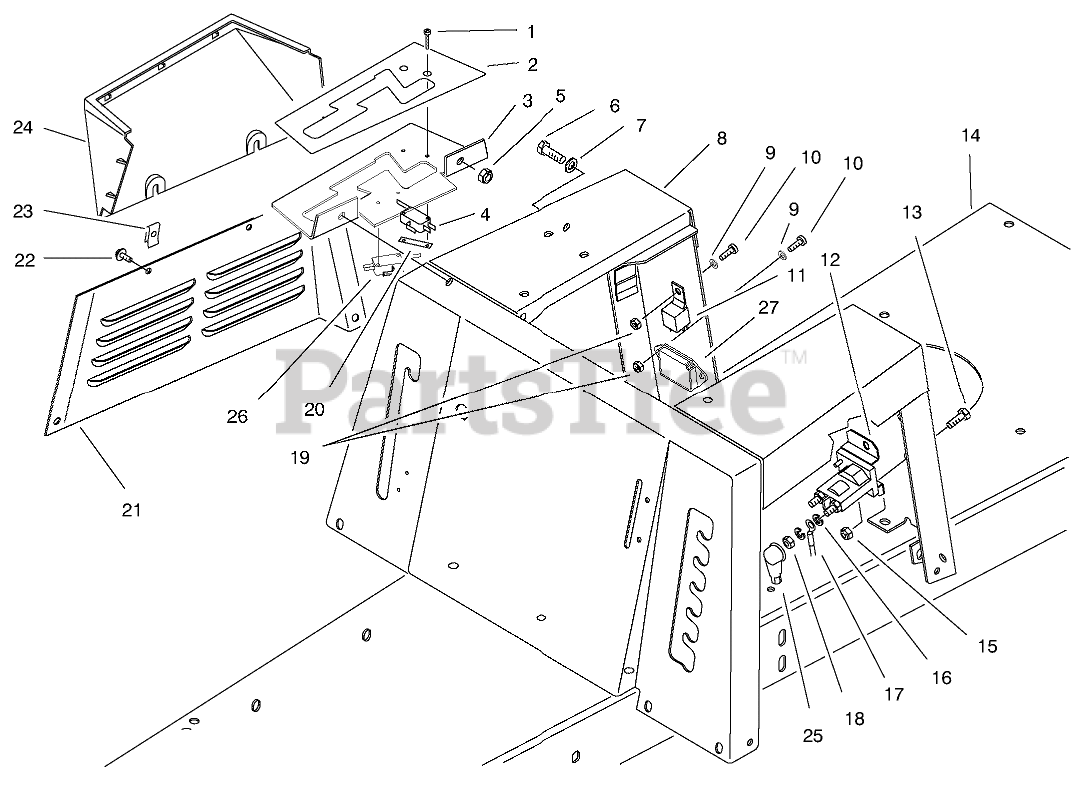

SEAT BODY & SIDE PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 93-7007

DECAL - SHIFT PATTERN

$

$

Not available

3

Toro 99-2969-03

GATE-SHIFT

$

$

Not available

4

Toro 88-9930

SWITCH-MICRO

$43.99

$

In Stock, only 2 left!

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 99-2967-01

BODY WA-SEAT

$

$

Not available

9

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

11

Toro 98-7249

RELAY

$23.99

$

In Stock, Qty 17

0

12

Toro 47-1910

SOLENOID
(Superseded to 740207)

$36.99

$

In Stock, only 2 left!

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 99-2962-01

FRAME-MAIN

$

$

Not available

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 56-7670

WIRE ASM

$32.99

$

In Stock, only 2 left!

0

18

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

21

Toro 92-0877-01

PANEL-R/H SEAT BASE

$

$

Not available

22

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

24

Toro 88-9800

COVER-SHIFT GATE

$

$

Not available

25

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$8.49

$

Usually ships in 3-6 days

0

26

Toro 88-9931

SWITCH-MICRO

$47.99

$

In Stock, only 2 left!

0

27

Toro 99-3700

MODULE

$159.99

$

In Stock, only 2 left!

0
