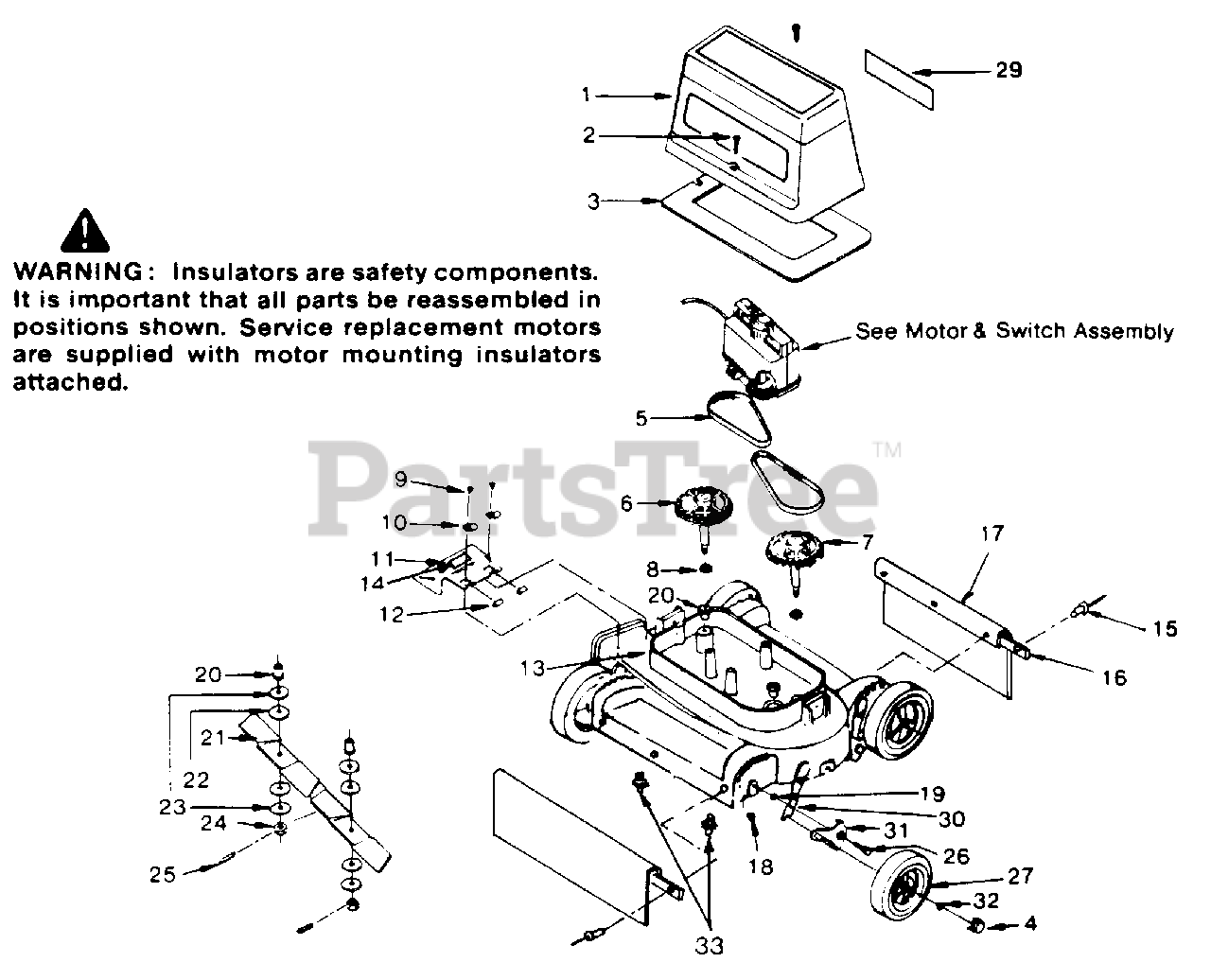

70183 (181-222A033) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Ace Hardware) Parts Parts Diagram

Walk-Behind Mower, Electric

Parts Parts Diagram

  • Title

1

MTD 731-1241

Motor Cover

$

$

Not available

2

MTD 710-1111

Screw Motor Cover

$

$

Not available

3

MTD 724-0172

Baffle Air

$

$

Currently unavailable

4

MTD 720-0251

Hub Cap

$

$

Not available

5

MTD 754-0374

Belt-Drive
(Superseded to 954-0374)

$25.99

$

Usually ships in 3-6 days

0

6

MTD 618-0022

Blade Shaft/Pulley Long

$

$

Not available

7

MTD 618-0021

Blade Shaft/Pulley Short

$

$

Not available

8

MTD 736-0466

Washer, Pulley
(Superseded to 936-0160)

$3.99

$

In Stock, Qty 17

0

9

MTD 728-0123

Rivet, Blind
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

10

MTD 782-3015

Hinge, Chute Guard

$

$

Not available

11

MTD 782-7001

Chute Guard

$

$

Not available

12

MTD 711-0872

Hinge Pin

$

$

Not available

13

MTD 682-0011

Deck Assembly

Note: (Inc. Ref. #20, 15, 16, 17)

$

$

Currently unavailable

14

MTD 777-8151

Label - Danger
(Superseded to 977S30145)

$9.49

$

In Stock, only 1 left!

0

15

MTD 728-0143

Rivet - Blind
(Superseded to 928-0180)

$

$

Not available

16

MTD 782-7515

Strap - Trail Shield

$

$

Currently unavailable

17

MTD 720-0248

Trailing Guard

$

$

Not available

18

MTD 712-0429

Nut 5/16 - 18 Locking

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0464

Washer, Axle

$

$

Currently unavailable

20

MTD 741-0582

Bearing, Blade Shaft

$9.49

$

Usually ships in 3-6 days

0

21

MTD 742-0565

Blade - 9"

Variations

MTD 742-0565-0637

No Longer Available BLADE-9IN- - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 736-0468

Washer, Fibre

$

$

Not available

23

MTD 736-0467

Washer, Flat

$

$

Not available

24

MTD 712-0443

Nut, Blade

$

$

Not available

25

MTD 714-0228

Cotter Pin

$

$

Not available

26

MTD 738-0860

Shoulder Bolt

$

$

Not available

27

MTD 634-0010

Wheel

$

$

Not available

29

MTD 777-9381

Caution & Data Label

$

$

Not available

30

MTD 782-0017

Handle Height Adjustment

$

$

Currently unavailable

31

MTD 682-0507

Bracket & Axle Assembly

$

$

Not available

32

MTD 716-0183

Retaining Ring

$

$

Not available

33

MTD 737-0280

Grease Fitting

$7.49

$

Usually ships in 3-6 days

0

MTD 770-7393F

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
