70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) Crankcase Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

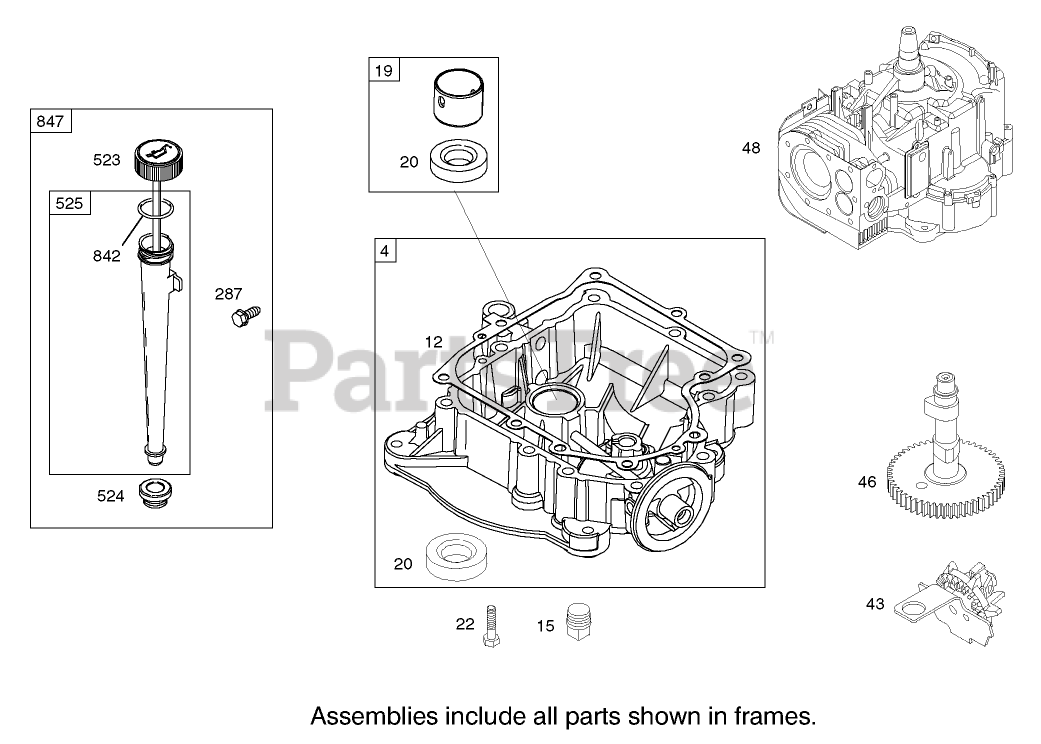

Crankcase Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

  • Title

4

Toro 494238

Base-Engine

$

$

Currently unavailable

12

Toro 692226

Crankcase Gasket (.015 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 692406

Crankcase Gasket (.005 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 692405

Crankcase Gasket (.009 Thick)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

15

Toro 690946

Plug-Drain, Oil

$

$

Currently unavailable

19

Toro 490666

Bushing-Sump

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

22

Toro 692125

Screw

$

$

Currently unavailable

43

Toro 691968

Slinger-Governor, Oil

$

$

Currently unavailable

46

Toro 697668

Camshaft

$

$

Currently unavailable

48

Toro 496606

Short Block

$

$

Currently unavailable

287

Toro 691002

Screw (Dipstick Tube)

$

$

Currently unavailable

523

Toro 692014

Dipstick

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

525

Toro 691398

Dipstick Tube

$

$

Currently unavailable

842

Toro 691870

O Ring Seal (Dipstick Tube)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

847

Toro 496415

Fill Group-Oil

$

$

Currently unavailable
