70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) Carburetor Overhaul Kit Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

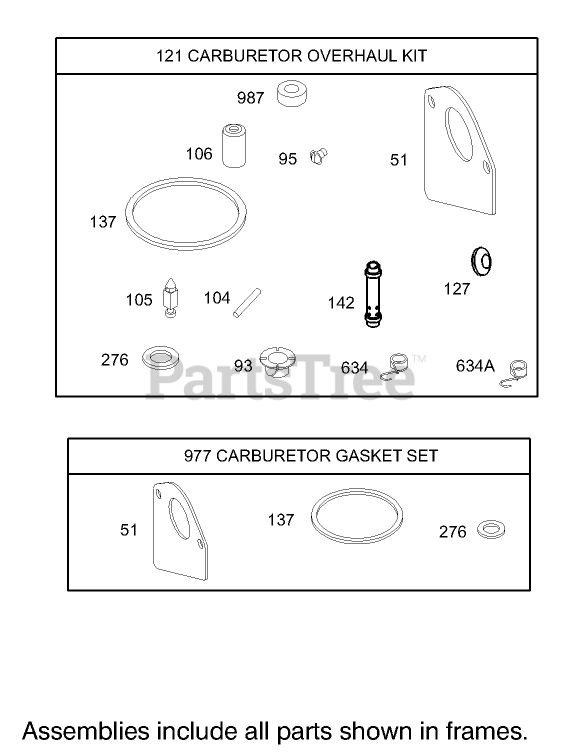

Carburetor Overhaul Kit Assembly Engine Briggs and Stratton Model 28M707-1127-E1 Parts Diagram

  • Title

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

93

Toro 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

95

Toro 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

104

Toro 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

106

Toro 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

121

Toro 499220

Carburetor Kit

$

$

Currently unavailable

127

Toro 694524

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

142

Toro 697592

Carburetor Nozzle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634

Toro 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634A

Toro 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable
