70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

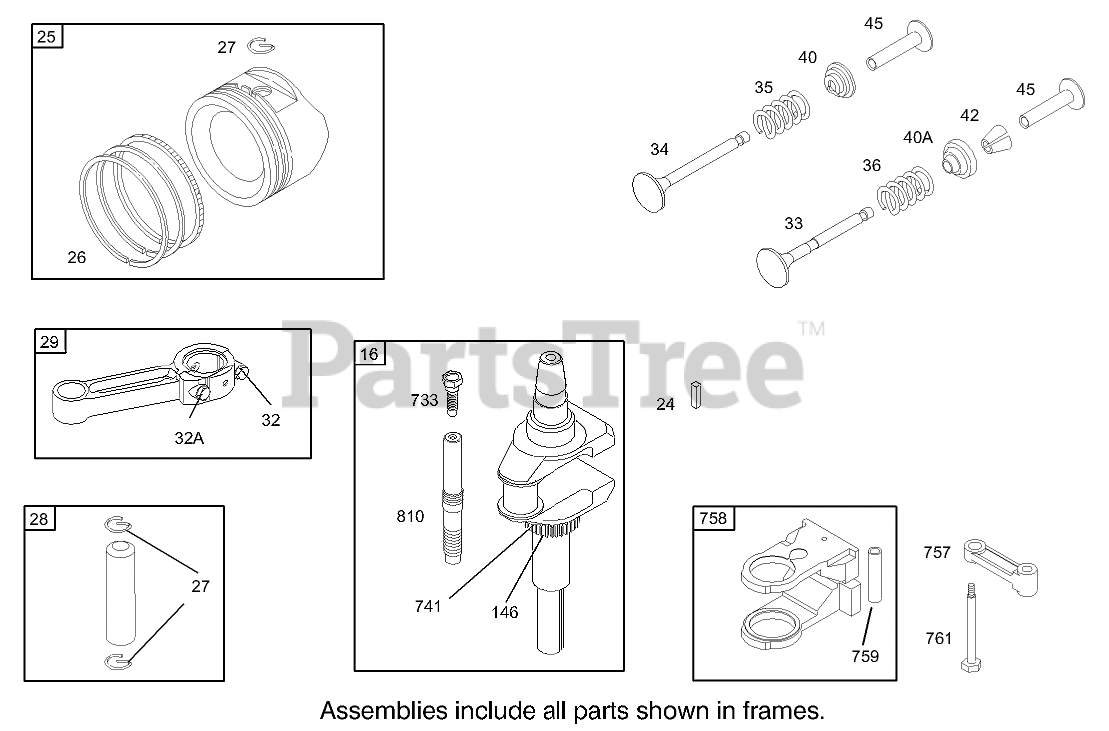

CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

  • Title

16

Briggs & Stratton 693944

Crankshaft

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 9

0

25

Briggs & Stratton 696397

Piston Assembly (Standard)

$

$

Not available

Briggs & Stratton 696398

Piston Assembly (.010" Oversized)

$

$

Not available

Briggs & Stratton 696399

Piston Assembly (.020" Oversized)

$168.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 696400

Piston Assembly (.030" Oversized)

$

$

Not available

26

Briggs & Stratton 696403

Ring Set (Standard)

$57.99

$

In Stock, only 2 left!

0

Briggs & Stratton 696404

Ring Set (.010" Oversized)

$

$

Not available

Briggs & Stratton 696405

Ring Set (.020" Oversized)

$81.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 696406

Ring Set (.030" Oversized)

$

$

Not available

27

Briggs & Stratton 691299

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

$19.99

$

In Stock, only 1 left!

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

$

$

Not available

29

Briggs & Stratton 494504

Rod-Connecting
(Superseded to 494504S)

$103.99

$

In Stock, only 3 left!

0

Briggs & Stratton 495490

Rod-Conn. (.020" U.S.)

$

$

Not available

32

Briggs & Stratton 690356

Screw (Connecting Rod 7/8")
(Superseded to 791118)

$4.99

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 690348

Screw (Connecting Rod 5/8")
(Superseded to 690352)

$7.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 691605

Valve Spring (Intake)

$7.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 691597

Spring-Valve (Exhaust)

$11.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 690656

Valve Retainer

$

$

Not available

40A

Briggs & Stratton 691939

Retainer-Valve

$29.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$8.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 691811

Keeper-Valve

$

$

Not available

146

Briggs & Stratton 691639

Key-Timing

$4.99

$

In Stock, only 1 left!

0

733

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

$6.49

$

In Stock, Qty 11

0

741

Briggs & Stratton 691284

Gear-Timing

$

$

Not available

757

Briggs & Stratton 691714

Counteweight Link

$

$

Not available

758

Briggs & Stratton 692423

Counterweight

$244.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 691239

Counterweight Pin

$9.99

$

Usually ships in 2-12 days

0

761

Briggs & Stratton 691096

Screw (Counterweight)

$5.99

$

Usually ships in 2-12 days

0

810

Briggs & Stratton 691779

Crankshaft Extension

$51.99

$

Usually ships in 2-12 days

0
