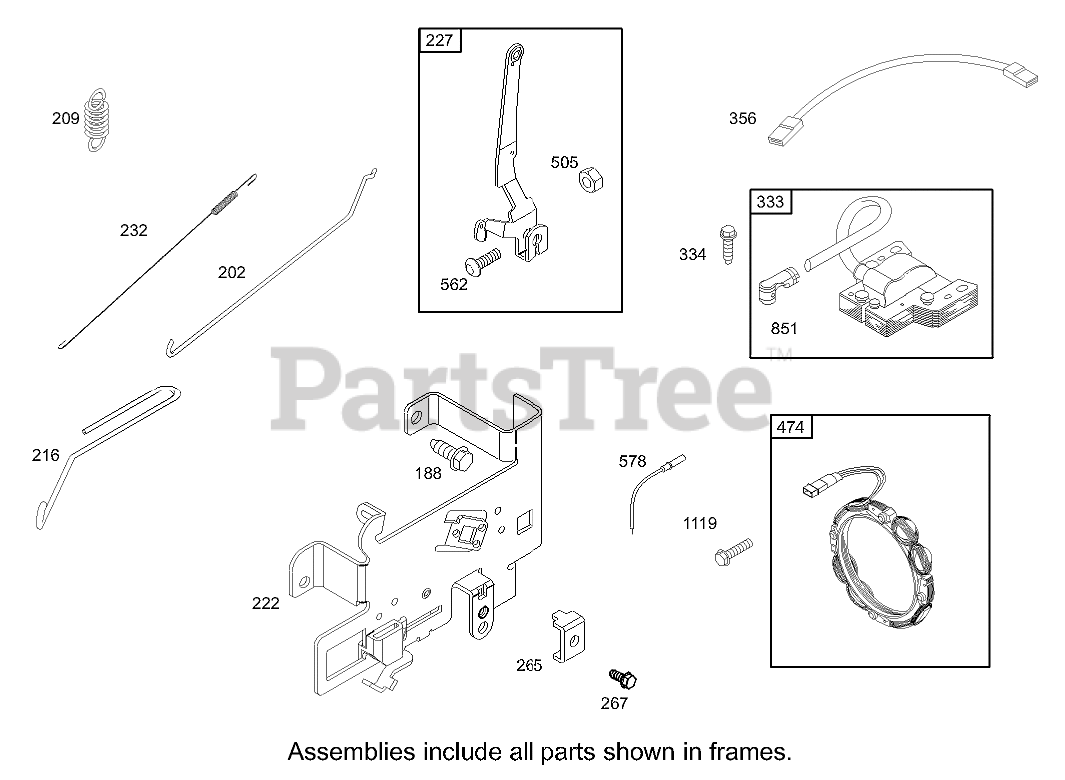

70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

$10.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 690576

Spring-Governor

$6.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 691840

Link-Choke

$9.99

$

In Stock, Qty 6

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 8

0

227

Briggs & Stratton 691374

Lever-Control, Governor

$28.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

$12.99

$

In Stock, Qty 16

0

265

Briggs & Stratton 691024

Clamp-Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 695134

Screw
(Superseded to 792629)

$3.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 690799

Stop Wire

$12.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

$137.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

Nut

$3.49

$

In Stock, Qty 8

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

578

Briggs & Stratton 692306

Wire Assembly

$18.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1119

Briggs & Stratton 691183

Screw

$3.99

$

Usually ships in 2-12 days

0
