70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 260000001 - 260999999) (2006) Body and Decal Assembly Parts Diagram

Rear-Engine Riding Mower

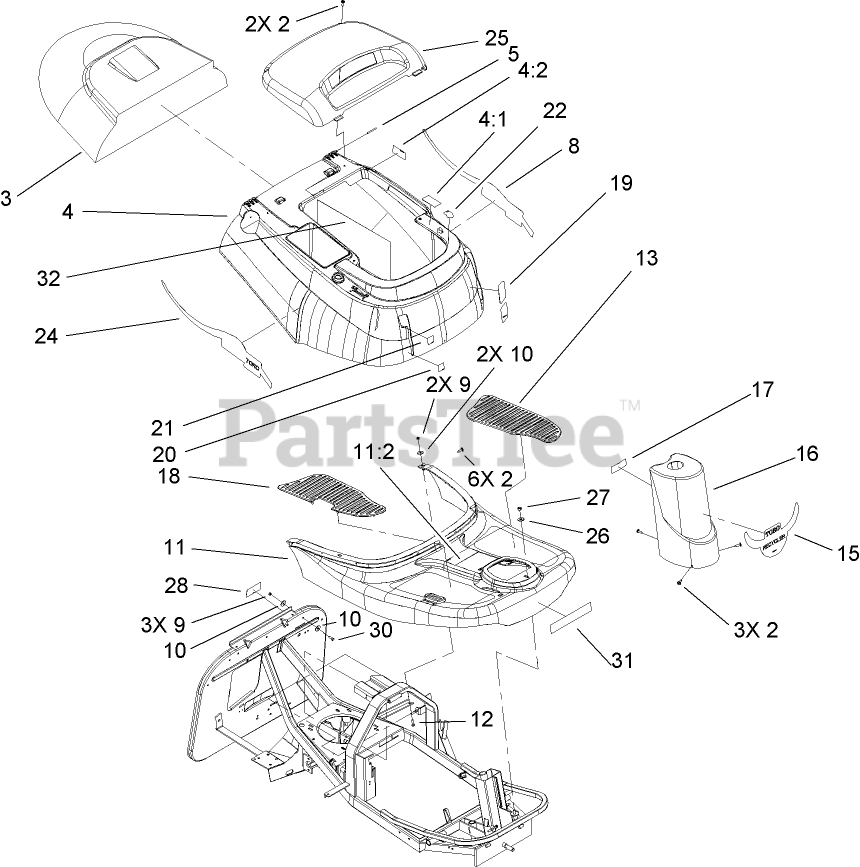

Body and Decal Assembly Parts Diagram

  • Title

2

Toro 106-2851

Screw-HH, TAP

$

$

Currently unavailable

3

Toro 106-1810

COVER-GRASS BAG

$

$

Currently unavailable

4

Toro 106-2885

Shroud And Decal ASM

$

$

Not available

4:1

Decal-Danger

Note: Not serviced separately

$

$

Not available

4:2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

5

Toro 106-2870

Pin-Dowel

$

$

Not available

8

Toro 107-8980

DECAL

$

$

Currently unavailable

9

Toro 49-7810

See Supercession: 33023-00
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 106-2853

Washer-Flat

$

$

Not available

11

Toro 106-2901

FOOT REST AND DECAL ASM

$

$

Not available

11:2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

12

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

13

Toro 106-2973

Floormat-LH

$

$

Currently unavailable

15

Toro 106-6517

DECAL-FRONT

$

$

Not available

16

Toro 106-2906

Steering-Turret

$

$

Not available

17

Loose Parts Package

Note: Not serviced separately

$

$

Not available

18

Toro 106-2972

Floormat-RH

$

$

Currently unavailable

19

Loose Parts Package

Note: Not serviced separately

$

$

Not available

20

Loose Parts Package

Note: Not serviced separately

$

$

Not available

21

Loose Parts Package

Note: Not serviced separately

$

$

Not available

22

Loose Parts Package

Note: Not serviced separately

$

$

Not available

24

Toro 107-8981

DISCONTINUED

$

$

Not available

25

Toro 106-2860

Cover-Engine

$

$

Not available

26

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

27

Toro 46-0330

NUT-LOCK

$

$

Not available

28

Loose Parts Package

Note: Not serviced separately

$

$

Not available

30

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 106-6525

DECAL

$

$

Not available

32

Toro 107-2228

DISCONTINUED

$

$

Not available

99

Toro 106-2887

DECAL KIT

Note: Not illustrated

$

$

Not available
