70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 311000001 - 311999999) (2011) Shaft and Brake Assembly Transmission No. 114-3192 Parts Diagram

Rear-Engine Riding Mower

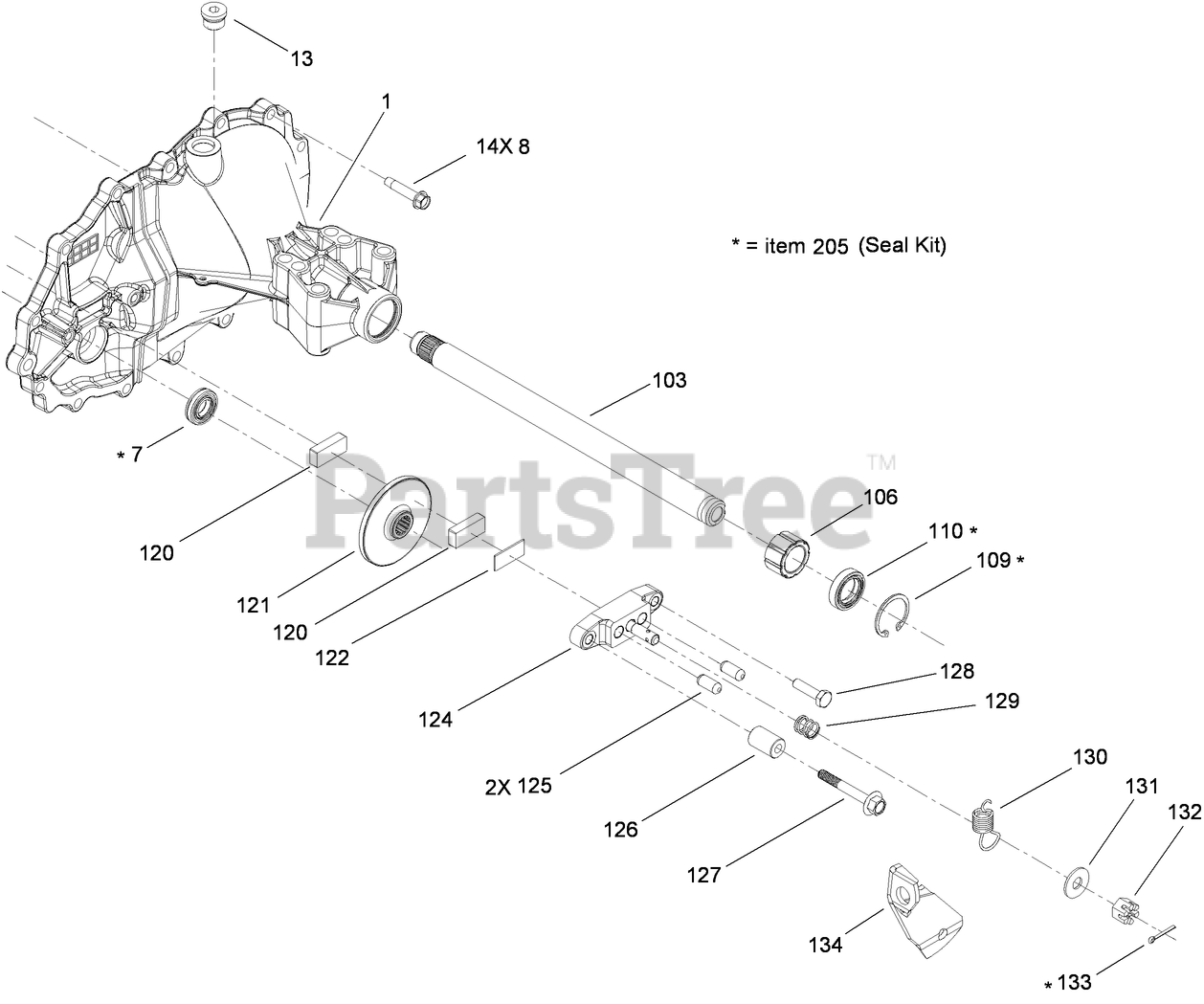

Shaft and Brake Assembly Transmission No. 114-3192 Parts Diagram

  • Title

1

Toro 115-8313

MAIN HOUSING KIT

$

$

Currently unavailable

7

Toro 115-8335

SEAL-LIP

$13.99

$

Usually ships in 3-6 days

0

8

Toro 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

13

Toro 112-9850

See Supercession: 104-2189
(Superseded to 104-2189)

$28.99

$

In Stock, only 2 left!

0

103

Toro 115-8336

SHAFT-AXLE, KEYED

$

$

Currently unavailable

106

Toro 115-8304

BUSHING-OUTBOARD

$

$

Currently unavailable

109

Toro 115-8303

RING-RETAINING, INTERNAL

$

$

Currently unavailable

110

Toro 94-1924

See Supercession: 121-0970
(Superseded to 121-0970)

$

$

Not available

120

Toro 104-2171

PUCK-BRAKE

$21.99

$

Usually ships in 3-6 days

0

121

Toro 115-8337

ROTOR-BRAKE

$

$

Currently unavailable

122

Toro 104-2181

PUCK-PLATE

$10.99

$

Usually ships in 3-6 days

0

124

Toro 104-5343

YOKE-BRAKE

$68.99

$

Usually ships in 3-6 days

0

125

Toro 104-2176

PIN-BRAKE

$11.99

$

Usually ships in 3-6 days

0

126

Toro 104-2180

SPACER

$9.49

$

Usually ships in 3-6 days

0

127

Toro 104-5345

SCREW-HF

$12.99

$

Usually ships in 3-6 days

0

128

Toro 115-8339

SCREW-HHCS

$

$

Currently unavailable

129

Toro 104-2188

SPRING-BRAKE, ANTI DRAG

$8.49

$

Usually ships in 3-6 days

0

130

Toro 115-8340

ARM-BRAKE

$

$

Currently unavailable

131

Toro 114-8491

WASHER

$5.49

$

In Stock, only 2 left!

0

132

Toro 93-3807

NUT-CASTLE

$

$

Not available

133

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

134

Toro 115-8338

SPRING-BRAKE, ARM

$

$

Currently unavailable

205

Toro 115-8316

SEAL KIT

$60.99

$

Usually ships in 3-6 days

0
