701990 - Ariens Tine & Hood Extension Kit

Tine & Hood Extension Kit

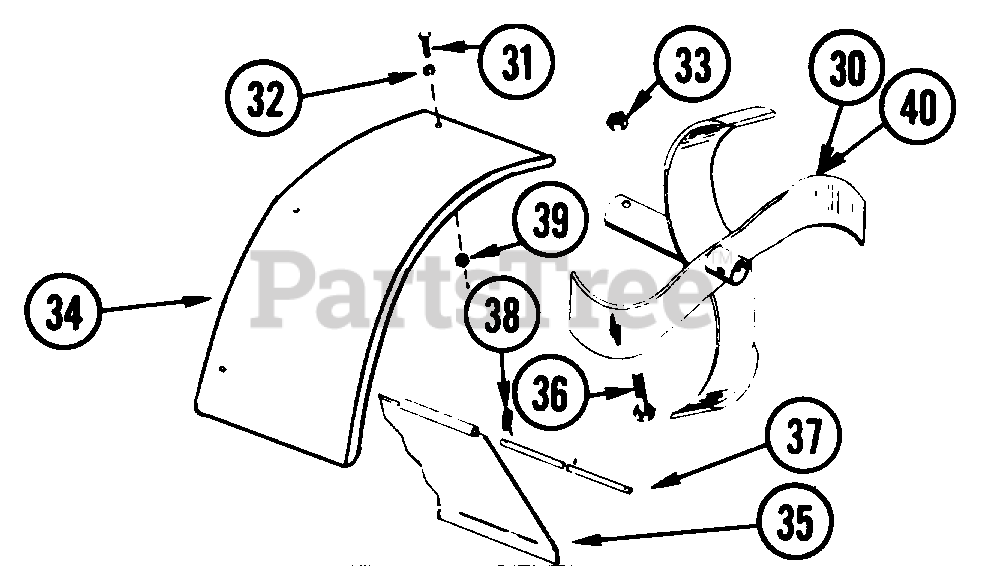

701990 - Ariens Tine & Hood Extension Kit > Parts Diagrams (2) > Tine & Hood Extension Kit

  • Title
00114000

30

RIGHT HAND TINE EXT SPOOL

Part# 00114000

OEM Warranty Repair Part for Ariens

Not available

05902800

31

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

06300200

32

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503900

33

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00111000

34

SIDE EXTENSION

Part# 00111000

OEM Warranty Repair Part for Ariens

Not available

00111100

35

EXTENSION TAILBOARD

Part# 00111100

OEM Warranty Repair Part for Ariens

Not available

05906800

36

BLT-HEX .38-16X2.00 PL GR2

Part# 05906800 (Superseded to 05963300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00111200

37

EXTENSION TAILBOARD PIN

Part# 00111200

OEM Warranty Repair Part for Ariens

Not available

05801000

38

PIN-ROLL .093X.50

Part# 05801000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503200

39

NUT-HEX .250-20 PL

Part# 06503200 (Superseded to 06533200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00114100

40

LEFT HAND TINE EXT SPOOL

Part# 00114100

OEM Warranty Repair Part for Ariens

Not available
