7021 CH1 (954224095) - Husqvarna 21" Walk-Behind Mower (2004-06) REPAIR PARTS Parts Diagram

21" Walk-Behind Mower

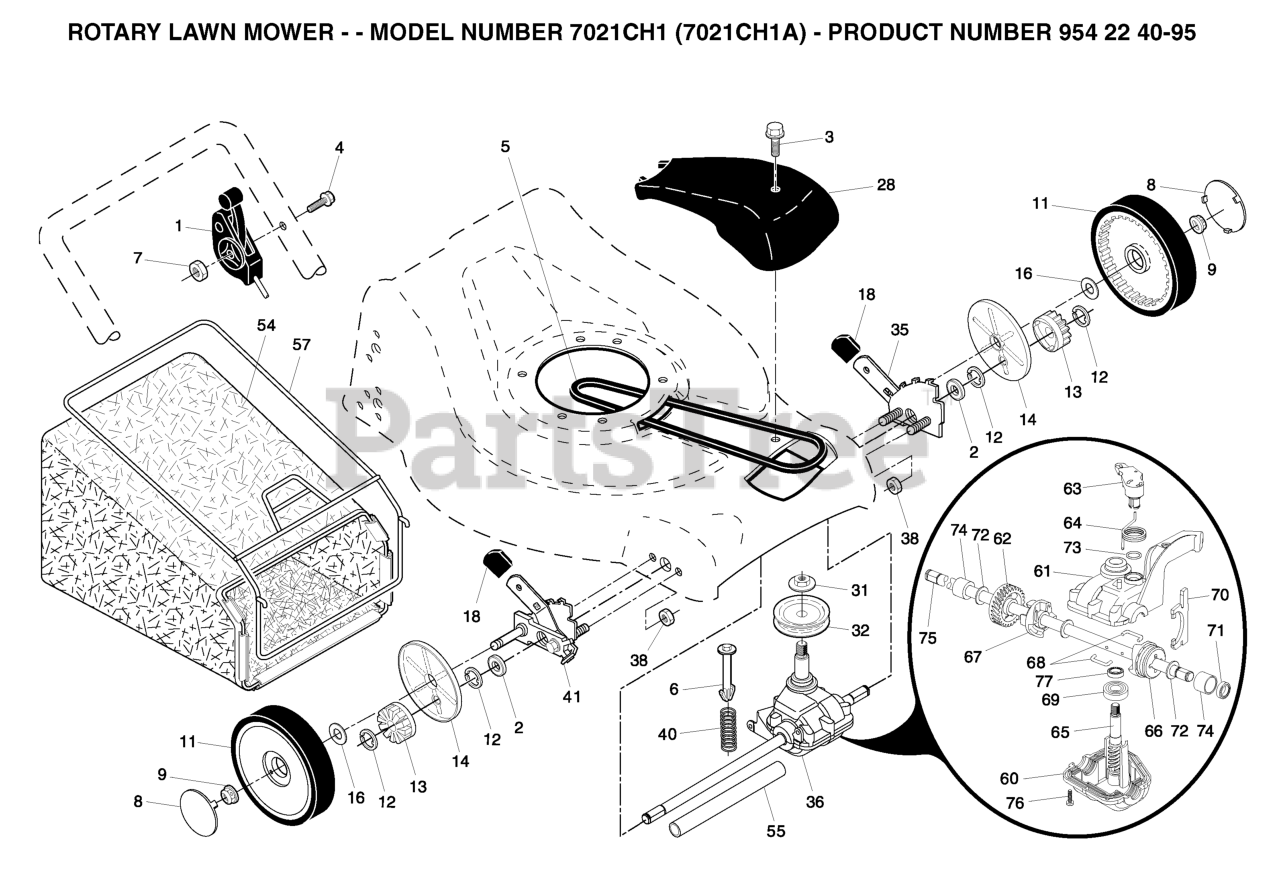

REPAIR PARTS Parts Diagram

  • Title

71

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532185579

COVER.DRIVE.21.FWGD.GRAY
(Superseded to 532432664)

$24.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532183498

UPPER CASE

$15.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183502

SHAFT INPUT (13041)

$30.99

$

In Stock, only 1 left!

0

69

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532175436

BELT.DRIVE.21FGD.1SPEED

$24.99

$

In Stock, Qty 11

0

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

77

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532151521

WHEEL ADJ ASM (L)

$

$

Not available

8

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

62

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 532410667

GBAG.32510010.BLK.GEN.SERVICE

$87.99

$

In Stock, only 4 left!

0

66

Husqvarna 532183503

DOG, MOVABLE (11032)

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183510

SEAL, CASE O-RING

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532183505

WIRE, FORMED (15966)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532189407

PULLEY, DRIVE
(Superseded to 532194126)

$

$

Not available

4

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

57

Husqvarna 532188815

BAG FRAME
(Superseded to 532194643)

$

$

Not available

74

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183500

LEVER, CLUTCH

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532180504

DUST COVER, WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532180184

TRANSMISSION.21.HT.GWGD

$

$

Not available

60

Husqvarna 532183497

LOWER CASE

$15.99

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 532180767

WHEEL.8X2.PR.LP.RAD.BLK
(Superseded to 532180775)

$34.99

$

In Stock, Qty 18

0

76

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532175739

DRIVESHAFT COVER

$

$

Not available

75

Husqvarna 532183512

SHAFT OUTPUT (12159)

$46.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

13

Husqvarna 532137054

PINION GEAR

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532183507

FORK, SHIFT

$9.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

67

Husqvarna 532183504

DOG, FIXED GT11031

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183501

SPRING, RETURN

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

9

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532151520

KIT.ADJUSTER.ASM.(151514).RT

$

$

Not available

2

Husqvarna 532169911

BEARING, BALL

$

$

Not available
