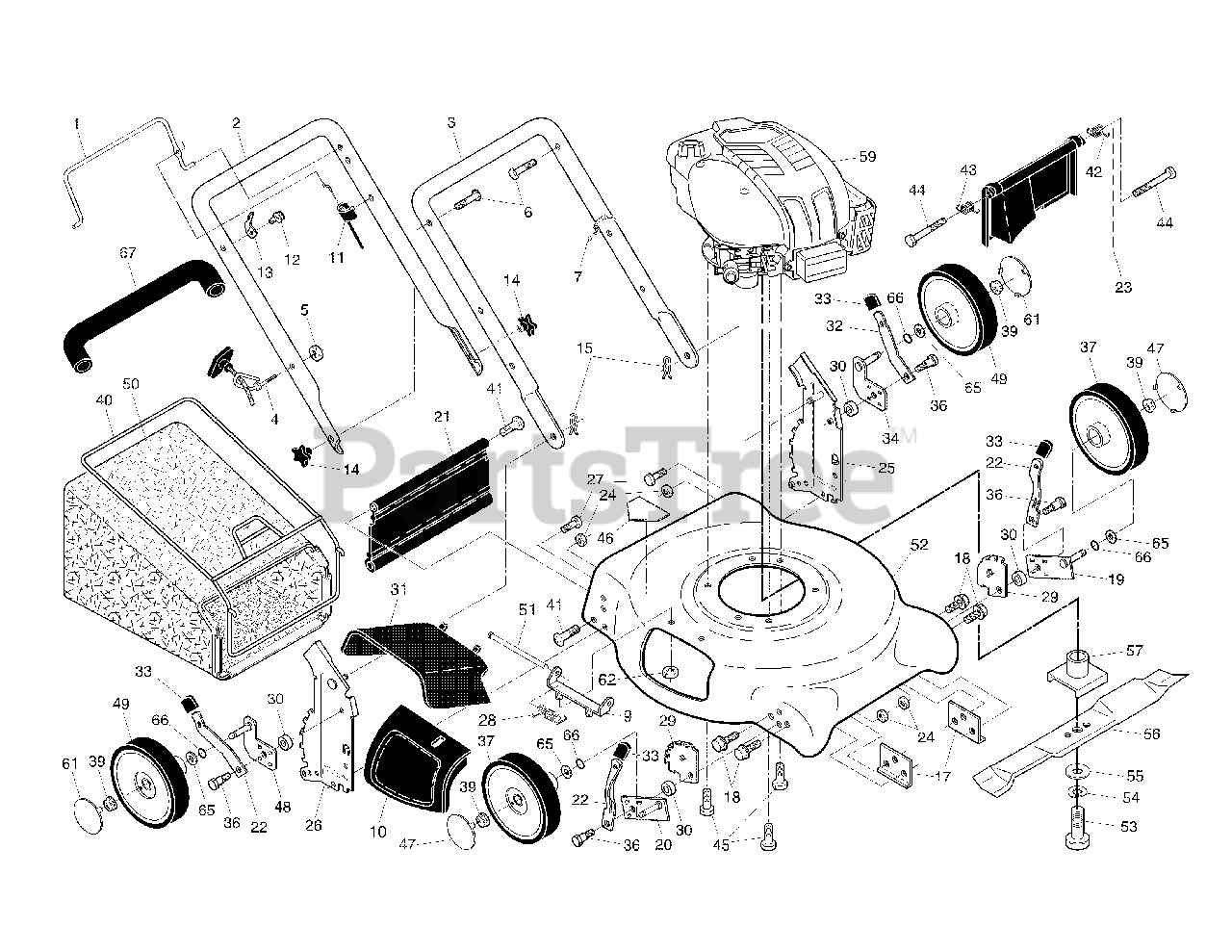

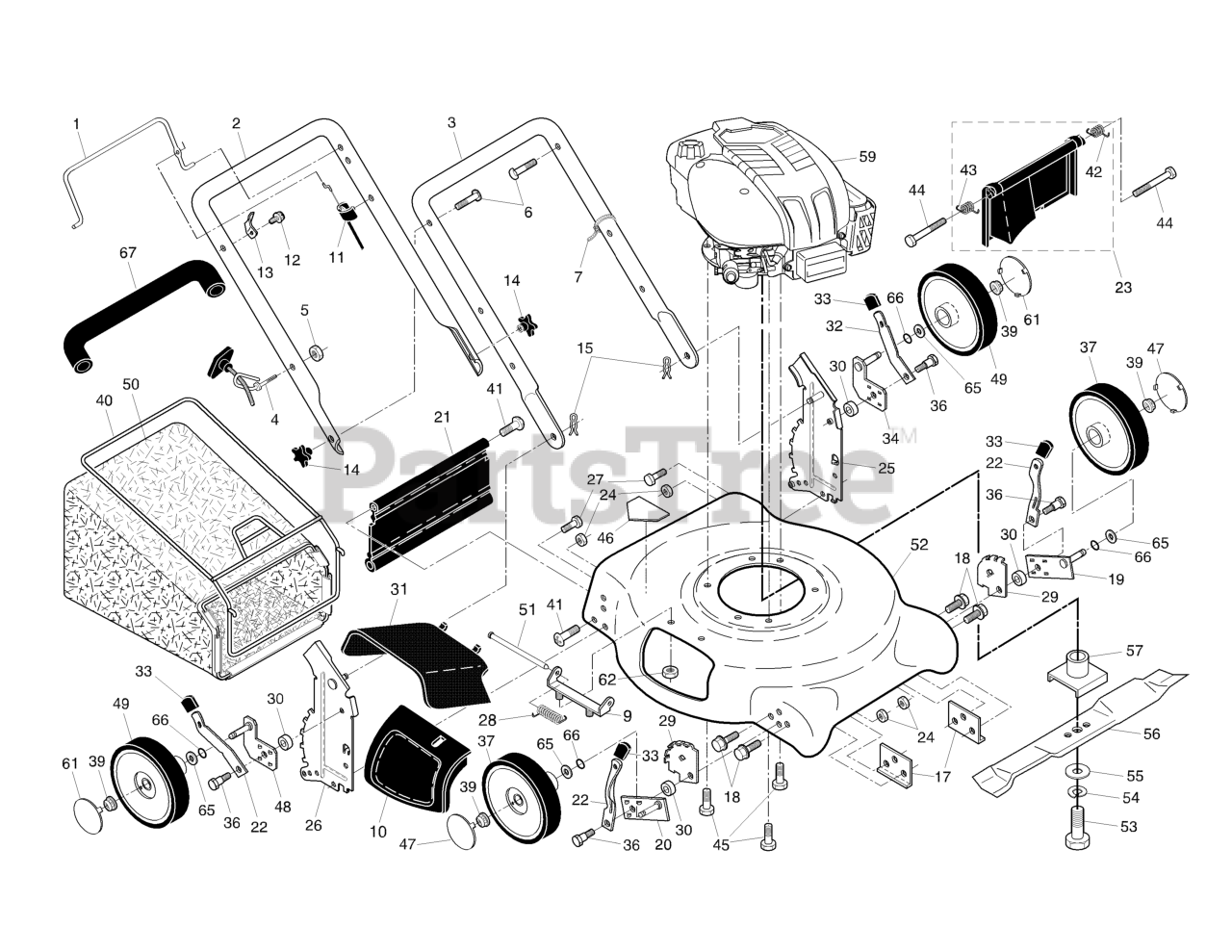

7021 CM (954224088-C) - Husqvarna 21" Walk-Behind Mower (2004-09) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532176555

CONTROL BAR

$

$

Not available

2

Husqvarna 532173658

UPPER HANDLE, WITH GRIP

Note: (Includes Foam Grip)

$

$

Not available

3

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$

$

Not available

10

Husqvarna 532185589

RP DOOR.MULCH.21".REAR.PUSH.GR
(Superseded to 581825801)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532176556

ENGINE ZONE CONTROL CABLE

$22.99

$

In Stock, Qty 14

0

12

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532125203

BRACKET
(Superseded to 532086899)

$6.99

$

In Stock, only 2 left!

0

14

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

15

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

17

Husqvarna 532174112

SUPPORT BRACKET
(Superseded to 532165946)

$

$

Not available

18

Husqvarna 817600406

SCREW 1/4X20

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 532189278

AXLE ARM ASSY LF
(Superseded to 532186578)

$

$

Not available

20

Husqvarna 532189277

AXLE ARM ASSY
(Superseded to 532186577)

$

$

Not available

21

Husqvarna 532188987

REAR SKIRT
(Superseded to 532413160)

$13.99

$

In Stock, Qty 6

0

22

Husqvarna 532168599

REPL BY 532 1683-60
(Superseded to 532168360)

$

$

Not available

23

Husqvarna 532186612

KIT.REAR.DOOR.21.DOMED.

Note: (Includes Springs)

$

$

Not available

24

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

25

Husqvarna 532174105

HANDLE BRACKET ASSEMBLY, LEFT
(Superseded to 586559801)

$

$

Not available

26

Husqvarna 532174106

HANDLE.BRKT.ASSY.RIGHT.BLACK
(Superseded to 586559801)

$

$

Not available

27

Husqvarna 532851856

SCREW
(Superseded to 817600406)

$3.49

$

In Stock, only 2 left!

0

28

Husqvarna 532152124

TORSION SPRING

$6.99

$

In Stock, Qty 12

0

29

Husqvarna 532165704

WHEEL BRACKET ADJUSTER
(Superseded to 532407494)

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532183901

SPACER.34X1.38X.22

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$13.99

$

In Stock, Qty 20+

0

32

Husqvarna 532185716

SELECTOR SPRING, REAR
(Superseded to 532180077)

$

$

Not available

33

Husqvarna 532185574

SELECTOR KNOB

$7.99

$

In Stock, Qty 8

0

34

Husqvarna 532185718

AXLE ARM ASSY 10"
(Superseded to 532181214)

$

$

Not available

36

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

37

Husqvarna 532180541

WHEEL 8 X 2 BLACK BALL BEARING

$

$

Not available

39

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

40

Husqvarna 532188813

FRAME, GRASS BAG
(Superseded to 532194642)

$

$

Not available

41

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

42

Husqvarna 532165766

SPRING (LH)

$

$

Not available

43

Husqvarna 532165767

SPRING (RH)

$

$

Not available

44

Husqvarna 532184193

BOLT

$

$

Not available

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

46

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

48

Husqvarna 532185717

ARM ASM AXLE 10"
(Superseded to 532181215)

$

$

Not available

49

Husqvarna 532180183

WHEEL.10X2.PR.HITRAC.BLACK

$

$

Not available

50

Husqvarna 532189788

GRASS BAG
(Superseded to 532410666)

$74.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$9.49

$

In Stock, Qty 13

0

52

Husqvarna 532163662

HOUSING ASSEMBLY
(Superseded to 532443257)

Note: (Includes Key Numbers 17, 18 and 46)

$

$

Not available

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532189028

BLADE.21.PUSH/RWGD/FWG

$22.99

$

In Stock, Qty 8

0

57

Husqvarna 532184590

BLADE ADAPTER
(Superseded to 532418373)

$13.99

$

In Stock, Qty 20+

0

59

Engine, Briggs & Stratton, Model Number 12H602

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

61

Husqvarna 532180123

HUBCAP.10.MAG.SILVER

$

$

Not available

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 16

0

66

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532193748

OWNERS MANUAL ENGLISH/FRENCH

$

$

Not available
