7021 F (961430042-02) - Husqvarna 21" Walk-Behind Mower (2010-01) Frame Parts Diagram

21" Walk-Behind Mower

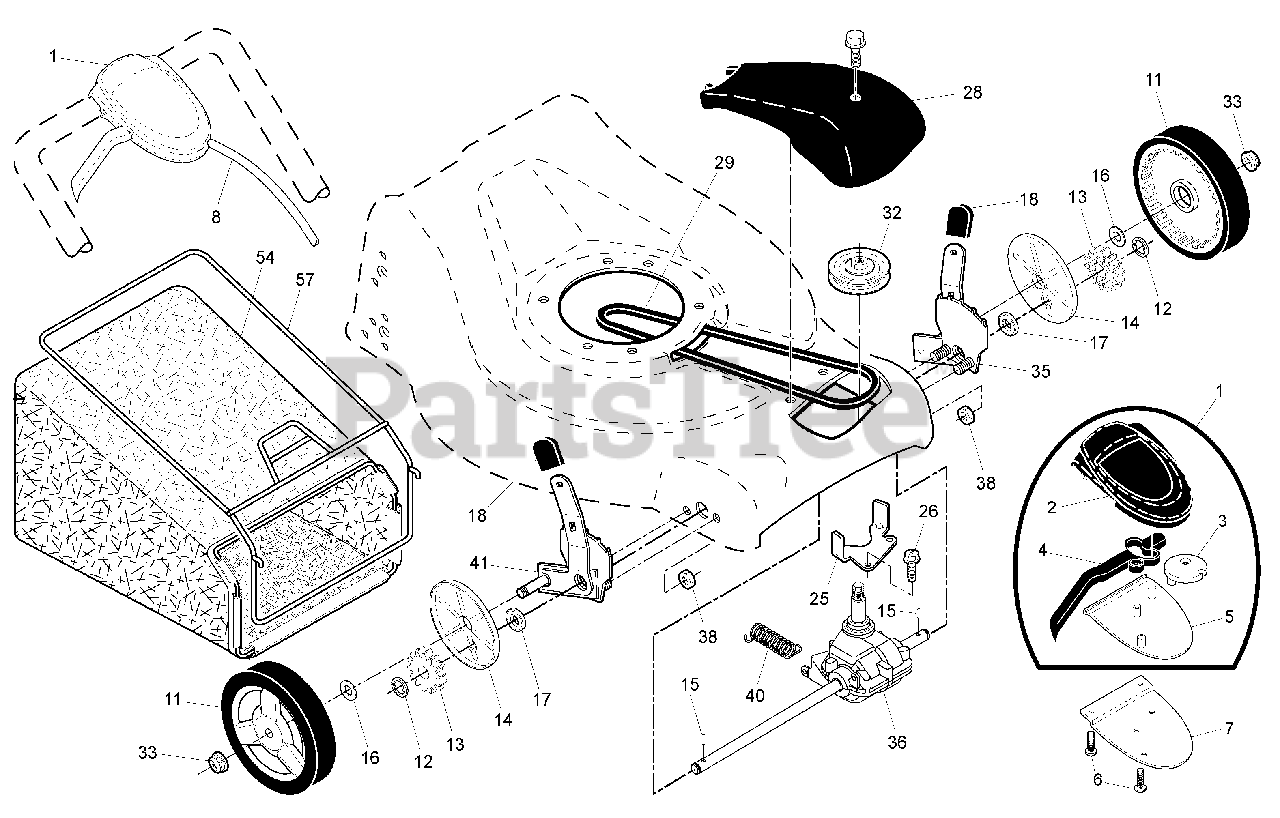

Frame Parts Diagram

  • Title

1

Husqvarna 532425661

Drive Control Assembly

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532411673

Cover, Drive Control, Upper
(Superseded to 532406260)

$

$

Not available

3

Husqvarna 532406262

Pulley

$

$

Not available

4

Husqvarna 532425662

Lever, Drive Control

$13.99

$

In Stock, Qty 8

0

5

Husqvarna 532411664

Cover, Drive Control, Lower
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Mounting Bracket, Drive Control

$

$

Not available

8

Husqvarna 532406259

Cable, Drive

$53.99

$

In Stock, Qty 15

0

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-Ring

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

Pinion

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

Pawl, Drive

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532421836

Bearing Assembly, Wheel Adjuster
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532411663

Belt Keeper
(Superseded to 532431711)

$

$

Not available

26

Husqvarna 532163409

Screw, Hi-Lo Thread

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 532432664

Drive Cover Assembly

Note: (Includes Mounting Screw and Pushnut)

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532194149

V-Belt

$24.99

$

In Stock, only 2 left!

0

32

Husqvarna 532194018

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

33

Husqvarna 532409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532404833

Gearcase Assembly, Complete

$120.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532406558

Spring

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 532424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$44.99

$

In Stock, only 3 left!

0

54

Husqvarna 532425732

Grassbag Assembly
(Superseded to 580953406)

$47.99

$

In Stock, only 2 left!

0

57

Husqvarna 532411950

Frame, Grassbag

$

$

Not available
