7021 RB (961430050-00) - Husqvarna 21" Walk-Behind Mower (2008-12) Repair Parts Parts Diagram

21" Walk-Behind Mower

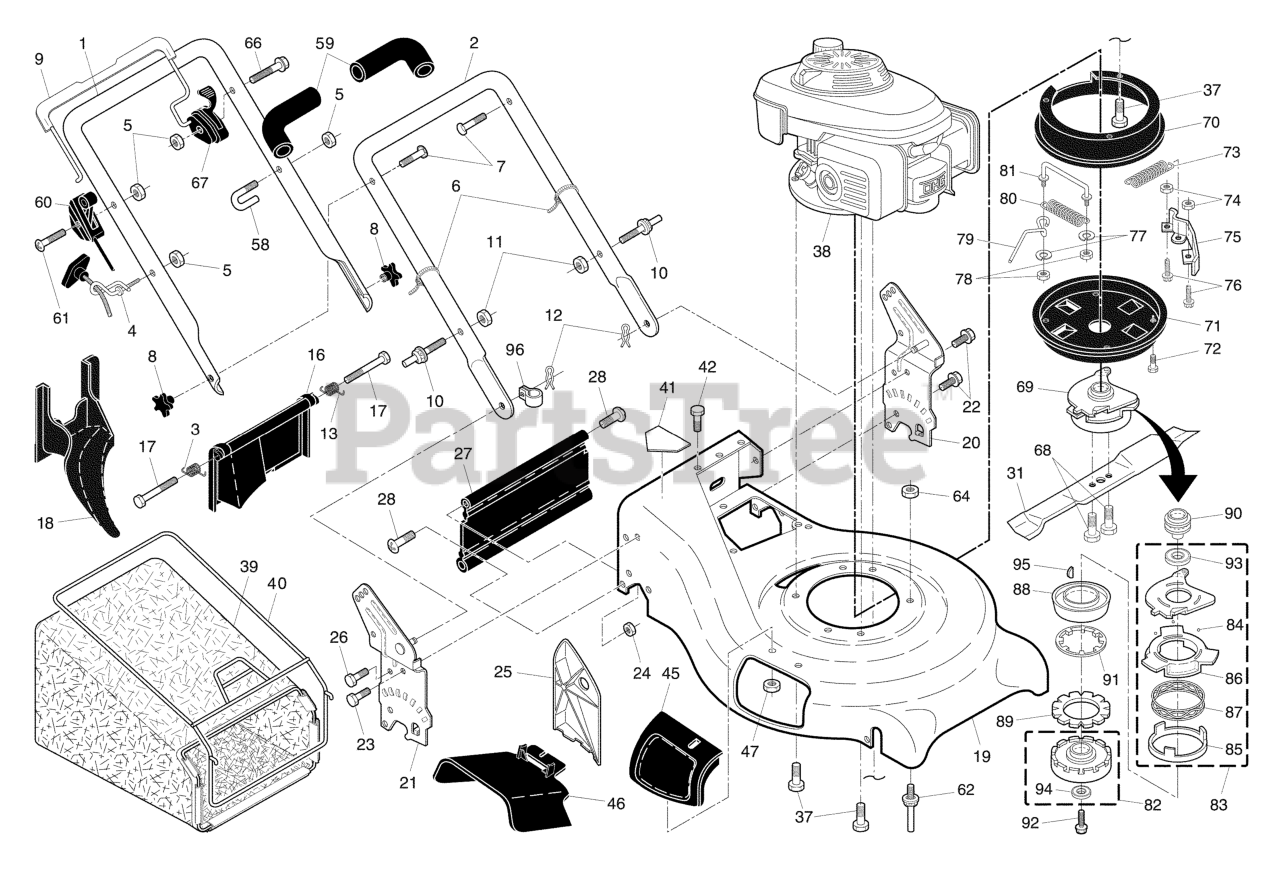

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

3

Husqvarna 532405416

SPRING.RH.REAR.DOOR.21.RWGD

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 17

0

9

Husqvarna 532186299

BAIL
(Superseded to 583754701)

$

$

Not available

10

Husqvarna 532188821

BOLT

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

12

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

13

Husqvarna 532405415

SPRING.LH.REAR.DOOR.21.RWGD

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 532408888

REAR DOOR ASSEMBLY
(Superseded to 532401815)

$

$

Not available

17

Husqvarna 532184193

BOLT

$

$

Not available

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$45.99

$

In Stock, only 1 left!

0

19

Husqvarna 532410871

HOUSING.21.RWD.MC.MS.EZ/ORANGE

$

$

Not available

20

Husqvarna 532418239

BRACKET.HNDL.ASM.21.RWGD.LT.OR

$

$

Not available

21

Husqvarna 532418251

BRACKET.HNDL.ASM.21.RWGD.RT.OR

$23.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

$2.49

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$3.99

$

In Stock, Qty 9

0

27

Husqvarna 532408442

SKIRT.REAR.21.RWGD.BLACK(2 2M)

$

$

Not available

28

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

31

Husqvarna 532180459

BLADE.21".BBC

$23.99

$

In Stock, only 2 left!

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

38

Engine, Honda, Model No. GCV160 (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

39

Husqvarna 532425667

RP.GBAG.93230247T.SILV.CROWN.B
(Superseded to 581002903)

$

$

Not available

40

Husqvarna 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

41

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, Qty 5

0

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$119.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532182003

CLIP

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

Note: (one side)

$

$

Not available

60

Husqvarna 532190878

CONTROL.THROTTLE.HONDA.BBC

$

$

Not available

61

Husqvarna 532183365

SCREW

$

$

Not available

62

Husqvarna 532182131

STUC.GUIDE.BELT.RWGD

$23.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197033

NUT.HEX.3/8-16
(Superseded to 596219001)

$2.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532189937

SCREW

$

$

Not available

67

Husqvarna 532196541

CONTROL.BBC.HV.GRY/ORG

$62.99

$

In Stock, only 2 left!

0

68

Husqvarna 532180460

BOLT.BLADE

$

$

Not available

69

Blade Brake / Clutch

Note: (Includes Key Numbers 82-95)

$

$

Not available

70

Husqvarna 532190930

COVER.BELT.BBC.AW.TOP

$

$

Not available

71

Husqvarna 532180191

COVER.BELT

$45.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 17

0

73

Husqvarna 532180393

SPRING.BBC

$7.99

$

In Stock, Qty 8

0

74

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

75

Husqvarna 532190929

BRAKE, CLUTCH
(Superseded to 532188525)

$

$

Not available

76

Husqvarna 874780410

BOLT
(Superseded to 596582501)

$3.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532053998

WASHER

$

$

Not available

78

Husqvarna 873510600

NUT

$

$

Not available

79

Husqvarna 532188545

BELT KEEPER

$23.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532180394

SPRING.LINK.BBC

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532180188

LINK.TORQUE.BBC

$

$

Not available

82

Husqvarna 532195049

HOLDER.ASM.BLADE.HONDA.

$

$

Not available

83

Husqvarna 532195072

BALL.CONTROL.PLATE.ASSY.BBC.MO

$

$

Not available

84

Husqvarna 532195053

BALL.STEEL

$

$

Not available

85

Husqvarna 532195073

PLATE.SPRING.HOOK

$

$

Not available

86

Husqvarna 532195074

PLATE.BRAKE

$

$

Not available

87

Husqvarna 532195057

SPRING BALL PLATE

$

$

Not available

88

Husqvarna 532195060

DISC.DRIVE

$

$

Not available

89

Husqvarna 532195063

DISK.DRIVEN

$

$

Not available

90

Husqvarna 532195064

PULLEY.DRIVE.HONDA.

$

$

Not available

91

Husqvarna 532195065

SPRING.CLUTCH.HONDA.

$

$

Not available

92

Husqvarna 532195067

BOLT.FLANGE

$

$

Not available

93

Husqvarna 532195068

BEARING.RADIAL BALL#6006

$

$

Not available

94

Husqvarna 532195069

BEARING RAD. BALL#6204

$

$

Not available

95

Husqvarna 532195070

KEY.WOODRUFF.16X15.HONDA

$7.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: (not shown)

$3.99

$

Usually ships in 3-10 days

0
