7021 RS (961430017-00) - Husqvarna 21" Walk-Behind Mower (2006-01) Drive Assembly Parts Diagram

21" Walk-Behind Mower

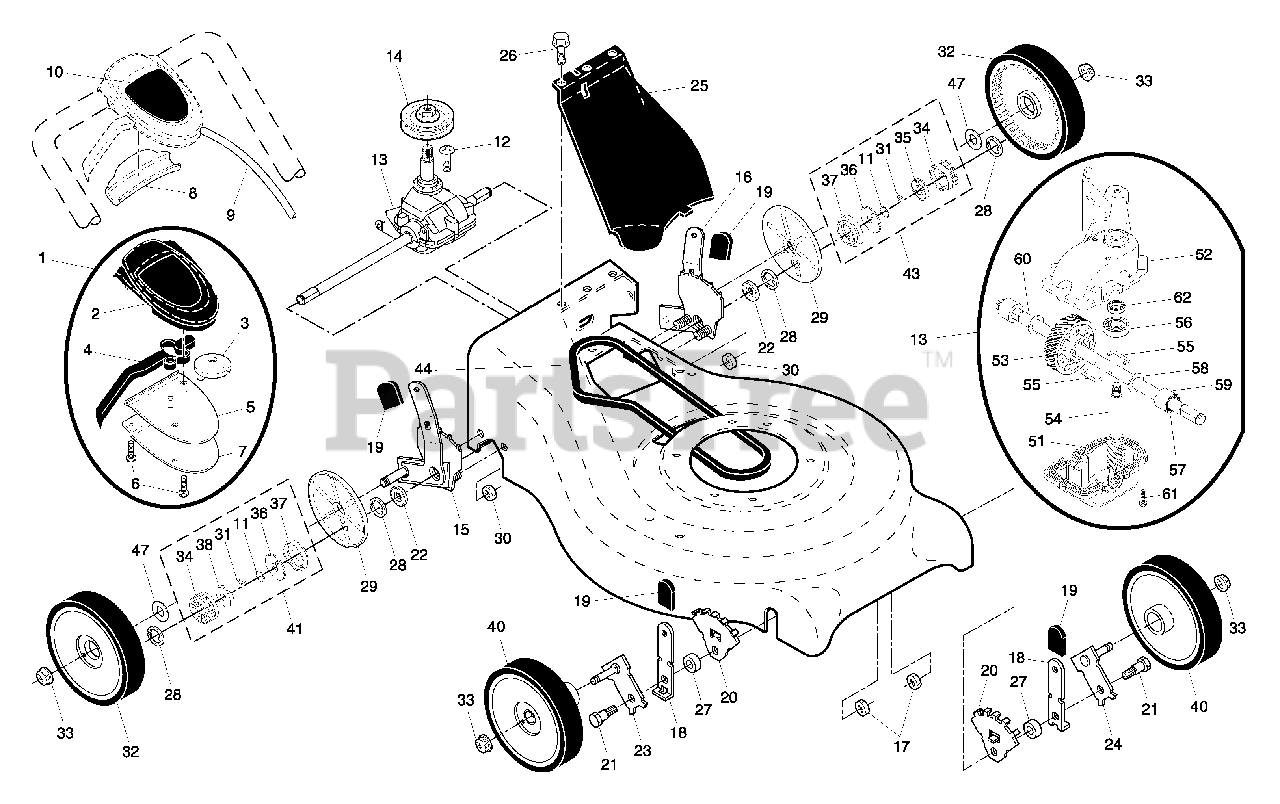

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532402790

Drive Control Assembly

Note: (Includes Cable)

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195761

Cover, Top
(Superseded to 532414555)

$

$

Not available

3

Husqvarna 532187353

Pulley

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 532195762

Cover, Bottom
(Superseded to 532414555)

$

$

Not available

6

Husqvarna 532181698

Screw

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Mounting Bracket

$

$

Not available

8

Husqvarna 532184987

Cap, Bottom

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532196002

Cable, Drive

$

$

Not available

10

Husqvarna 532189074

Decal, Drive Control

$

$

Not available

11

Husqvarna 532188291

Spring, Torsion

$5.99

$

In Stock, Qty 13

0

12

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 6

0

13

Husqvarna 532193354

Gear Case Assembly, Complete

$109.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532193443

Pulley, Drive

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532197235

Kit, Wheel Adjuster Assembly, RH

Note: (Includes Knob and Bearing)

$

$

Not available

16

Husqvarna 532197234

Kit, Wheel Adjuster Assembly, LH

Note: (Includes Knob and Bearing)

$48.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532166785

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

18

Husqvarna 532168599

Spring, Selector
(Superseded to 532168360)

$

$

Not available

19

Husqvarna 532196401

Knob, Selector Spring

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 532165704

Bracket, Wheel Adjusting
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532160828

Bolt, Shoulder, Hex Head

$

$

Not available

22

Husqvarna 532191039

Bearing, Ball
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 532189278

Axle Arm Assembly, RH
(Superseded to 532186578)

$

$

Not available

24

Husqvarna 532189277

Axle Arm Assembly, LH
(Superseded to 532186577)

$

$

Not available

25

Husqvarna 532400783

Cover Drive

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x .50

$6.49

$

In Stock, Qty 6

0

27

Husqvarna 532183901

Spacer

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 873800400

Nut, Hex
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175098

Pawl

$6.49

$

In Stock, Qty 10

0

32

Husqvarna 532400543

Wheel & Tire Assembly, Rear 8 x 1-3/4
(Superseded to 581009202)

$24.99

$

In Stock, Qty 8

0

33

Husqvarna 532083923

Nut, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532175103

Gear

$

$

Not available

35

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

36

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532184172

Seal, Friction

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 532175102

Retainer, Drive, RH

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 532400542

Wheel & Tire Assembly, Front 8 x 1-3/4

$18.99

$

In Stock, Qty 6

0

41

Husqvarna 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

43

Husqvarna 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

44

Husqvarna 532183688

V-Belt

$15.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532067725

Washer

$7.49

$

In Stock, Qty 20+

0

51

Husqvarna 532187530

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$11.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532187531

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$24.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532187533

Shaft, Input

$30.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532183505

Wire, Formed

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532183508

Seal, Output Shaft

$6.49

$

In Stock, only 2 left!

0

58

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532183511

Bushing

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532197385

Shaft, Output

$46.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183514

Seal, Input Shaft

$7.49

$

In Stock, only 2 left!

0
