7021 RS - Husqvarna 21" Walk-Behind Mower (2008-01) FRAME Parts Diagram

21" Walk-Behind Mower

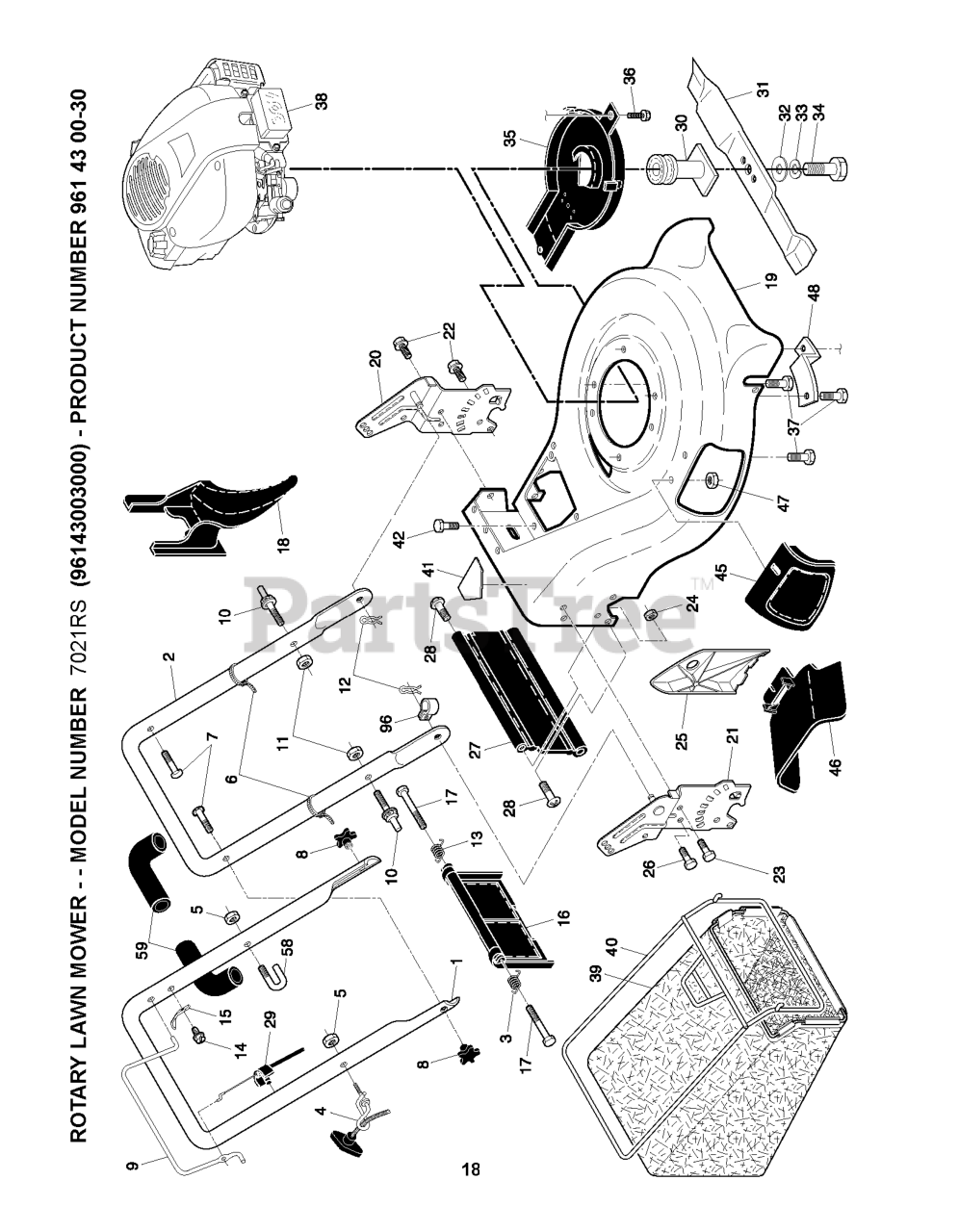

FRAME Parts Diagram

  • Title

5

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 532408442

SKIRT.REAR.21.RWGD.BLACK(2 2M)

$

$

Not available

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

42

Husqvarna 532054583

SCREW

$

$

Not available

21

Husqvarna 532418251

BRACKET.HNDL.ASM.21.RWGD.RT.OR

$23.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405416

SPRING.RH.REAR.DOOR.21.RWGD

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 532408888

REAR DOOR ASSEMBLY
(Superseded to 532401815)

$

$

Not available

59

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

47

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$45.99

$

In Stock, only 1 left!

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

$2.49

$

Usually ships in 3-10 days

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: not shown

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

BOLT

$

$

Not available

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

2

Husqvarna 532197202

HANDLE.LOWER.21.GREY

$

$

Not available

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532405843

DEBRIS SHIELD
(Superseded to 532413036)

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

46

Husqvarna 532190576

DEFLECTOR
(Superseded to 532169699)

$

$

Not available

19

Husqvarna 532410453

HOUSING.21.RWD.MC.ORANGE.WALK

$

$

Not available

36

Husqvarna 532192325

SCREW.HEX.WSH

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$3.99

$

In Stock, Qty 9

0

41

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532405415

SPRING.LH.REAR.DOOR.21.RWGD

$5.99

$

In Stock, only 1 left!

0

40

Husqvarna 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532418239

BRACKET.HNDL.ASM.21.RWGD.LT.OR

$

$

Not available

1

Husqvarna 532199982

HANDLE.ASM.UP.OFF/EZ.CR.W/GRIP
(Superseded to 583444201)

Note: Includes Foam Grip

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$119.99

$

In Stock, only 2 left!

0

30

Husqvarna 532189179

BLADE ADAPTOR / PULLEY
(Superseded to 532421176)

$39.99

$

In Stock, only 2 left!

0

31

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$23.99

$

In Stock, Qty 12

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 532161586

RP CABLE
(Superseded to 532436337)

$9.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532182003

CLIP

$9.49

$

Usually ships in 3-10 days

0

38

NEEDS DESCRIPTION

Note: For engine service and replacement parts call Honda at 1-800-426-7701

$

$

Not available

39

Husqvarna 532409726

GRASSBAG
(Superseded to 532410668)

$

$

Not available

10

Husqvarna 532188821

BOLT

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

8

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

48

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$

$

Not available

9

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available
