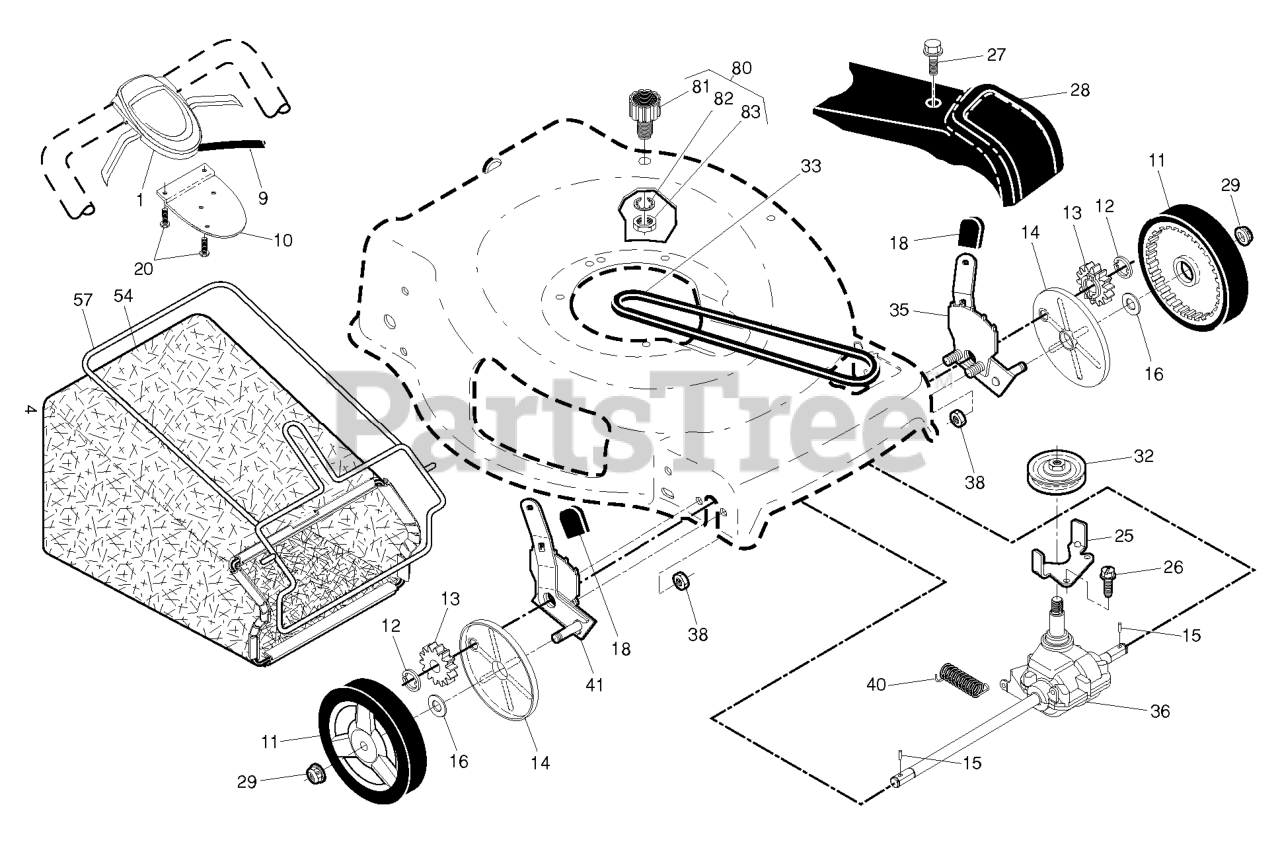

7022 KF (961430111-00) - Husqvarna 22" Walk-Behind Mower (2013-12) DRIVE Parts Diagram

22" Walk-Behind Mower

DRIVE Parts Diagram

  • Title

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

83

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$

$

Not available

36

Husqvarna 532424741

RP.TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$148.99

$

In Stock, Qty 8

0

41

Husqvarna 581497903

RP_ADJUSTER.ASM.9.22+/RF/LR.21
(Superseded to 581497908)

$22.99

$

In Stock, Qty 20+

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$35.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$8.49

$

In Stock, Qty 20+

0

54

Husqvarna 580947315

GBAG.A361029ER.HUSQ.GRY/SIL
(Superseded to 580947302)

$77.99

$

In Stock, Qty 13

0

40

Husqvarna 532406558

SPRING

$9.99

$

In Stock, Qty 20+

0

35

Husqvarna 581497904

RP ADJ.ASM.9.22+/LF/RR.21/RF
(Superseded to 581497907)

$

$

Not available

33

Husqvarna 532426609

BELT.DRIVE.FWD.
(Superseded to 532196853)

$20.99

$

In Stock, Qty 20+

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 7

0

26

Husqvarna 532163409

SCREW

$3.99

$

In Stock, Qty 10

0

82

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532431649

CABLE.CONTROL.22FGD.GEN2

$53.99

$

In Stock, Qty 12

0

80

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$21.99

$

In Stock, Qty 6

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 579708917

CONTROL.AW2.22FG.BS.GRAY/BLACK

$102.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 1 left!

0

28

Husqvarna 532421097

COVER.DRIVE.22.LABEL.HUSQVARNA

$

$

Not available

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

81

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$21.99

$

In Stock, only 1 left!

0

57

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$45.99

$

In Stock, Qty 20+

0
