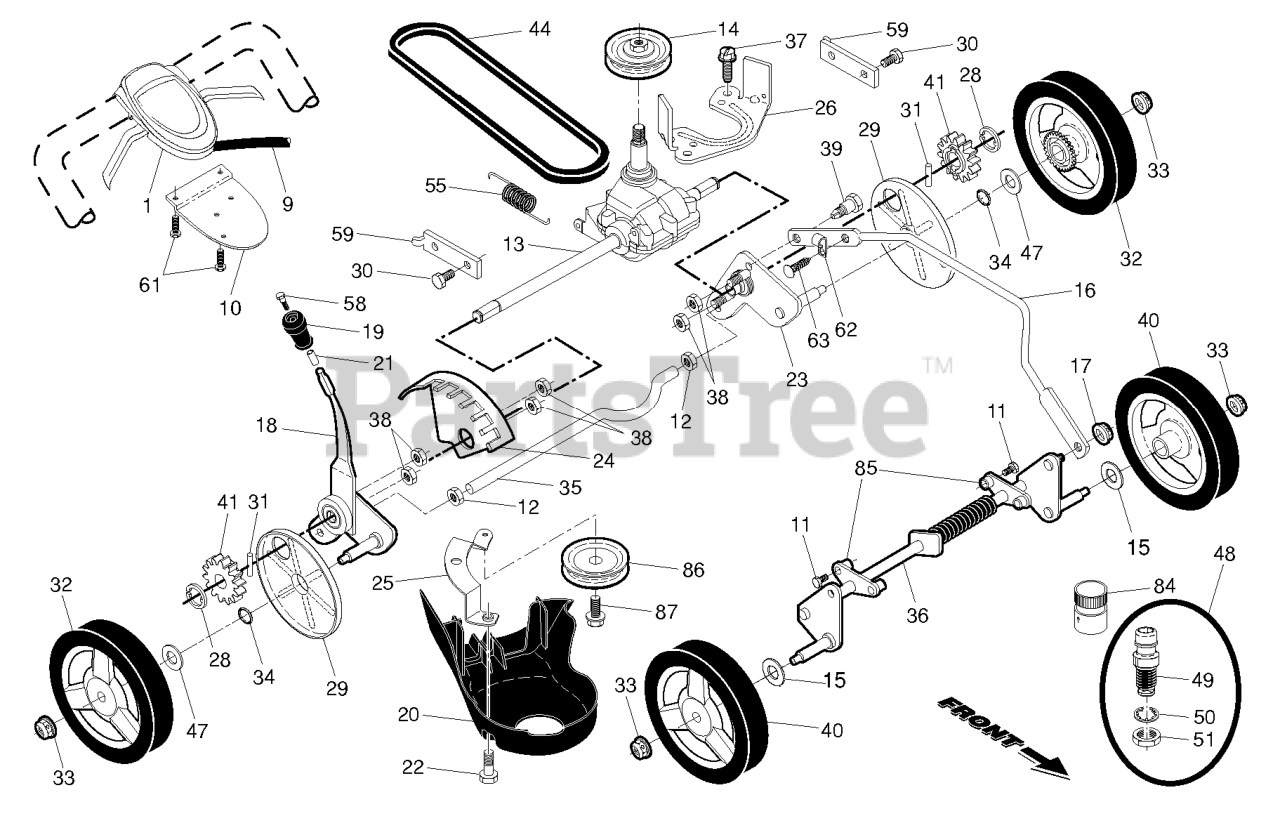

7022 R - Husqvarna 22" Walk-Behind Mower (Original) DRIVE Parts Diagram

22" Walk-Behind Mower

DRIVE Parts Diagram

  • Title

62

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532435242

SCREW.PLASTIC.ANCHOR.5/16

$

$

Not available

35

Husqvarna 532430598

AXLE.REAR.RGD

$40.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

Note: For 96143010600

$7.49

$

In Stock, only 4 left!

0

86

Husqvarna 580364301

RP PULLEY.AWD.IDLER
(Superseded to 587969201)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 581975503

TRANMISSION.ASM.22+RGD.W/IDLER
(Superseded to 581975507)

$

$

Not available

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532447189

AXLE.ASM.FRT.RGD.BZP
(Superseded to 583762601)

$

$

Not available

31

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

$9.99

$

In Stock, Qty 13

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

18

Husqvarna 532436445

$

$

Currently unavailable

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$21.99

$

In Stock, only 1 left!

0

11

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, Qty 6

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

23

Husqvarna 532432432

Wheel Axle Assembly, LH

$

$

Currently unavailable

30

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

9

Husqvarna 581952101

CABLE.DRIVE.RWD.WALK.

$26.99

$

In Stock, Qty 20+

0

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

22

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 581685101

WHEEL.8X1.75.3SPK.RAD3.GREY

$24.99

$

In Stock, Qty 10

0

44

Husqvarna 532406557

RP.BELT.DRIVE.RGD.SS.WALK
(Superseded to 580364604)

$10.99

$

In Stock, Qty 20+

0

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, Qty 5

0

58

Husqvarna 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532194128

PULLEY

$18.99

$

In Stock, Qty 16

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 3 left!

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 3 left!

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

63

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

Usually ships in 3-10 days

0

87

Husqvarna 581127601

SCREW

$7.49

$

In Stock, Qty 20+

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581313802

BRACKET.DRIVE.COVER.RGD.

$

$

Not available

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 3 left!

0

29

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

1

Husqvarna 581950505

CONTROL.AW2.22+RG.BS.GEN.BK/BK
(Superseded to 589818808)

Note: Includes Cable

$47.99

$

In Stock, Qty 20+

0

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

85

Husqvarna 532439077

BRACKET.FRT.AXLE.SUPPORT

$26.99

$

In Stock, Qty 20+

0
