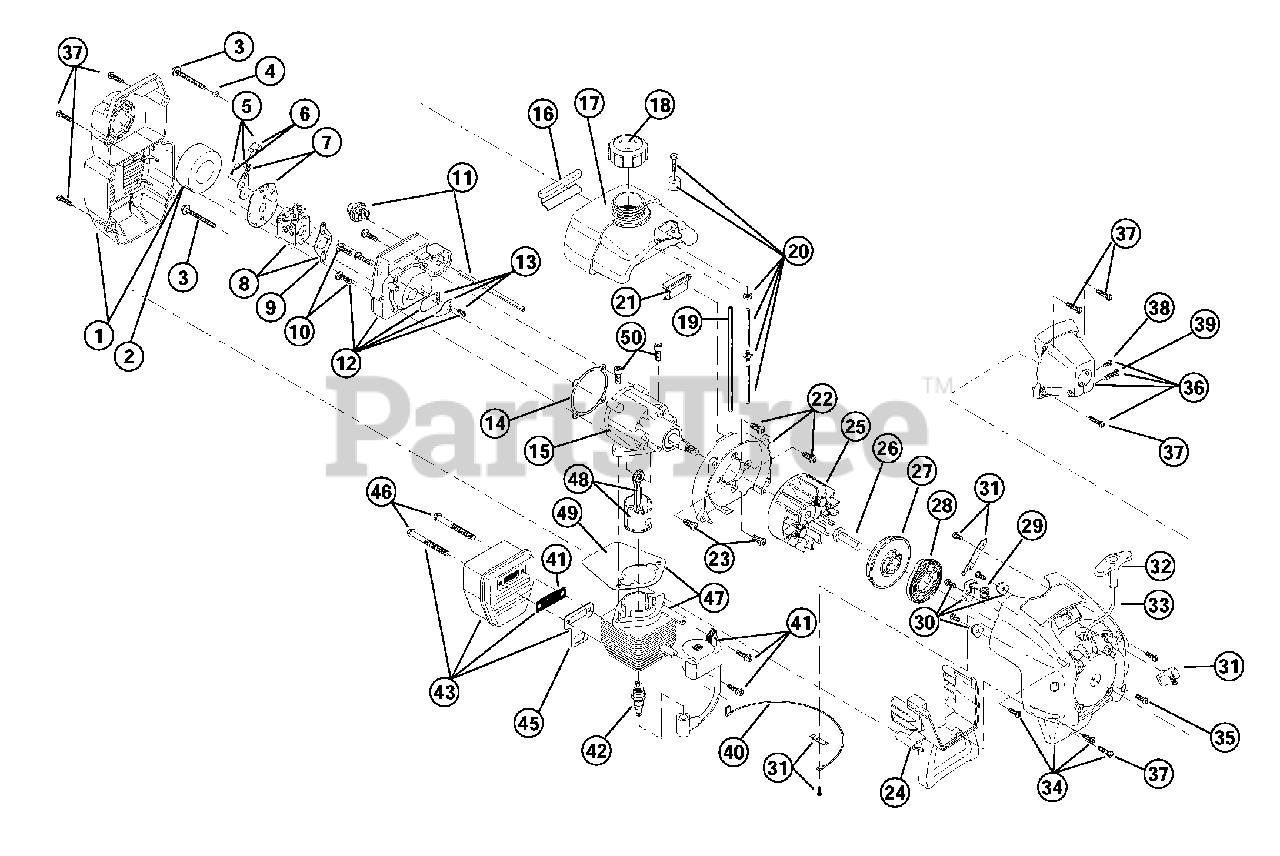

704r (41BD704G034) - Ryobi String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 40)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 13

0

5

MTD 791-182061

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182060

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 791-182062

Carburetor Assembly
(Superseded to 791-182875)

Note: (includes 9)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

15

MTD 753-04272

Crank Case Service Assembly

Note: (includes 10, 24, 25 & 41)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-182438

Fuel Tank Assembly
(Superseded to 791-182612)

Note: (includes 18-20)

$18.99

$

In Stock, Qty 18

0

18

MTD 791-181559

Fuel Cap Assembly

$

$

Currently unavailable

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

26

MTD 753-04323

Spacer
(Superseded to 753-04814)

$78.99

$

In Stock, only 1 left!

0

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-181442

Switch Assembly

Note: (includes 40)

$19.99

$

Usually ships in 3-6 days

0

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

33

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

34

MTD 791-181443

Starter Housing Assembly

Note: (includes 27-33 & 40)

$60.99

$

Usually ships in 3-6 days

0

35

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (includes 37-39)

$19.99

$

Usually ships in 3-6 days

0

37

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 18

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

39

MTD 791-181345

Clamping Screw

$3.99

$

In Stock, Qty 18

0

40

MTD 791-180036

Wire Lead

$

$

Not available

41

MTD 791-181937

Module Assembly
(Superseded to 753-04125)

$

$

Not available

42

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

43

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 48-50)

$104.99

$

Usually ships in 3-6 days

0

44

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

45

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

46

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

47

MTD 791-181622

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 53)

$78.99

$

In Stock, only 1 left!

0

48

MTD 791-684449

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

49

MTD 753-1197

Cylinder Gasket

$

$

Not available

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04134

Engine Gasket Kit

Note: Items Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit

Note: Items Not Shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-181873

Gasket Diaphragm Repair Kit

Note: Items Not Shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Items Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04173

Short Block Assembly

Note: (includes 10, 15, 23, 42, 46-50); Items Not Shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: Items Not Shown

$9.99

$

Usually ships in 3-6 days

0

MTD 791-610309

Crankcase Seal

Note: Items Not Shown

$16.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Items Not Shown

$10.99

$

In Stock, only 1 left!

0
