7060197 - Snapper Front Load Carrier Front Load Carrier Parts Diagram

Front Load Carrier

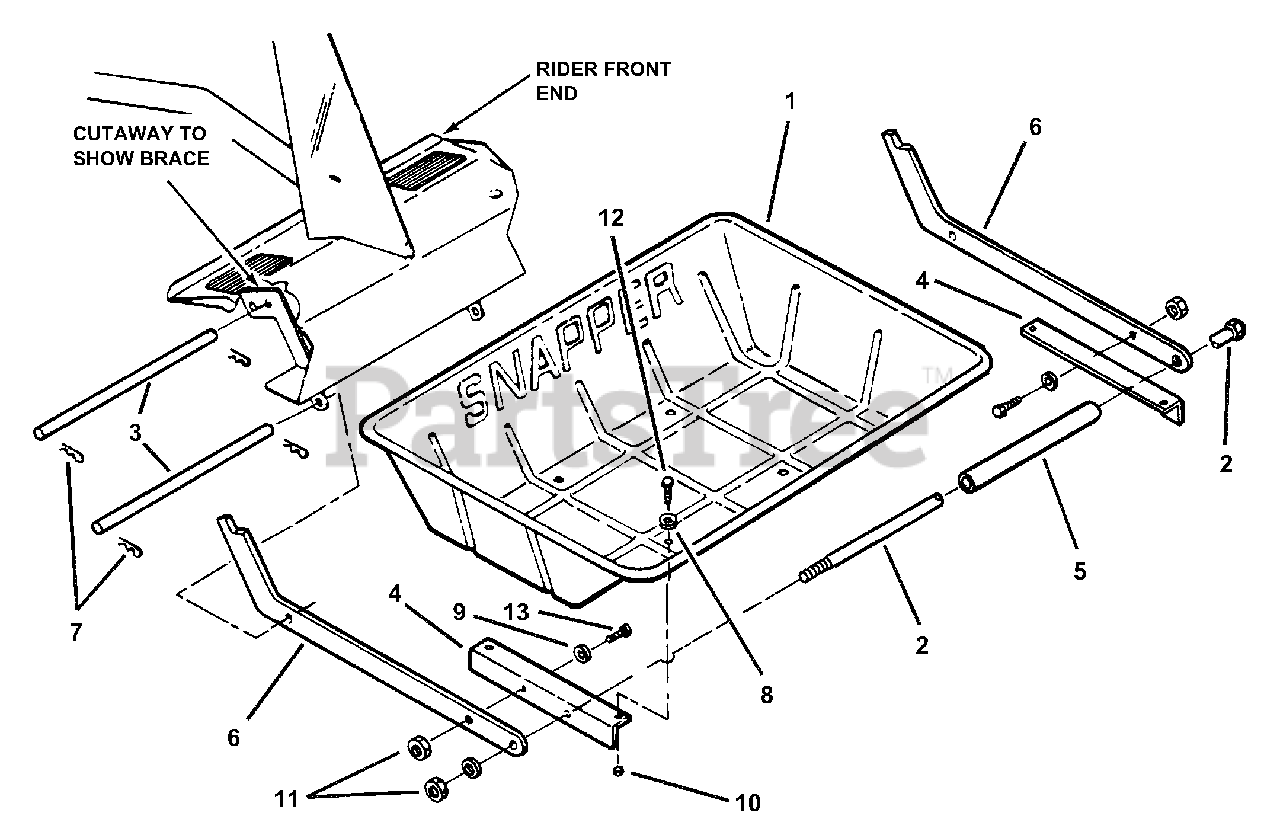

Front Load Carrier Parts Diagram

  • Title

--

Snapper 7060197

KIT, Load Carrier

$

$

Currently unavailable

1

Snapper 7011822

BOX, Tote (18" x 24" x 5")
(Superseded to 7011822YP)

$119.99

$

Usually ships in 2-12 days

0

2

Snapper 7011832

BOLT, 3/8-16 x 10" Hex

$

$

Currently unavailable

3

Snapper 7021153

PIN, Holding
(Superseded to 7021153YP)

$21.99

$

Usually ships in 2-12 days

0

4

Snapper 7031737

BRACE

$

$

Not available

5

Snapper 7031738

SPACER, Box

$

$

Currently unavailable

6

Snapper 7037342

ARM
(Superseded to 7037342YP)

$39.99

$

Usually ships in 2-12 days

0

7

Snapper 7011714

HAIR PIN, 3/32 x 1-7/8"
(Superseded to 7011714YP)

Note: Included in Hardware Bag 60438

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055 (Included in Hardware Bag 60438)

$4.49

$

In Stock, Qty 17

0

9

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Included in Hardware Bag 60438

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

Note: Included in Hardware Bag 60438

$3.49

$

In Stock, only 2 left!

0

11

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

Note: Included in Hardware Bag 60438

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090541

SCREW, 1/4-28 x 3/4" Hex Head Cap
(Superseded to 7090541YP)

Note: Included in Hardware Bag 60438

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563 (Included in Hardware Bag 60438)

$11.99

$

In Stock, Qty 5

0
