7060370 - Snapper 54" Mower Attachment for MF Series Gear Box & U-Joint Parts Diagram

54" Mower Attachment for MF Series

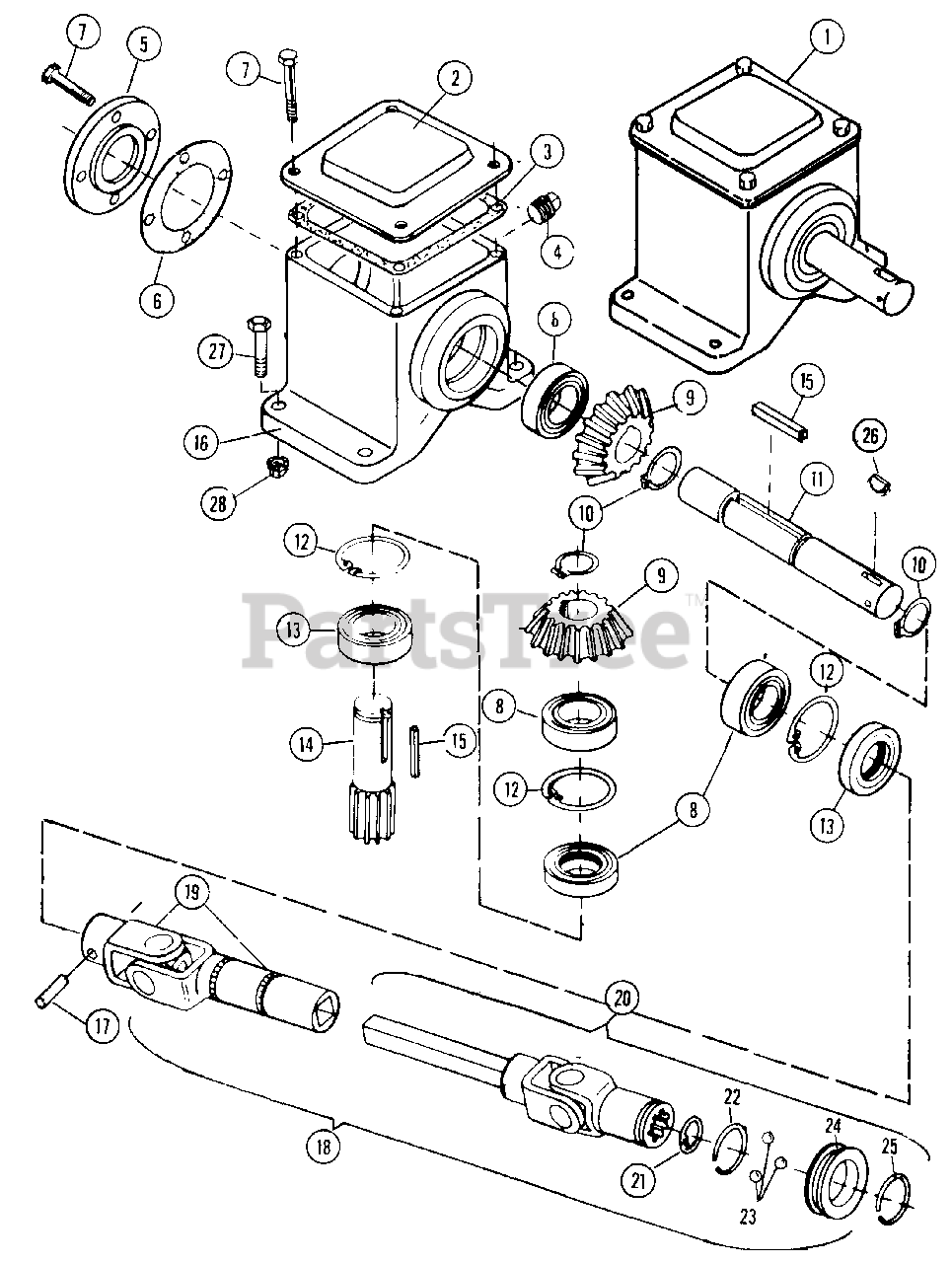

Gear Box & U-Joint Parts Diagram

  • Title

1

Snapper 7050936

(NLA) GEAR BOX ASSEMBLY

Note: (INCLUDES ITEMS 2-16)

$

$

Currently unavailable

2

Snapper 7037869

COVER, GEAR BOX (TOP)

$

$

Currently unavailable

3

Snapper 7018329

GASKET, COVER

$

$

Not available

4

Snapper 7012832

(NLA) PLUG, 1/2" P.T.

$

$

Currently unavailable

5

Snapper 7018352

(NLA) COVER, GEAR BOX (SIDE)

$

$

Currently unavailable

6

Snapper 7037870

SHIM, SIDE COVER

Note: (AS REQUIRED)

$

$

Currently unavailable

7

Snapper 7090580

BOLT, 1/4C x 3/4 HEX HEAD

$

$

Currently unavailable

8

Snapper 7012828

BEARING, BALL

$

$

Not available

9

Snapper 7019597

PINION-GEAR

$

$

Not available

10

Snapper 7012829

RING, RETAINING

$

$

Currently unavailable

11

Snapper 7021816

SHAFT, GEAR BOX INPUT

$

$

Not available

12

Snapper 7012827

RING, RETAINING

$

$

Not available

13

Snapper 7019598

SEAL, OIL

$

$

Not available

14

Snapper 7029531

SHAFT, GEAR BOX OUTPUT
(Superseded to 7029531YP)

$126.99

$

Usually ships in 2-12 days

0

15

Snapper 7012830

KEY, STRAIGHT
(Superseded to 2001022MA)

$4.99

$

In Stock, Qty 11

0

16

Snapper 7019881

(NLA) HOUSING, GEAR BOX

$

$

Currently unavailable

17

Snapper 7012834

(NLA) PIN, GROOVE 1/4 x 1-3/4

$

$

Currently unavailable

18

Snapper 7019882

UNIVERSAL JOINT ASSEMBLY

Note: (INCLUDES ITEMS 19-25)

$

$

Currently unavailable

19

Snapper 7013829

(NLA) JOINT & TUBE ASSEMBLY

$

$

Currently unavailable

20

Snapper 7013827

(NLA) JOINT & SHAFT ASSEMBLY

Note: (INCLUDES ITEMS 21-25)

$

$

Currently unavailable

21

Snapper 7013828

(NLA) RING, RETAINING

$

$

Currently unavailable

22

Snapper 7018361

RING, SPRING RETAINING

$

$

Not available

23

Snapper 7012854

BALL, 3/8" DIAMETER

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 7019609

COLLAR, LOCK

$

$

Not available

25

Snapper 7018362

RING, RETAINING

$

$

Not available

26

Snapper 7010211

KEY, WOODRUFF
(Superseded to 7010211YP)

Note: Was 12684

$3.99

$

In Stock, Qty 19

0

27

Snapper 7091328

BOLT, 3/8-16 x 1-1/4 HEX HEAD
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7091619

NUT, 3/8-16 HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
