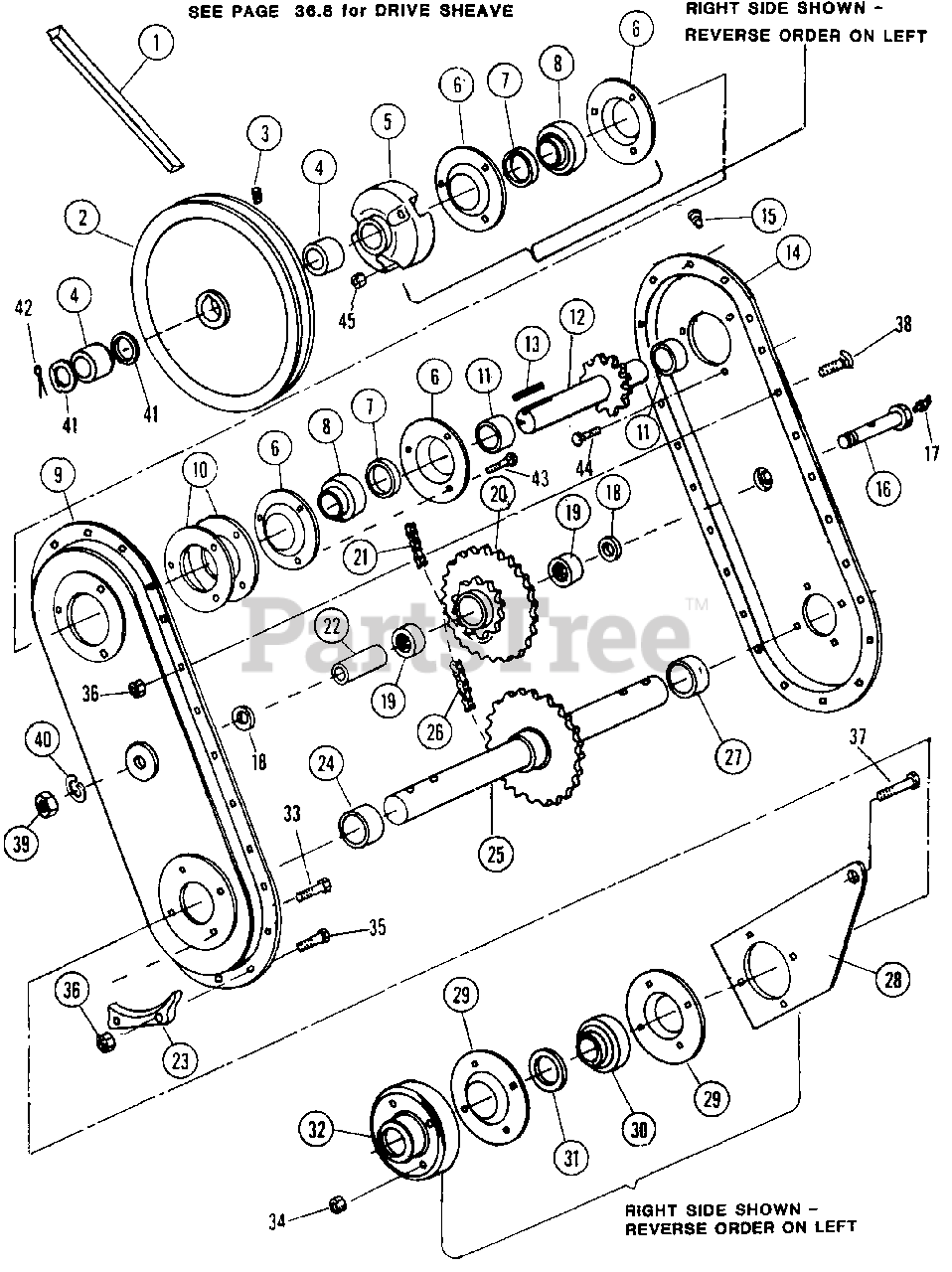

7060373 - Snapper 36" Rear PTO Tiller Attachment for MF Series Chain Drive, Driven Belt Parts Diagram

36" Rear PTO Tiller Attachment for MF Series

Chain Drive, Driven Belt Parts Diagram

  • Title

1

Snapper 7013205

BELT, DRIVE

$

$

Currently unavailable

2

Snapper 7013204

SHEAVE, DRIVEN

$

$

Currently unavailable

3

Snapper 7090848

SETSCREW, 5/16 x 1/2 HEX SOCKET
(Superseded to 7090848SM)

Note: Was 13261

$10.99

$

In Stock, only 1 left!

0

4

Snapper 7013086

SPACER, UPPER SHAFT 1.05" DI x 1.312" OD x .41"

$

$

Currently unavailable

5

Snapper 7013087

HUB, PIVOT

$

$

Currently unavailable

6

Snapper 7013265

FLANGETTE, 3-HOLE

$

$

Currently unavailable

7

Snapper 7013064

LOCK-COLLAR, BEARING

$

$

Currently unavailable

8

Snapper 7013032

BEARING, SPROCKET SHAFT

$

$

Currently unavailable

9

Snapper 7013206

HOUSING, CHAIN CASE - RIGHT HAND

$

$

Currently unavailable

10

Snapper 7013787

SPACER, UPPER RING

$

$

Currently unavailable

11

Snapper 7013788

SPACER, UPPER SHAFT 1.05" x 1.31" x .3"

$

$

Currently unavailable

12

Snapper 7013208

SHAFT & SPROCKET - UPPER

$

$

Currently unavailable

13

Snapper 7013250

KEY, SQUARE, 1/4X1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7013207

HOUSING, CHAIN CASE - LEFT HAND

$

$

Currently unavailable

15

Snapper 7013093

COVER, OIL HOLE

$

$

Currently unavailable

16

Snapper 7013215

BOLT, SPECIAL 1/2-20x3.5 Drilled 1/4 for Fitting

$

$

Currently unavailable

17

Snapper 7010909

FITTING, GREASE 1/4-28 45 Deg. W/Check Ball
(Superseded to 7010909YP)

Note: Was 13793

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7013214

WASHER, Bronze Thrust .765" x 1.562" x .092"

$

$

Currently unavailable

19

Snapper 7013033

BEARING, NEEDLE SEALED .75" ID x 1" OD x .688"

Note: Torrington #JT1211

$

$

Not available

20

Snapper 7013212

CLUSTER SPROCKET

$

$

Currently unavailable

21

Snapper 7013211

CHAIN, UPPER ASA #50, 35 Pitches

$

$

Currently unavailable

22

Snapper 7013213

BEARING, TUBE

$

$

Currently unavailable

23

Snapper 7013084

WEAR-BAR

$

$

Currently unavailable

24

Snapper 7013219

SPACER, LONG 1.38" x 1.66" x 1.09"

$

$

Currently unavailable

25

Snapper 7013217

SHAFT, TINE

$

$

Currently unavailable

26

Snapper 7013216

CHAIN, TINE SHAFT DRIVE ASA #60 36 Pitches

$

$

Currently unavailable

27

Snapper 7013218

SPACER, SHORT 1.38" x 1.66" x .385"

$

$

Currently unavailable

28

Snapper 7013092

PLATE, ATTACHING

$

$

Currently unavailable

29

Snapper 7013252

FLANGETTE, 4-HOLE

$

$

Currently unavailable

30

Snapper 7013002

BEARING 1.25" ID

$

$

Currently unavailable

31

Snapper 7013259

LOCK-COLLAR, TINE SHAFT BEARING

$

$

Currently unavailable

32

Snapper 7013091

CAP, BEARING GUARD

$

$

Currently unavailable

33

Snapper 7090497

BOLT, 3/8 x 1-1/2 CARRIAGE

$

$

Not available

34

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

35

Snapper 7090505

BOLT, 1/4 x 2 HEX HEAD
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7062038

BOLT, 1/4 x 4 HEX HEAD

Note: Was 90656

$

$

Currently unavailable

38

Snapper 7091604

BOLT, 1/4 x 1/2 CARRIAGE
(Superseded to 703978)

Note: Was 90675

$3.99

$

In Stock, only 3 left!

0

39

Snapper 7090625

NUT, 1/2-20 HEX

$

$

Not available

40

Snapper 7090254

LOCKWASHER
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 7013370

WASHER, SPECIAL
(Superseded to 7013370YP)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 7091809

PIN, 1/8 x 1-1/2 COTTER
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

In Stock, only 2 left!

0

43

Snapper 7090760

BOLT, 5/16-18 x 2 CARRIAGE

$

$

Not available

44

Snapper 7090192

BOLT, 5/16-18 x 1-1/2 CARRIAGE
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 7090194

NUT, 5/16-18 HEX.LOCK

$

$

Currently unavailable
