7060374 - Snapper 42" Rear PTO Tiller Attachment for MF Series Enclosed Chain Drive Parts Diagram

42" Rear PTO Tiller Attachment for MF Series

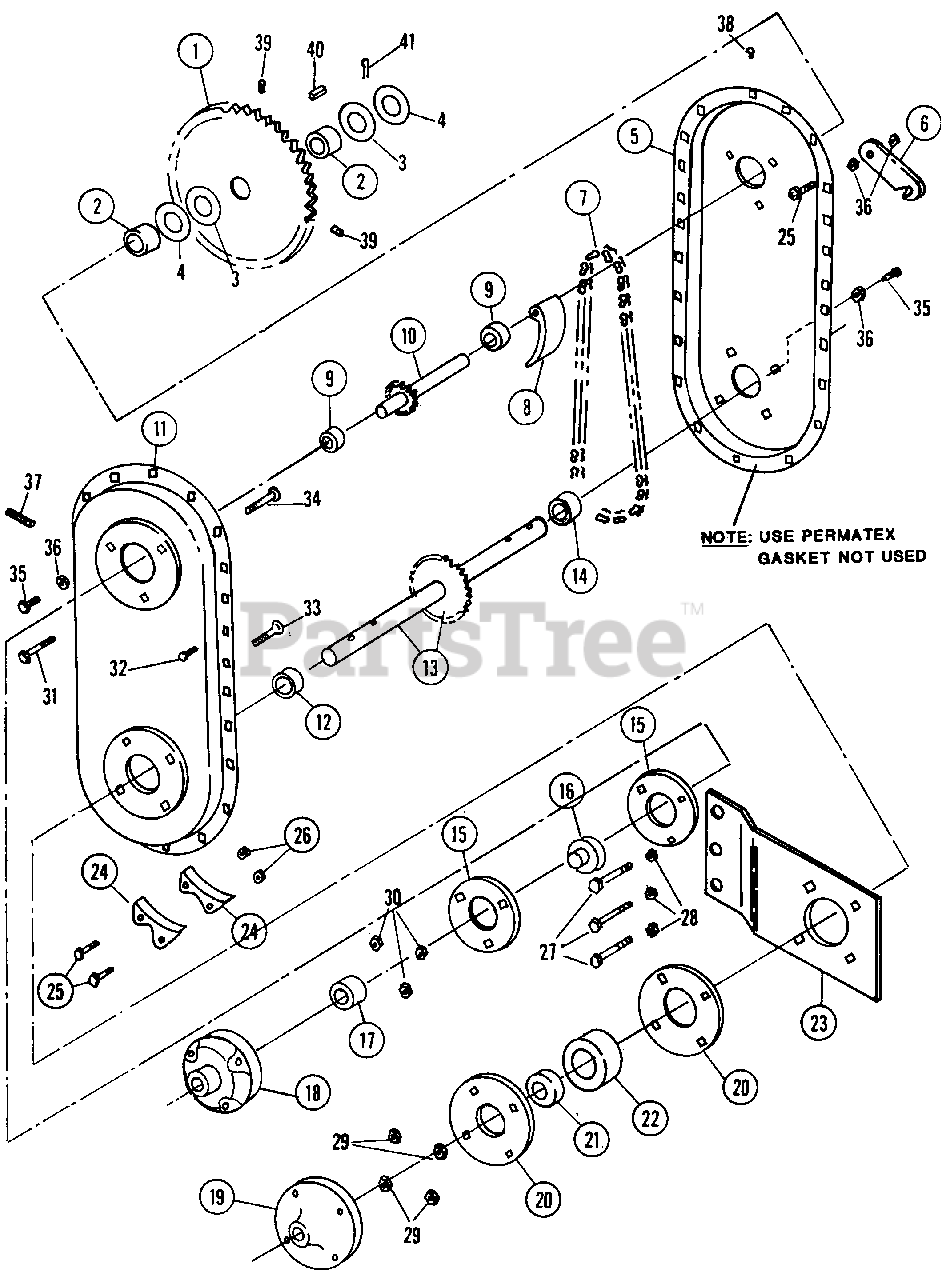

Enclosed Chain Drive Parts Diagram

  • Title

1

Snapper 7013141

SPROCKET, 40 TOOTH

$

$

Currently unavailable

2

Snapper 7013185

SPACER, 40T SPROCKET

$

$

Currently unavailable

3

Snapper 7013099

WASHER, SPECIAL (INNER)

$

$

Currently unavailable

4

Snapper 7013370

WASHER, SPECIAL OUTER
(Superseded to 7013370YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7013082

HOUSING, RIGHT SIDE CHAIN

$

$

Currently unavailable

6

Snapper 7013356

STRAP, HINGE LOCK

$

$

Currently unavailable

7

Snapper 7013260

CHAIN, ROLLER DRIVE ASA 60, 50 Pitches

$

$

Currently unavailable

8

Snapper 7013088

PADDLE, CHAIN TIGHTENER

$

$

Currently unavailable

9

Snapper 7013086

SPACER, UPPER SHAFT 1.05" DI x 1.312" OD x .41"

$

$

Currently unavailable

10

Snapper 7013085

SPROCKET SHAFT

$

$

Currently unavailable

11

Snapper 7013083

HOUSING, LEFT SIDE CHAIN

$

$

Currently unavailable

12

Snapper 7013090

SPACER, TINE SHAFT SHORT

$

$

Currently unavailable

13

Snapper 7013367

TINE SHAFT & SPROCKET

$

$

Currently unavailable

14

Snapper 7013089

SPACER, TINE SHAFT LONG

$

$

Currently unavailable

15

Snapper 7013265

FLANGETTE, 3-HOLE

$

$

Currently unavailable

16

Snapper 7013032

BEARING, SPROCKET SHAFT

$

$

Currently unavailable

17

Snapper 7013064

LOCK-COLLAR, BEARING

$

$

Currently unavailable

18

Snapper 7013087

HUB, PIVOT

$

$

Currently unavailable

19

Snapper 7013091

CAP, BEARING GUARD (DUST)

$

$

Currently unavailable

20

Snapper 7013252

FLANGETTE, 4-HOLE

$

$

Currently unavailable

21

Snapper 7013259

LOCK-COLLAR, TINE SHAFT BEARING

$

$

Currently unavailable

22

Snapper 7013002

BEARING, TINE SHAFT

$

$

Currently unavailable

23

Snapper 7013145

PLATE, LOWER ATTACHING

$

$

Currently unavailable

24

Snapper 7013084

WEAR-BAR

$

$

Currently unavailable

25

Snapper 7090505

BOLT, 1/4-20 x 2"
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7091046

BOLT, 1/2-13 x 2 HEX HEAD
(Superseded to 703868)

Note: Was 90766

$4.99

$

In Stock, only 4 left!

0

28

Snapper 7090706

LOCKNUT, 1/2-13 HEX

$

$

Currently unavailable

29

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

30

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

31

Snapper 7027174

BOLT, 5/16-18 x 2 HEX HEAD
(Superseded to 703867)

Note: Was 90689

$4.99

$

In Stock, Qty 6

0

32

Snapper 7091530

BOLT, Carriage 1/4C X3/4 GR5 YZ
(Superseded to 7091530SM)

Note: Was 90064

$3.99

$

In Stock, Qty 5

0

33

Snapper 7090497

BOLT, 3/8-16 x 1-3/4 CARRIAGE

$

$

Not available

34

Snapper 7090192

BOLT, 5/16-18 x 1-1/2 CARRIAGE
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 7091604

BOLT, 1/4-20 x 1/2 SN CARRIAGE
(Superseded to 703978)

Note: Was 90675

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7090787

SETSCREW, HEX SOCKET HEAD 5/16-18x1.5 (Use 7091590)

$

$

Currently unavailable

38

Snapper 7013093

COVER, OIL HOLE

$

$

Currently unavailable

39

Snapper 7090954

SETSCREW, 5/16 x 1/4
(Superseded to 7090954YP)

Note: Was 13369

$3.49

$

Usually ships in 2-12 days

0

40

Snapper 7013250

KEY, 1/4 SQUARE x 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 7091809

COTTER-PIN, 1/8D x 1-1/4
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

In Stock, only 2 left!

0
