7060374 - Snapper 42" Rear PTO Tiller Attachment for MF Series Outer Chain Drive Parts Diagram

42" Rear PTO Tiller Attachment for MF Series

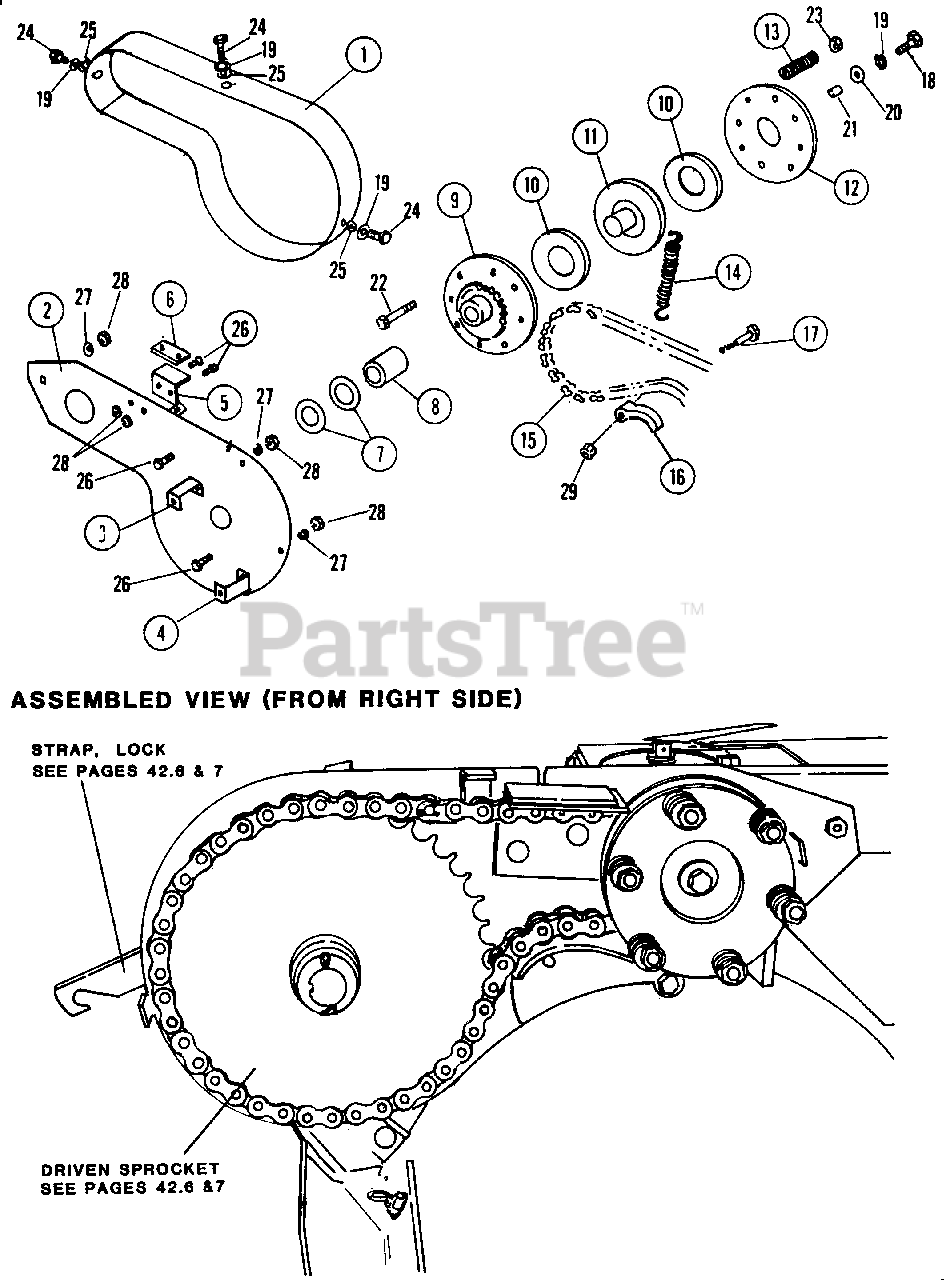

Outer Chain Drive Parts Diagram

  • Title

1

Snapper 7013128

GUARD, OUTER CHAIN

$

$

Currently unavailable

2

Snapper 7013129

GUARD, INNER CHAIN

$

$

Currently unavailable

3

Snapper 7013130

BRACE, UPPER REAR

$

$

Currently unavailable

4

Snapper 7013368

BRACE, LOWER REAR

$

$

Currently unavailable

5

Snapper 7013371

BRACKET, CHAIN DAMPENER

$

$

Currently unavailable

6

Snapper 7013372

PAD, CHAIN DAMPENER

$

$

Currently unavailable

7

Snapper 7013071

WASHER, SPECIAL .765" ID, 1.25" OD, 14 GA.

$

$

Currently unavailable

8

Snapper 7013133

SPACER, SPROCKET - HUB ASSEMBLY 1.503" ID 1.753" OD x 1.0" Bronze

$

$

Currently unavailable

9

Snapper 7013132

SPROCKET & HUB ASSEMBLY

$

$

Currently unavailable

10

Snapper 7013135

DISC, CLUTCH

$

$

Currently unavailable

11

Snapper 7013136

HUB, DISC MOUNTING

$

$

Currently unavailable

12

Snapper 7013134

PLATE, PRESSURE

$

$

Currently unavailable

13

Snapper 7013137

SPRING, TORQUE LIMITER

$

$

Currently unavailable

14

Snapper 7013143

SPRING, EXTERNAL

$

$

Currently unavailable

15

Snapper 7013140

CHAIN, ROLLER #50 / 59 Pitches

$

$

Currently unavailable

16

Snapper 7013142

PADDLE, CHAIN ADJUSTING

$

$

Currently unavailable

17

Snapper 7090702

BOLT, 5/16-18 x 2 HEX HEAD
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091541

BOLT, 5/16-18 x 3/4 HEX HEAD
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090187

LOCKWASHER, 5/16 MEDIUM
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7013139

WASHER, SPECIAL .375" ID, 1.0" OD, .104" Thick

$

$

Currently unavailable

21

Snapper 7013138

SPACER, TORQUE LIMITER

$

$

Currently unavailable

22

Snapper 7091046

BOLT, 5/16-18 x 2-1/2 HEX HEAD
(Superseded to 703868)

Note: Was 90219

$4.99

$

In Stock, only 4 left!

0

23

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

24

Snapper 7090534

BOLT, 5/16-18 x 1/2 HEX HEAD
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090692

WASHER, 5/16 SAE PLAIN
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7091604

BOLT, 1/4-20 x 1/2 SHORT NECK CARRIAGE
(Superseded to 703978)

Note: Was 90675

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7091098

WASHER, 1/4 SAE PLAIN
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7091511

NUT, HEX 5/16-18
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0
