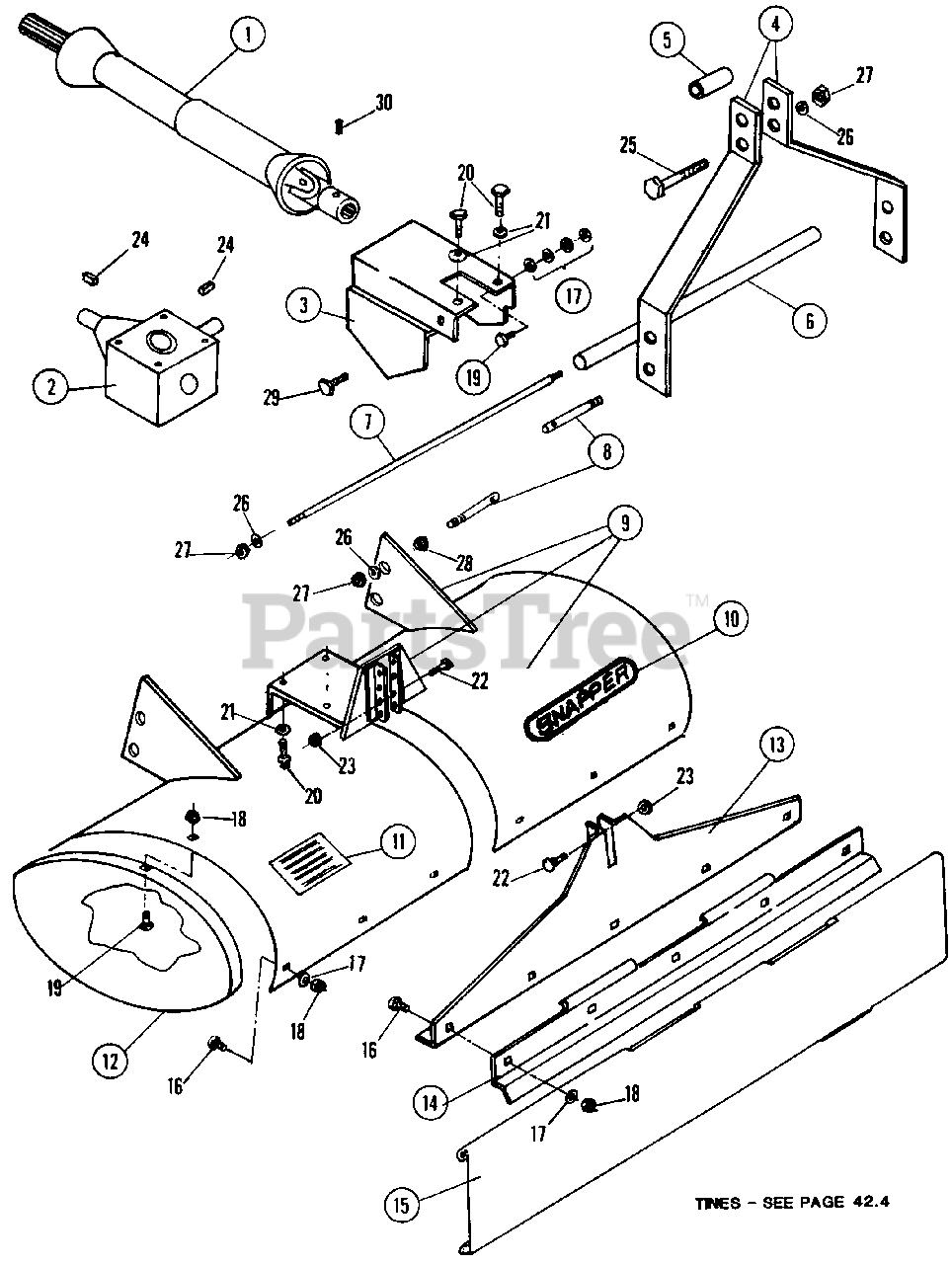

7060374 - Snapper 42" Rear PTO Tiller Attachment for MF Series Shroud, Level Blade, Drive Parts Diagram

42" Rear PTO Tiller Attachment for MF Series

Shroud, Level Blade, Drive Parts Diagram

  • Title

1

Snapper 7013149

SHAFT, P.T.O.

Note: (COMPLETE ASSEMBLY)

$

$

Currently unavailable

2

Snapper 7013152

GEAR BOX - COMPLETE

Note: (SEE "42" TILLER GEAR BOX" ILLUSTRATION & PARTS LIST)

$

$

Currently unavailable

3

Snapper 7013184

SHIELD, P.T.O. EXTENSION

$

$

Currently unavailable

4

Snapper 7013147

BAR-MAST

Note: (SAME BOTH SIDES)

$

$

Currently unavailable

5

Snapper 7013182

SPACER, MAST

$

$

Currently unavailable

6

Snapper 7013958

TUBE, LOWER TIE

$

$

Currently unavailable

7

Snapper 7013959

ROD, LOWER TIE

$

$

Currently unavailable

8

Snapper 7013148

PIN, LOWER LINK

$

$

Currently unavailable

9

Snapper 7013127

SHROUD ASSEMBLY

$

$

Currently unavailable

10

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 7018443

DECAL, CAUTION

$

$

Currently unavailable

12

Snapper 7013095

COVER, SHROUD END

Note: (SAME BOTH SIDES)

$

$

Currently unavailable

13

Snapper 7013354

BRACE, SHROUD

$

$

Currently unavailable

14

Snapper 7013355

HINGE, LEVEL BLADE

$

$

Currently unavailable

15

Snapper 7013146

LEVEL BLADE

$

$

Currently unavailable

16

Snapper 7091508

BOLT, 5/16-18 x 3/4 CARRIAGE
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090692

WASHER, 5/16 SAE
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

19

Snapper 7090731

BOLT, 5/16-18 x 1/2 CARRIAGE
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091541

BOLT, 5/16-18 x 3/4 HEX HEAD
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7090187

LOCKWASHER, 5/16 MEDIUM
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7090078

BOLT, 1/4-20 x 1-1/4 CARRIAGE
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

23

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

Note: Was 13249

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090778

BOLT, 5/8-11 x 2-3/4 HEX HEAD

$

$

Currently unavailable

26

Snapper 7090333

LOCKWASHER 5/8 MEDIUM
(Superseded to 7090333YP)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7090537

NUT, 5/8-11 HEX
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

28

Snapper 7090516

JAM-NUT, 5/8-11 HEX

Note: Was 90686

$

$

Not available

29

Snapper 7090505

BOLT, 1/4-20 x 2 HEX HEAD
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7013261

SETSCREW, HEX SOCKET 5/16-18 x 1/2 Locking (Use 90848 or 91995)

$

$

Currently unavailable
