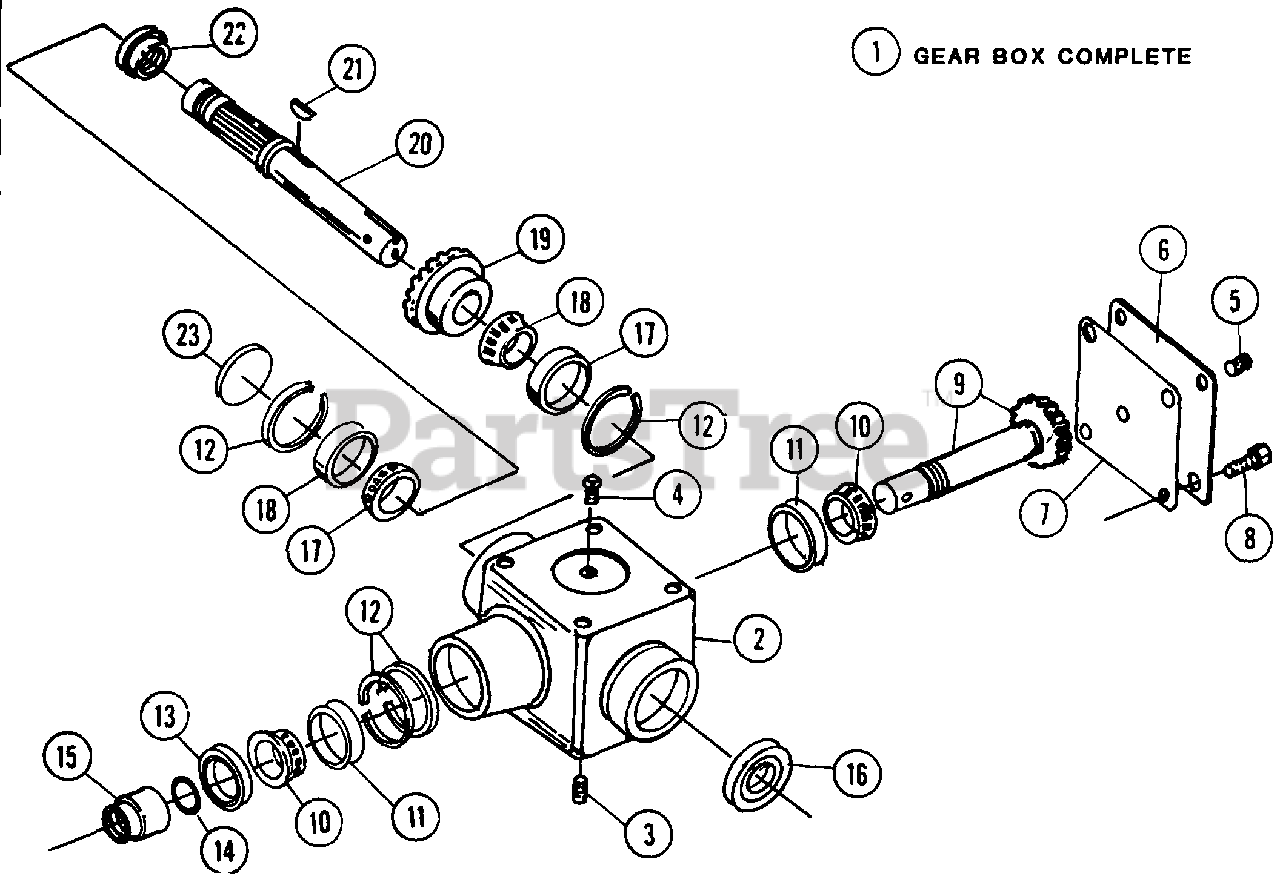

7060375 - Snapper 48" Rear PTO Tiller Attachment for MF Series Gear Box Parts Diagram

48" Rear PTO Tiller Attachment for MF Series

Gear Box Parts Diagram

  • Title

1

Snapper 7013961

GEAR BOX, 2:1 RATIO Durst #4465

Note: (INCLUDES FOLLOWING)

$

$

Currently unavailable

2

Snapper 7014020

HOUSING, GEAR BOX

$

$

Currently unavailable

3

Snapper 7013345

PLUG, DRAIN 3/8-18 NPT

$

$

Currently unavailable

4

Snapper 7014038

PLUG, VENT 3/8-18 NPT SQUARE HEAD

$

$

Currently unavailable

5

Snapper 7013344

PLUG, CHECK 1/8-27 NPT

$

$

Currently unavailable

6

Snapper 7014021

COVER

$

$

Currently unavailable

7

Snapper 7014035

GASKET, COVER

$

$

Currently unavailable

8

Snapper 7090204

HHCS, 5/16C X5/8 GR5 ZP
(Superseded to 703822)

Note: Was 14030, HHCS, 5/16-18 x 5/8

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7014023

SHAFT, BEVEL PINION

$

$

Currently unavailable

10

Snapper 7014027

BEARING CONE

$

$

Currently unavailable

11

Snapper 7014026

BEARING CUP

$

$

Currently unavailable

12

Snapper 7014029

RING, RETAINING

$

$

Currently unavailable

13

Snapper 7014039

SEAL, OIL VICTOR #64494

$

$

Currently unavailable

14

Snapper 7014037

O-RING, NS 122

$

$

Currently unavailable

15

Snapper 7014031

STAKE-NUT

$

$

Currently unavailable

16

Snapper 7014036

SEAL, OIL

$

$

Currently unavailable

17

Snapper 7014025

BEARING CUP

$

$

Currently unavailable

18

Snapper 7014024

BEARING CONE

$

$

Currently unavailable

19

Snapper 7014022

GEAR, BEVEL 32T - 10P

$

$

Currently unavailable

20

Snapper 7014032

SHAFT, OUTPUT

$

$

Currently unavailable

21

Snapper 7014033

KEY, WOODRUFF (A 807 HARD)

$

$

Currently unavailable

22

Snapper 7014028

STAKE-NUT

$

$

Currently unavailable

23

Snapper 7014034

CAP, END

$

$

Currently unavailable
