7060411 - Snapper Right Hand Fender Differential Kit Differential Kit Parts Diagram

Right Hand Fender Differential Kit

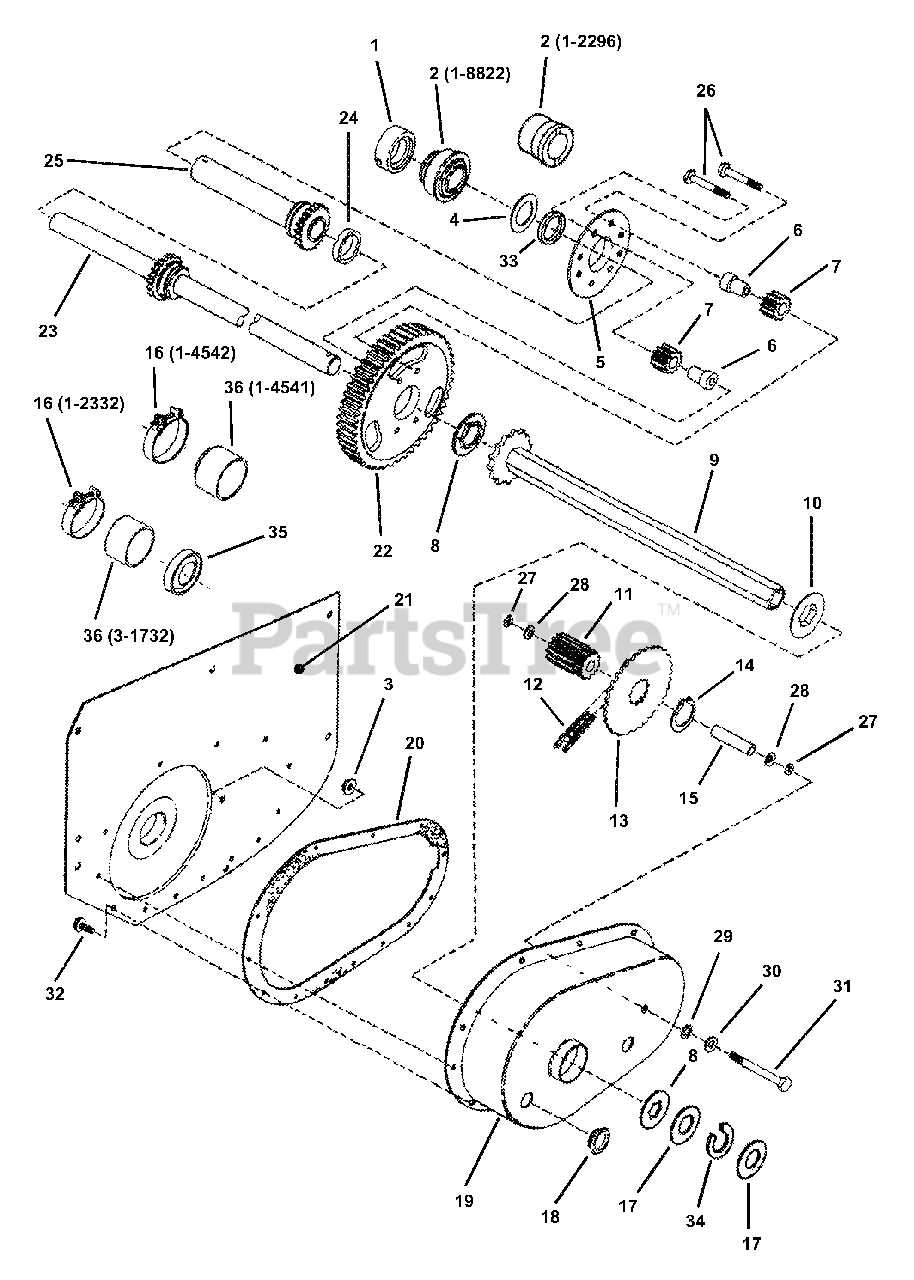

Differential Kit Parts Diagram

  • Title

--

Snapper 7060411

KIT, Differential Assembly
(Superseded to 7600229YP)

Note: (Includes Items 1 Thru 37)

$1049.99

$

Usually ships in 2-12 days

0

--

Snapper 7060662

KIT, 8 Pin Differential Assembly
(Superseded to 7600229YP)

Note: (Includes Items 1 Thru 37)

$1049.99

$

Usually ships in 2-12 days

0

1

Snapper 7014401

COLLAR, Lock
(Superseded to 7014401YP)

Note: (Includes 9-0201, 5/16-18 x 5/16" Setscrew)

$26.99

$

In Stock, only 1 left!

0

2

Snapper 7018822

BALL BEARING, Axle (in 60662)
(Superseded to 7018822YP)

$74.99

$

In Stock, only 1 left!

0

--

Snapper 7012296

POWDERED METAL BEARING, Axle (in 60411)
(Superseded to 7012296YP)

$14.99

$

In Stock, Qty 20+

0

3

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, only 4 left!

0

4

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

$4.49

$

In Stock, Qty 6

0

7

Snapper 7021127

GEAR, Differential Pinion
(Superseded to 7021127YP)

$23.99

$

In Stock, Qty 16

0

8

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

Note: Components of 60277 Hardware Bag

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, only 1 left!

0

10

Snapper 7010988

WASHER, Hex Nylon Splash
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7010964

GEAR, 11 Teeth- 10 Pitch
(Superseded to 7200128YP)

$14.99

$

In Stock, Qty 6

0

12

Snapper 7010941

CHAIN, 46 Pitch (No. 35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 14

0

13

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$20.99

$

In Stock, only 3 left!

0

14

Snapper 7010965

RING, External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 10

0

15

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 3 left!

0

16

Snapper 7012332

CLAMP, Boot 2"
(Superseded to 7012332YP)

Note: (Found in 60411)

$6.99

$

In Stock, Qty 7

0

--

Snapper 7014542

CLAMP, Boot 3"

Note: (Found in 60662)

$

$

Not available

17

Snapper 7011071

THRUST WASHER
(Superseded to 7011071YP)

Note: Components of 60277 Hardware Bag

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

Note: Components of 60277 Hardware Bag

$2.99

$

In Stock, Qty 20+

0

19

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

20

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

$24.99

$

In Stock, Qty 20+

0

21

Snapper 7037957

FENDER, Right Hand

Note: (33" Deck Differential Models) (2.498" Hole for Ball Bearing) (Found in 60662)

$

$

Not available

--

Snapper 7037280

FENDER, Right Hand
(Superseded to 7301301YP)

Note: (28", 30" Deck Differential Models) (1.62" Hole for Bushing) (Found in 60411)

$149.99

$

Usually ships in 2-12 days

0

22

Snapper 7021158

GEAR, 63 Teeth- 10 Pitch
(Superseded to 7021158YP)

$109.99

$

In Stock, only 3 left!

0

23

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

Note: Was 47763

$136.99

$

In Stock, only 1 left!

0

24

Snapper 7074431

SPACER
(Superseded to 7074431YP)

$4.49

$

In Stock, Qty 11

0

25

Snapper 7057398

AXLE, Short
(Superseded to 7600137YP)

Note: (Includes Gear) (Use Only With Long Axle P/N 47763)

$95.99

$

In Stock, Qty 13

0

26

Snapper 7012333

SCREW, 5/16-24 x 1-5/8" Hex Cap Special Lock
(Superseded to 7012333YP)

$4.99

$

In Stock, only 4 left!

0

27

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7011782

WASHER, 5/16" Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 19

0

29

Snapper 7090395

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 10

0

30

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7011042

BOLT, 5/16-24 x 2-5/8" Idler
(Superseded to 7011042YP)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

33

Snapper 7032107

SPACER, Short Axle

$10.99

$

In Stock, only 1 left!

0

34

Snapper 7012271

SHIM WASHER (Split)
(Superseded to 7011071YP)

Note: Components of 60277 Hardware Bag

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7011817

SEAL
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7014541

BOOT, Large
(Superseded to 7014541YP)

Note: (Found in 60662)

$

$

Not available

--

Snapper 7031732

CAP
(Superseded to 7031732YP)

Note: (Found in 60411)

$6.49

$

In Stock, Qty 20+

0
