7060441 - Snapper Commercial Axle Kit Axle Kit Parts Diagram

Commercial Axle Kit

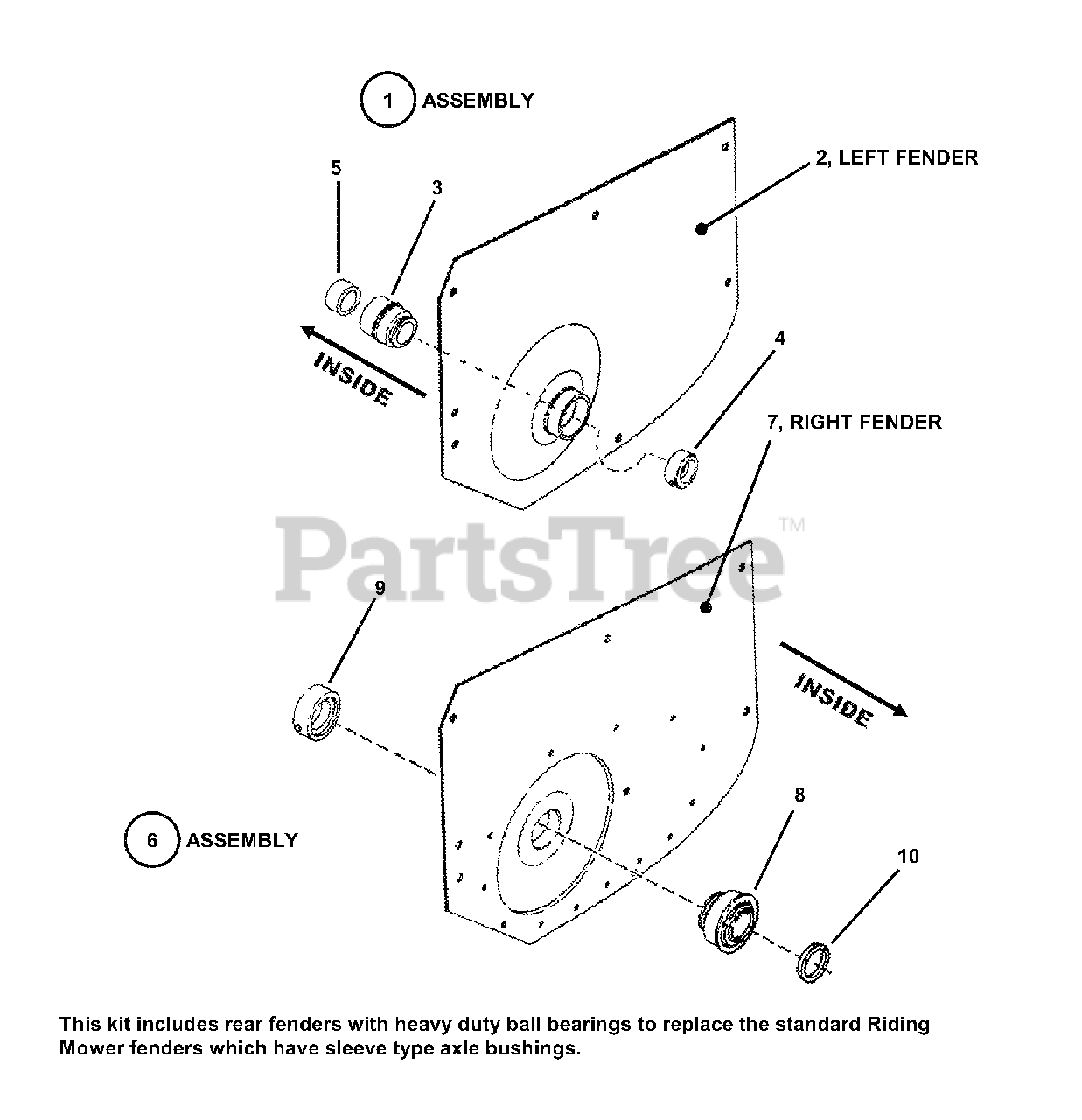

Axle Kit Parts Diagram

  • Title

--

Snapper 7060441

KIT, Extra Tough Axle - Bearing Fender Kit

Note: (Includes Items 1 Thru 10)

$

$

Not available

1

Snapper 7051451

ASSEMBLY, Left Fender and Bearing

Note: (Includes items 2 and 3)

$

$

Not available

2

Snapper 7037958

FENDER, Left Side (Extra Tough)

$

$

Not available

3

Snapper 7014624

BALL BEARING, Left Side
(Superseded to 7014624YP)

$55.99

$

In Stock, Qty 8

0

4

Snapper 7014625

LOCK COLLAR
(Superseded to 7014625YP)

Note: (Includes 90776 Set Screw)

$11.99

$

In Stock, Qty 5

0

5

Snapper 7023447

SPACER, Left Hand
(Superseded to 7023447YP)

Note: Was 32114

$4.49

$

In Stock, Qty 10

0

6

Snapper 7051452

ASSEMBLY, Right Hand Fender and Bearing

Note: (Includes items 7 and 8)

$

$

Currently unavailable

7

Snapper 7037957

FENDER, Right Side (Extra Tough)

$

$

Not available

8

Snapper 7018822

BALL BEARING, Rear Axle
(Superseded to 7018822YP)

$74.99

$

In Stock, only 1 left!

0

9

Snapper 7014401

LOCK COLLAR
(Superseded to 7014401YP)

Note: (Includes 90201 Set Screw)

$26.99

$

In Stock, only 1 left!

0

10

Snapper 7032107

SPACER, Short Axle

$10.99

$

In Stock, only 1 left!

0
