7060571 - Snapper Automatic Blade Stop Kit Automatic Blade Stop Parts Diagram

Automatic Blade Stop Kit

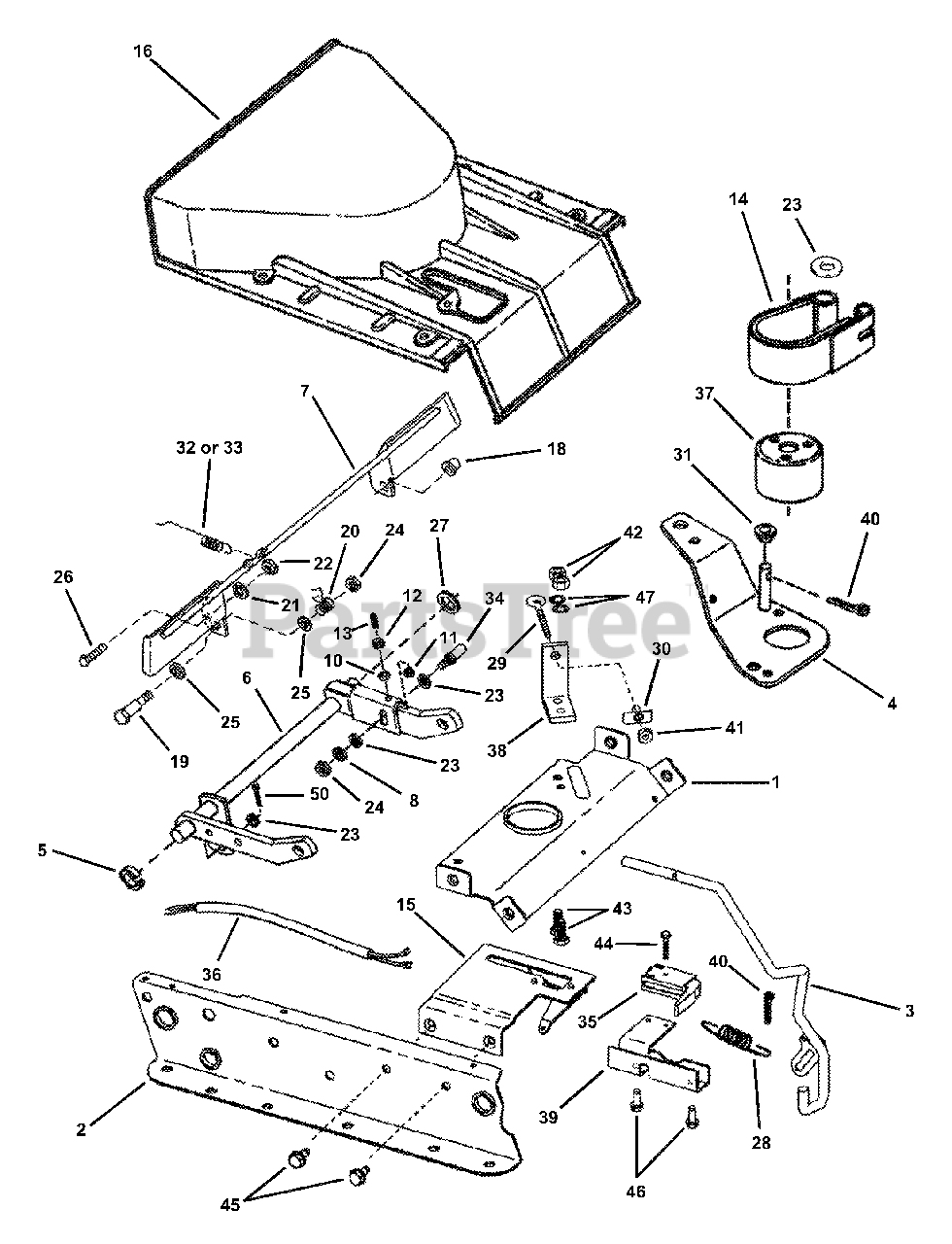

Automatic Blade Stop Parts Diagram

  • Title

--

Snapper 7060571

KIT, Automatic Blade Stop

Note: (Incl. items 1 thru 17)

$

$

Currently unavailable

1

Snapper 7031838

TOP BRACE
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

2

Snapper 7033037

SIDE RAIL, Right Hand
(Superseded to 7033037YP)

$47.99

$

Usually ships in 2-12 days

0

3

Snapper 7041324

WELDMENT, Blade Engagement Handle
(Superseded to 7041324YP)

$74.99

$

In Stock, only 1 left!

0

4

Snapper 7047787

WELDMENT, Idler Arm
(Superseded to 706001)

$27.99

$

In Stock, only 1 left!

0

5

Snapper 7012067

RING, Front Lift Arm- Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7047786

WELDMENT, Front Lift Arm

$

$

Not available

7

Snapper 7047788

WELDMENT, Foot Pedal

$

$

Not available

8

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

9

Snapper 7090164

SCREW, 3/8-24 x 1-1/2" Hex Head Cap

$

$

Not available

10

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090197

NUT, 5/16- Hex Jam
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7090809

SET SCREW, 5/16-18 x 1-1/4" Hex Socket

$

$

Currently unavailable

14

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$35.99

$

In Stock, Qty 8

0

15

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

Note: Was 53923

$41.99

$

In Stock, only 3 left!

0

16

Snapper 7057458

COVER, Spindle
(Superseded to 7057458YP)

Note: Was 57294 (Includes Decal 14205)

$143.99

$

Usually ships in 2-12 days

0

--

Snapper 7060590

HARDWARE BAG (Not Shown)

Note: (Includes items 18 thru 49)

$

$

Currently unavailable

18

Snapper 7014101

PUSH NUT, 1/2"
(Superseded to 7014101YP)

$4.49

$

In Stock, only 2 left!

0

19

Snapper 7014158

SHOULDER BOLT, 3/8-24 Hex Head

$

$

Currently unavailable

20

Snapper 7014166

SPRING, Pedal
(Superseded to 7014166YP)

$10.99

$

Usually ships in 2-12 days

0

21

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

22

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, Qty 10

0

25

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

26

Snapper 7090535

SCREW, 1/4-28 x 1" Hex Head Cap, Grade 5
(Superseded to 7090535YP)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7010935

WASHER, .77 I.D. x 1.13 O.D. x .06 Thick
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7014168

SPRING, Blade Handle
(Superseded to 7014168YP)

$6.49

$

In Stock, only 2 left!

0

29

Snapper 7014302

EYE BOLT, 1/4-20 Thread
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

30

Snapper 7014303

T-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

31

Snapper 7014314

SPACER, Nylon
(Superseded to 7014314YP)

$4.99

$

In Stock, only 2 left!

0

32

Snapper 7014320

LATCH SPRING
(Superseded to 7014320YP)

Note: (For 28" & 30")

$16.99

$

In Stock, only 2 left!

0

33

Snapper 7014389

LATCH SPRING
(Superseded to 7014389YP)

Note: (For 33" & 41")

$11.99

$

Usually ships in 2-12 days

0

34

Snapper 7014399

BOLT, 3/8-24 Hex Head Shoulder

$

$

Not available

35

Snapper 7018524

SWITCH
(Superseded to 7018524YP)

$19.99

$

Usually ships in 2-12 days

0

36

Snapper 7018525

DECK WIRE
(Superseded to 7018525YP)

$

$

Not available

37

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 1 left!

0

38

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

$8.99

$

Usually ships in 2-12 days

0

39

Snapper 7038021

MOUNT, Switch
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

41

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 4 left!

0

42

Snapper 7091297

NUT, 5/16-24 Hex, Gr. 5 or B
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

43

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, only 3 left!

0

44

Snapper 7090299

SCREW, #10-32 x 1" Hex Washer Self-Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

46

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

47

Snapper 7090391

WASHER, 5/1g" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

48

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

49

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

50

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, Qty 7

0
