7060772 - Snapper 41" Twin Bag Grass Catcher Twin Bag Catcher Parts Diagram

41" Twin Bag Grass Catcher

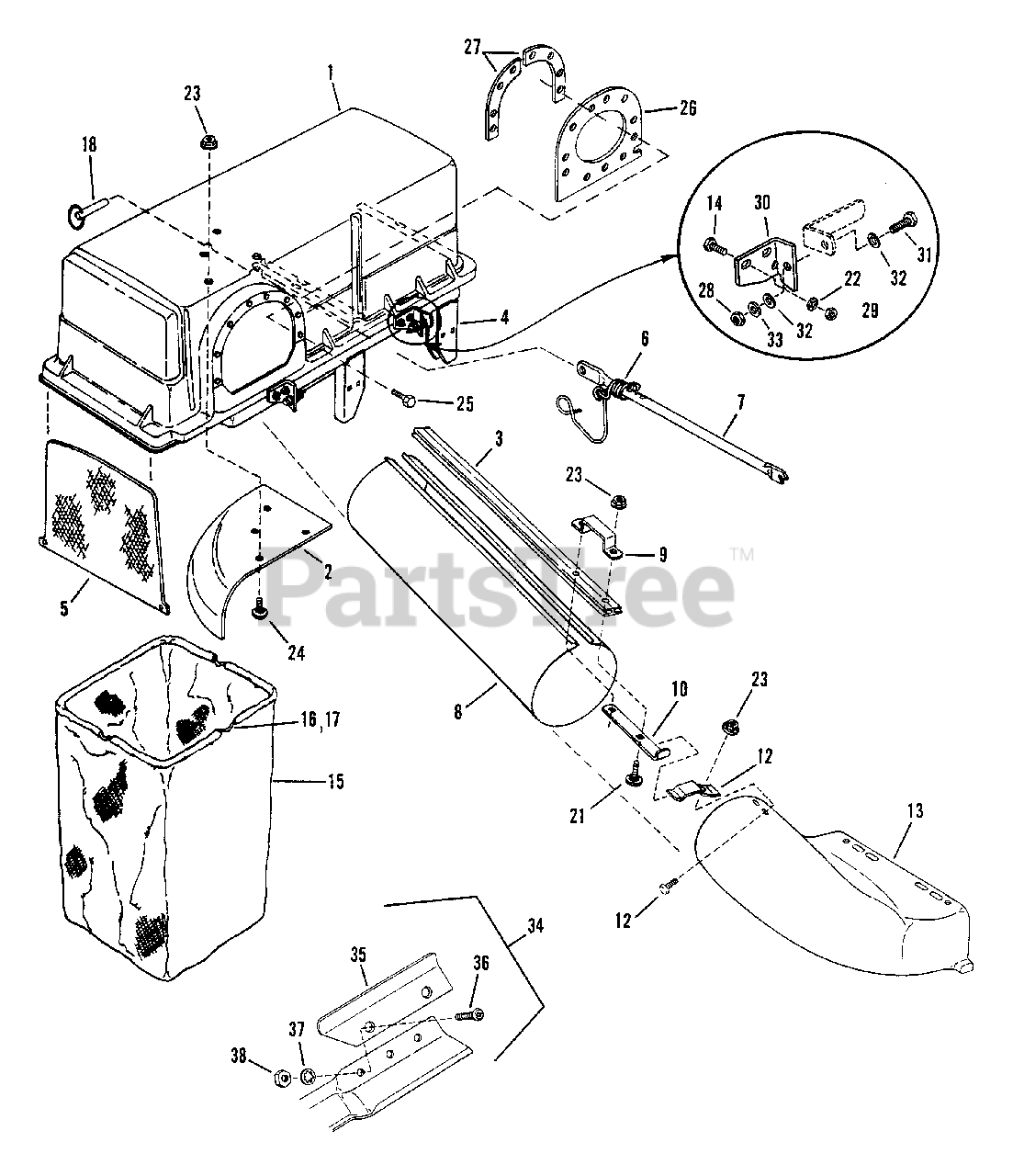

Twin Bag Catcher Parts Diagram

  • Title

--

Snapper 7060772

KIT, Twin Bag Catcher

Note: (Includes items 1 thru 42)

$

$

Currently unavailable

1

Snapper 7059710

ASSEMBLY, Cover
(Superseded to 7059710YP)

Note: (Includes 36075 bar & 25 thru 27)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7019725

SECTOR, (Inside Top Baffle)
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

--

Snapper 7051721

ASSEMBLY, Grass Tube

Note: (Includes items 3 & 8)

$

$

Currently unavailable

3

Snapper 7015607

RIB, Grass Tube
(Superseded to 7015607YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 52238

ASSEMBLY, Mounting

Note: (Including following idented items)

$

$

Currently unavailable

--

Snapper 7059937

STRUCTURE, Frame
(Superseded to 7059937YP)

$205.99

$

Usually ships in 2-12 days

0

--

Snapper 7091084

SCREW, 1/4-20x3/8" Self-Tapping
(Superseded to 703583)

Note: Was 90302

$4.99

$

Usually ships in 2-12 days

0

--

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

--

Snapper 7090192

BOLT, 5/16-18x1-1/2" Carriage
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

--

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

5

Snapper 7057341

ASSEMBLY, Screen
(Superseded to 7057341YP)

Note: (Includes 19731 Screen & 19732 Frame)

$

$

Not available

6

Snapper 7051407

ASSEMBLY, Spring & Hook
(Superseded to 7051407YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7036073

BRACE
(Superseded to 7036073YP)

$48.99

$

Usually ships in 2-12 days

0

8

Snapper 7017318

TUBE, Grass 46"

$

$

Currently unavailable

9

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

$7.49

$

In Stock, only 2 left!

0

11

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: (NOT SHOWN)

$13.99

$

In Stock, only 4 left!

0

12

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

$5.99

$

In Stock, Qty 5

0

13

Snapper 7051663

ADAPTER, Deck
(Superseded to 7051663YP)

$198.99

$

Usually ships in 2-12 days

0

14

Snapper 7090541

SCREW, 1/4-28x3/4" Hex Head Cap 4)
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$81.99

$

In Stock, Qty 10

0

16

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$87.99

$

Usually ships in 2-12 days

0

17

Snapper 7014456

ROD, Connector
(Superseded to 7014456YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper 7015610

PIN, Quick Release
(Superseded to 7015610YP)

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 7071677

SHIELD, Muffler Heat
(Superseded to 7071677YP)

Note: Was 36076 (NOT SHOWN); USED ON REAR ENGINE RIDER ONLY.

$79.99

$

In Stock, only 1 left!

0

20

Snapper 7090824

SCREW, 3/8-24x1-1/4 Hex Head Cap
(Superseded to 7090824YP)

Note: Used on new blade.

$4.99

$

In Stock, Qty 14

0

21

Snapper 7090803

BOLT, 1/4-20x5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

23

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7091604

BOLT, 1/4-20x 1/2" Short Neck Carriage
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, only 2 left!

0

25

Snapper 7090896

SCREW, #10-24x1/2" Self-Tapping
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

26

Snapper 7019794

SEAL, Cover
(Superseded to 7019794YP)

$35.99

$

Usually ships in 2-12 days

0

27

Snapper 7038276

CLAMP, Seal

$

$

Not available

28

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 8

0

29

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.49

$

Usually ships in 2-12 days

0

31

Snapper 7090238

SCREW, 5/16-24x1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

32

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7060735

KIT, Air Lift
(Superseded to 7060735YP)

Note: (Includes items 35 thru 38)

$62.99

$

Usually ships in 2-12 days

0

35

Snapper 7031724

LIFT, Air
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

36

Snapper 7090228

SCREW, 5/16-24x21/32" Cross Recess
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

37

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

38

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7019795

BLADE
(Superseded to 7019795BZYP)

Note: (Not Shown)

$28.99

$

In Stock, only 4 left!

0

--

Snapper 7038277

BAFFLE

Note: (Not Shown)

$

$

Not available

--

Snapper 7090599

SCREW, 5/16-18x3/4" Round Head Machine
(Superseded to 7091613YP)

Note: Used on baffle mounting. (Not Shown )

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 Used on baffle mounting. (Not Shown)

$5.49

$

In Stock, Qty 20+

0
