7060779 - Snapper Muffler Kit Muffler Kit Parts Diagram

Muffler Kit

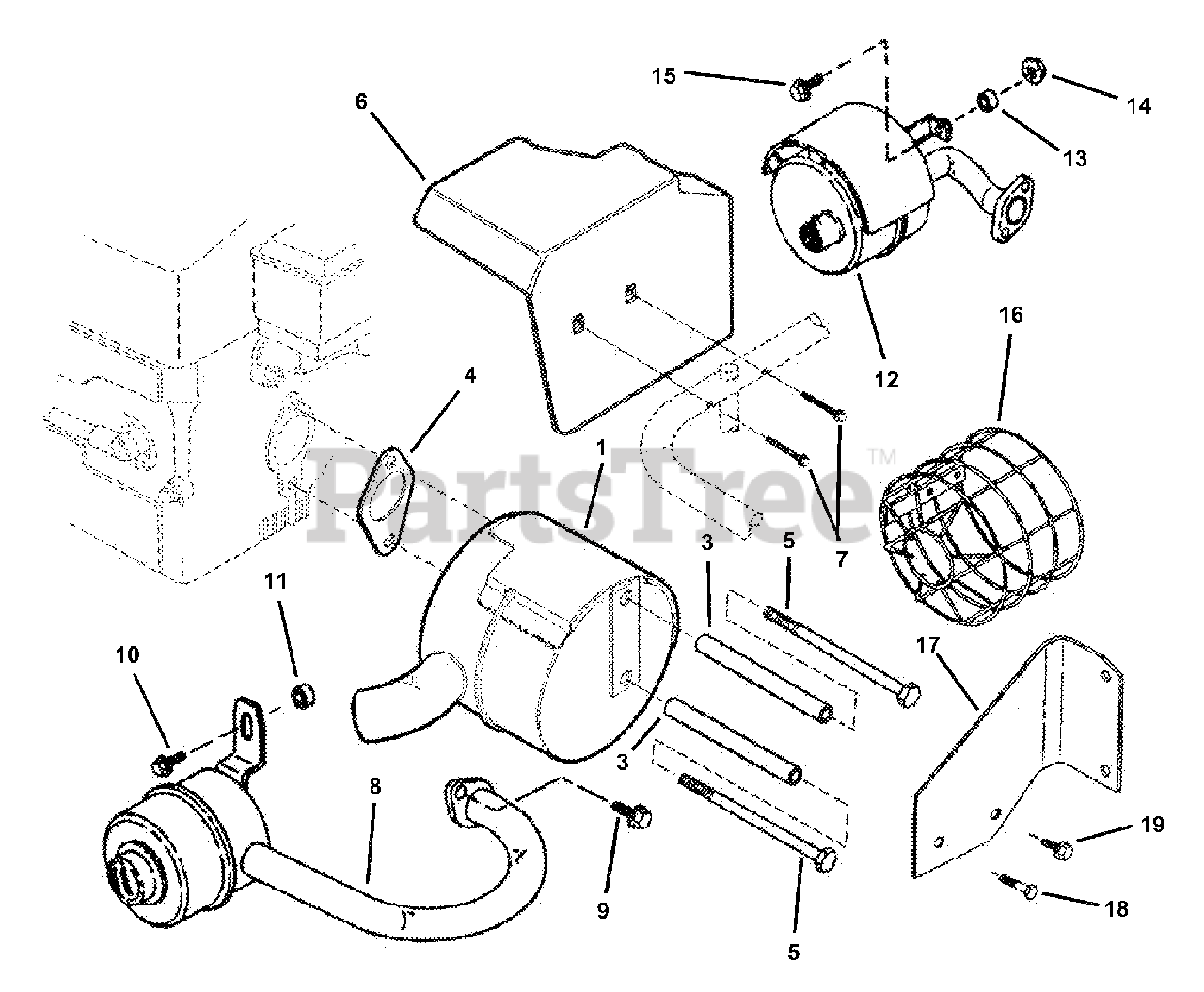

Muffler Kit Parts Diagram

  • Title

--

Snapper 7060779

KIT, Muffler

Note: (Includes items 1 and 2)

$

$

Currently unavailable

1

Snapper 7019791

MUFFLER, 12HP Wisconcin Robin

$

$

Currently unavailable

2

Snapper 7060780

HARDWARE BAG
(Superseded to 7060780YP)

Note: (Includes items 3 Thru 5)

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 7015353

SPACER, .312 I.D. x 3-1/2"
(Superseded to 7015353YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7015556

GASKET, Exhaust (Robin 12HP)

$

$

Currently unavailable

5

Snapper 7090912

SCREW, 5/16-18 x 4-1/4" Hex Head Cap

$

$

Currently unavailable

6

Snapper 7057429

ASSEMBLY, Heat Shield
(Superseded to 7057429YP)

Note: Was 51647, Not included in this kit.

$51.99

$

Usually ships in 2-12 days

0

7

Snapper 7090922

SCREW, #10-32 x 1-1/2" Hex Washer Head
(Superseded to 7090922YP)

Note: Not included in this kit.

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7017331

MUFFLER, 12HP Wisconcin Robin

Note: Not included in this kit.

$

$

Currently unavailable

9

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206 (Not included in this kit.)

$3.99

$

In Stock, Qty 19

0

10

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073 (Not included in this kit.)

$4.49

$

In Stock, Qty 6

0

11

Snapper 7021866

SPACER
(Superseded to 7021866YP)

Note: Not included in this kit.

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7019358

MUFFLER, 14/15HP Kohler
(Superseded to 7019358YP)

Note: Not included in this kit.

$109.99

$

Usually ships in 2-12 days

0

13

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

Note: Not included in this kit.

$4.49

$

In Stock, Qty 7

0

14

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065 (Not included in this kit.)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

Note: Not included in this kit.

$4.49

$

In Stock, Qty 6

0

16

Snapper 7024356

GUARD, Muffler (Kohler)
(Superseded to 7024356YP)

Note: Not included in this kit.

$91.99

$

Usually ships in 2-12 days

0

17

Snapper 7033564

BRACKET, Muffler Guard (Kohler)

Note: Not included in this kit.

$

$

Not available

18

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 91059 (Not included in this kit.)

$3.99

$

In Stock, Qty 5

0

19

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Head Self-Tap
(Superseded to 703054)

Note: Was 91016 (Not included in this kit.)

$4.49

$

In Stock, only 1 left!

0
