7060793 - Snapper Pac-N-Sac Kit Kit, Pac - N - Sac (Part 1) Parts Diagram

Pac-N-Sac Kit

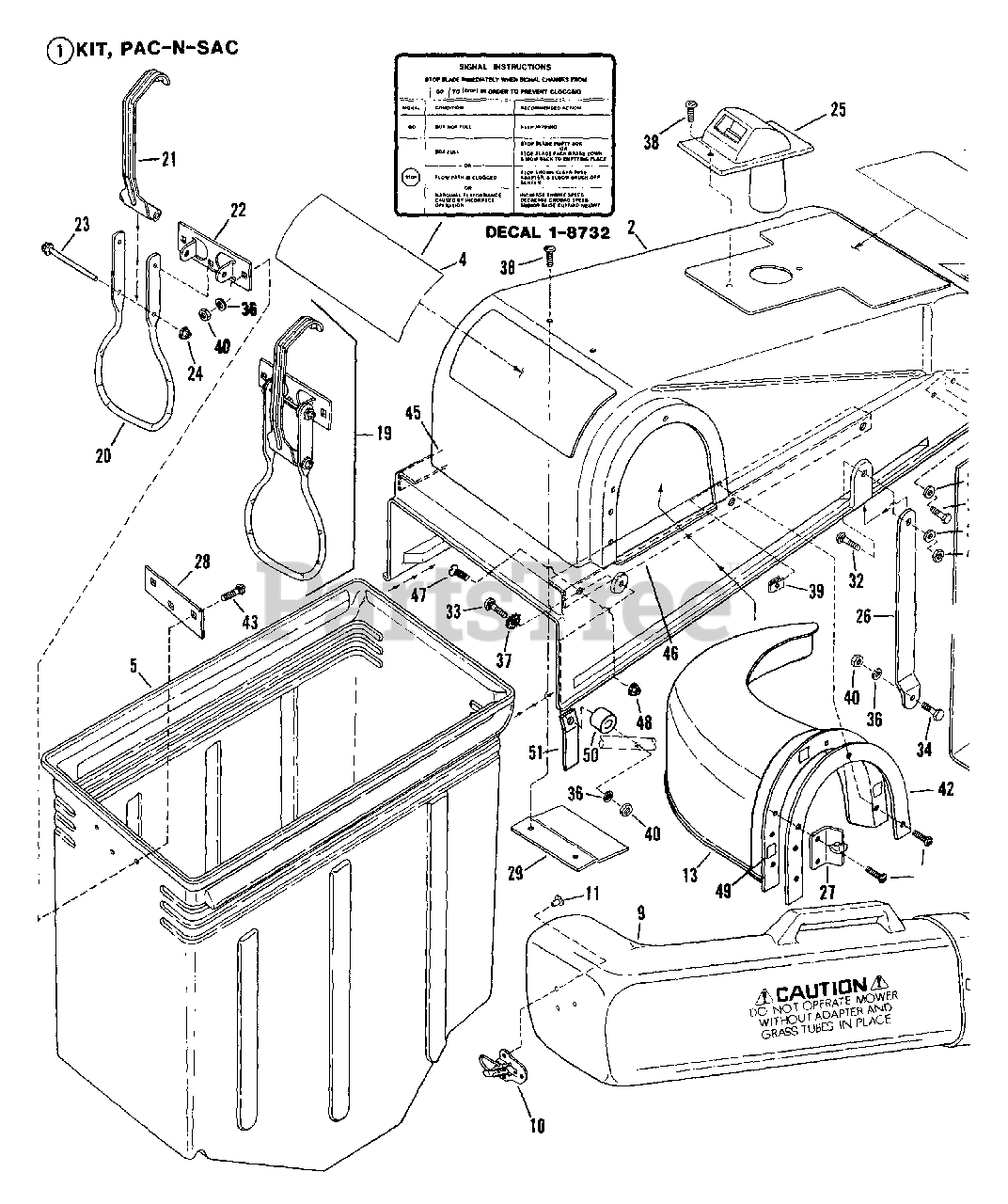

Kit, Pac - N - Sac (Part 1) Parts Diagram

  • Title

1

Snapper 60793

KIT, Pac-N-SAC

Note: (Includes items 2 thru 50)

$

$

Currently unavailable

2

Snapper 7051548

ASSEMBLY, Cover
(Superseded to 7051548YP)

Note: (Incl. items 3 & 4 & 45 thru 48)

$132.99

$

Usually ships in 2-12 days

0

?3

Snapper 7018731

DECAL, Pac-N-Sac
(Superseded to 7018731YP)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7018732

DECAL, Operation

$

$

Currently unavailable

5

Snapper 7019995

CONTAINER
(Superseded to 7019995YP)

$123.99

$

Usually ships in 2-12 days

0

9

Snapper 7051547

ASSMY, Grass Tube

Note: (Incl. items 10 & 11)

$

$

Currently unavailable

10

Snapper 7015106

DRAWBOLT, Bottom

$

$

Not available

11

Snapper 7015113

EYELET, Flat Flange

$

$

Not available

13

Snapper 7019998

DEFLECTOR

$

$

Currently unavailable

Snapper 7051551

ASSEMBLY, Screen

Note: (Incl. items 14 thru 18)

$

$

Currently unavailable

19

Snapper 7051559

ASSEMBLY, Handle
(Superseded to 7051559YP)

Note: (Incl. items 20 thru 24)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7018729

HANDLE, Latch

$

$

Currently unavailable

21

Snapper 7032450

LATCH, Container

$

$

Not available

22

Snapper 7032448

PIVOT, Latch

$

$

Not available

23

Snapper 7015359

PIN, Latch

$

$

Not available

24

Snapper 90921

NUT, 5/32" Self-Threading

$

$

Currently unavailable

25

Snapper 7051545

ASSEMBLY, Indicator
(Superseded to 7051545YP)

$29.99

$

Usually ships in 2-12 days

0

26

Snapper 7038198

BRACE (88' Models & Earlier)
(Superseded to 7038198YP)

$39.99

$

Usually ships in 2-12 days

0

Snapper 7038325

BRACE ('89 Models & Later)

Note: (Not Shown)

$

$

Currently unavailable

27

Snapper 15101

DRAWBOLT, Top

$

$

Currently unavailable

28

Snapper 7032449

PLATE, Pivot

$

$

Currently unavailable

29

Snapper 7032470

RETAINER, Screen

$

$

Currently unavailable

?30

Snapper 7091318

CAPSCREW, 5/16-18 x 3/4" Hex Head
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 19

0

?31

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7091573

CARRIAGE BOLT, 1/4-20 x 5/8" Short Neck
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

33

Snapper 7090015

CARRIAGE BOLT, 1/4-20 x 1-3/4" Short Neck
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

Snapper 90972

CARRIAGE BOLT, 1/4-20 x 3" Short Neck
(Superseded to 90972GS)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7090639

CAPSCREW, 1/4-20 x 1 1/2 Hex Head
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

?35

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 11

0

36

Snapper 7090053

LOCKWASHER, 1/4" Internal Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 12

0

37

Snapper 7090189

WASHER, Int./Ext. Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, Qty 18

0

38

Snapper 7090917

MACHINE SCREW, #10 - 16 x 3/4" Slotted

$

$

Currently unavailable

39

Snapper 7015338

NUT, #10 - 16 Clip

$

$

Currently unavailable

40

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 3 left!

0

42

Snapper 7018773

GASKET

$

$

Not available

43

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, Qty 5

0

45

Snapper 32517

SEAL, Left Hand

$

$

Currently unavailable

46

Snapper 32518

SEAL, Right Hand

$

$

Currently unavailable

47

Snapper 7090944

SCREW, #10-24 x 1/2" FH Machine

$

$

Currently unavailable

48

Snapper 7090945

NUT, #10-24 Acorn

$

$

Currently unavailable

49

Snapper 15349

ADHESIVE SQUARE

$

$

Currently unavailable

50

Snapper 7015813

SPACER

$

$

Currently unavailable

51

Snapper 7032670

SUPPORT, Side
(Superseded to 7032670YP)

$15.99

$

Usually ships in 2-12 days

0
