7060799 - Snapper Sulky Kit Sulky, Riding (Kees Kit# 361700) Parts Diagram

Sulky Kit

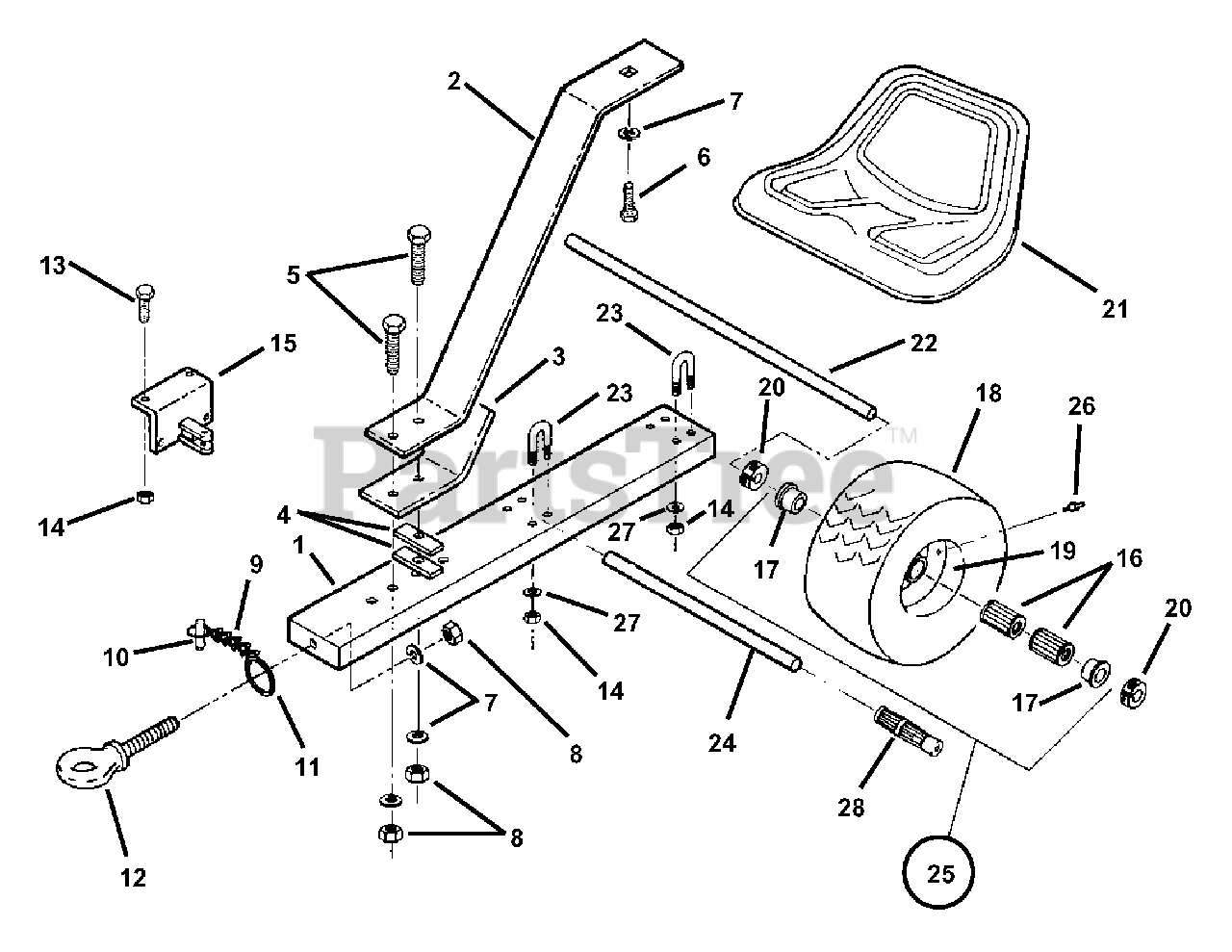

Sulky, Riding (Kees Kit# 361700) Parts Diagram

  • Title

Snapper 7060799

KIT, Sulky

Note: (Includes 1 thru 28) (Was Kees #361700)

$

$

Currently unavailable

1

Snapper 77302

FRAME (with decal)

$

$

Currently unavailable

2

Snapper 7076595

SPRING

$

$

Currently unavailable

3

Snapper 7076596

STIFFENER

$

$

Currently unavailable

4

Snapper 76603

SHIM

$

$

Currently unavailable

5

Snapper 7090543

SCREW, 1/2-13 x 2" Hex
(Superseded to 703817)

Note: Was 76929

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 7090646

SCREW, 1/2-13 x 1" Hex

Note: Was 76928

$

$

Not available

7

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091316

NUT, 1/2-13 Hex, Gr. 5 or B
(Superseded to 703340)

Note: Was 90258

$7.99

$

Usually ships in 2-12 days

0

9

Snapper 76224

CHAIN, #8 Sash (9" long)

$

$

Currently unavailable

10

Snapper 76995

PIN, Quick Release Hitch

$

$

Currently unavailable

11

Snapper 76999

SPLIT RING

$

$

Currently unavailable

12

Snapper 7076602

EYEBOLT, 1/2" Dia. Forged

$

$

Currently unavailable

13

Snapper 7091318

BOLT, 5/16-18 x 3/4" Hex
(Superseded to 704287)

Note: Was 76925

$3.99

$

In Stock, Qty 19

0

14

Snapper 7091298

NUT, 5/16-18 Hex Nyloc (10)
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 13

0

15

Snapper 7076413

HITCH
(Superseded to 7076413YP)

$45.99

$

Usually ships in 2-12 days

0

16

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

17

Snapper 7077312

BEARING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

18

Snapper 7023788

TIRE, 2 Ply Turfmaster
(Superseded to 7023788YP)

Note: Was 77310

$120.99

$

Usually ships in 2-12 days

0

19

Snapper 7077290

ASS'Y, Rim

Note: Was 77311 (incl. air valve & grease fitting)

$

$

Not available

20

Snapper 7077000

CLAMP, Collar
(Superseded to 7077000YP)

$28.99

$

Usually ships in 2-12 days

0

21

Snapper 7077303

SEAT w/Decal

$

$

Currently unavailable

22

Snapper 76607

AXLE

$

$

Currently unavailable

23

Snapper 7076604

U-Bolt (5/16-18 threads)

$

$

Currently unavailable

24

Snapper 76606

FOOT REST

$

$

Currently unavailable

25

Snapper 7076389

ASS'Y, Tire

Note: (includes items 16-19 & 26)

$

$

Currently unavailable

26

Snapper 7076998

FITTING, 1/4-28 Grease
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 76996

GRIP, Foot Rest

$

$

Currently unavailable
