7060802 - Snapper Gas Tank Retrofit Kit Gas Tank Parts Diagram

Gas Tank Retrofit Kit

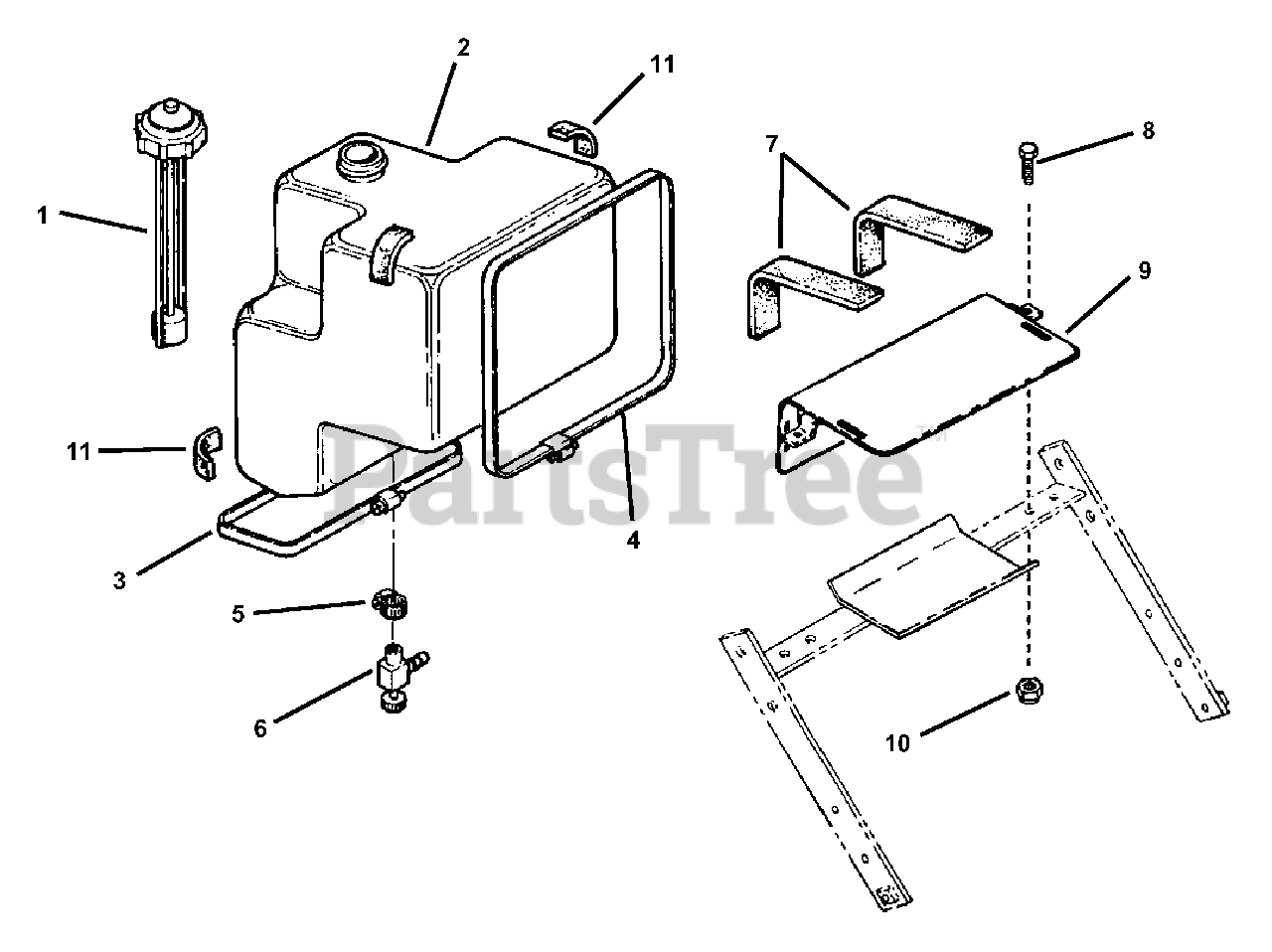

Gas Tank Parts Diagram

  • Title

Snapper 7060802

KIT, Gas Tank Retrofit (4 Gallon)

Note: (Includes items 1 thru 11)

$

$

Currently unavailable

1

Snapper 7076535

GAS CAP w/Gage
(Superseded to 7076535YP)

$

$

Not available

2

Snapper 7076393

GAS TANK w/Decals

Note: Was 77282

$

$

Not available

3

Snapper 7076532

TANK BAND, Short

$

$

Not available

4

Snapper 7076563

TANK BAND, Long

$

$

Not available

5

Snapper 7076966

CLAMP, Hose

$

$

Not available

6

Snapper 7076491

SHUT-OFF, Gas Line

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 7076537

SADDLE PAD

$

$

Not available

8

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7076392

SADDLE, Retrofit

$

$

Currently unavailable

10

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7077345

PAD, Gas Tank
(Superseded to 7077345YP)

$3.49

$

Usually ships in 2-12 days

0
